1. Overview
Thank you for selecting the NSC1210D series common positive solar charge controller. The NSC1210D
controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique.
The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street
light, solar garden lamp, etc. The features are listed below :
3-stage intelligent PWM charging : Bulk, Boost/Equalize, Float
•
Support 3 charging options : Sealed, Gel, and Flooded
•
LCD display design, dynamically displaying device's operating data and working condition
•
Multiple load control modes
•
Energy statistics function
•
Battery temperature compensation function
•
Extensive Electronic protection
•

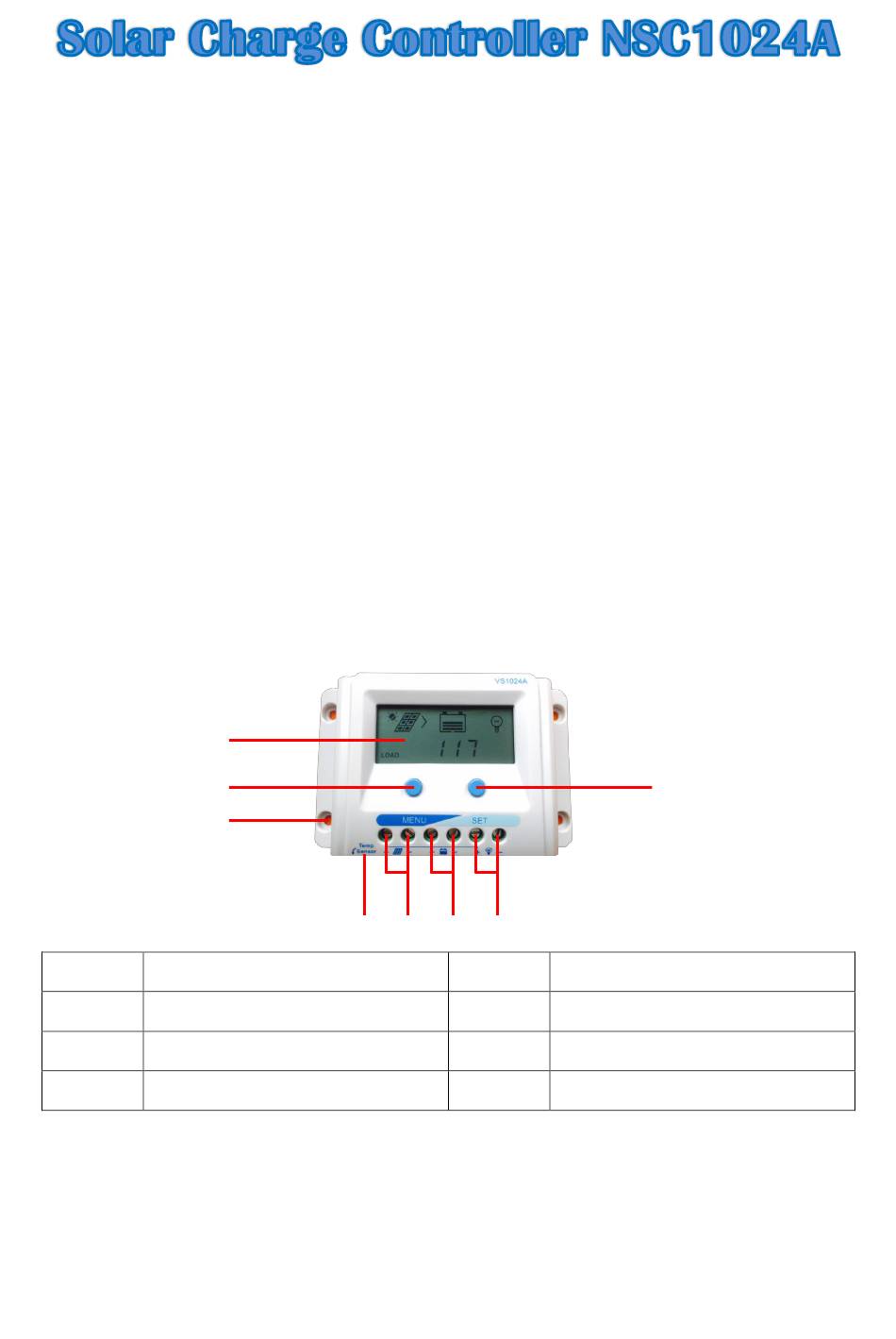

2. Product Features
1 LCD
2 MENU Button
3 Mounting hole size
4 RTS* Port
*Accessory : Remote Temperature Sensor
Acquisition of battery temperature for undertaking temperature compensation of control parameters, the standard
length of the cable is 3m (length can be customized). The RST300R47K3.81A connects to the port (4") on the
controller.
NOTE : Unplug the RST, the temperature of battery will be set to a fixed value 25ºC
1
2
3
4 5
4.5
Ø
6 7
5 PV terminals
6 Battery Terminals
7 Load Terminals
8 SET Button
8
