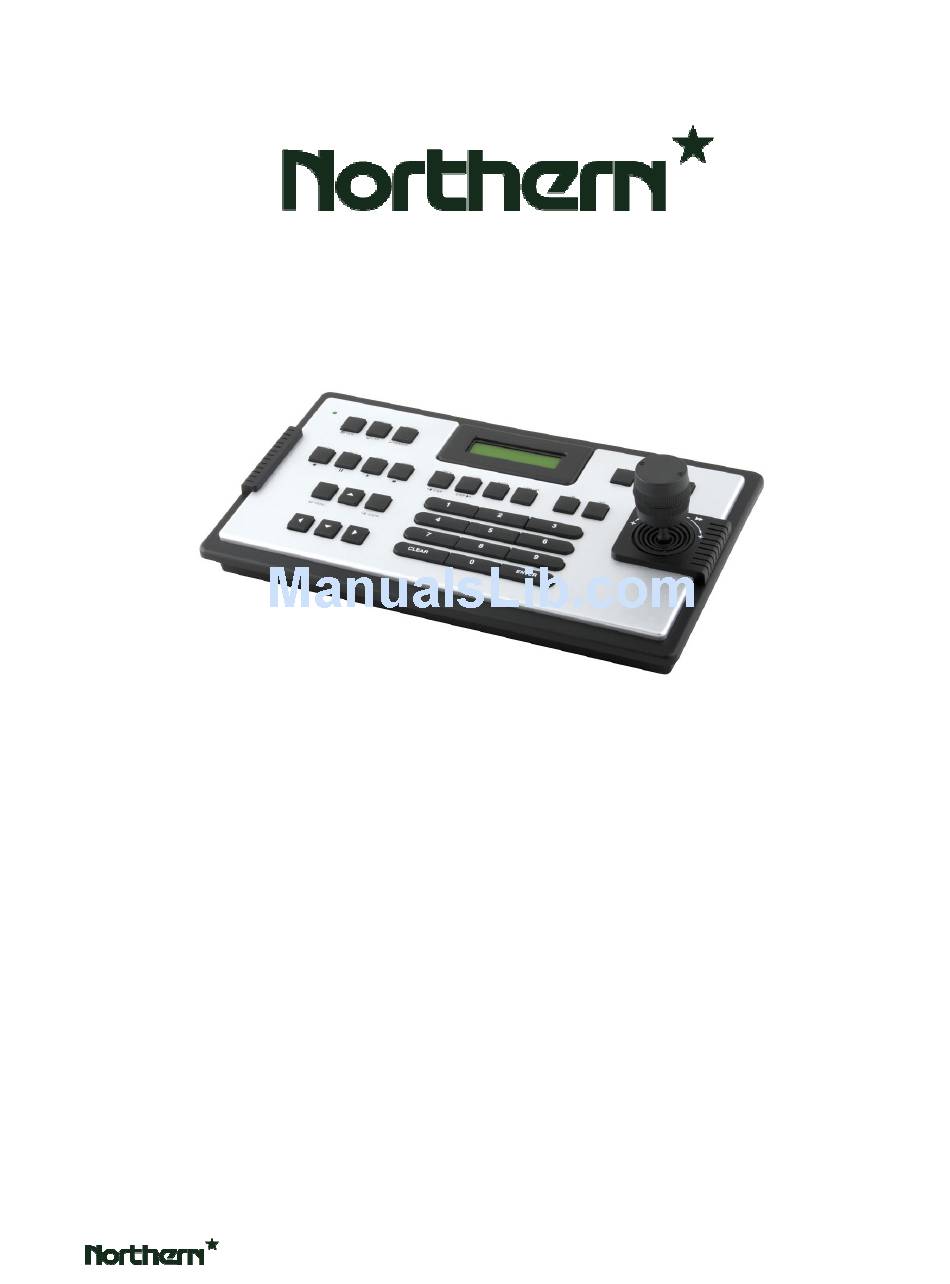

- Page 1 Model: PTZKBD3 3-Axis Speed Dome Controller Operation Manual Version: 1.1 Please read this operation manual carefully before using this device. 3625 Cincinnati Avenue, Rocklin CA 95765 888-874-3336 www.northernvideo.com...
-
Page 2: Table Of Contents
INDEX █ █ █ █ Summary ----------------------------------------------------------------------------------------2 -------------------------------------------------------2 Introduction of the Keyboard Panel -------------------------------------2 Sketch of the Front Panel and Description of Buttons █ █ █ █ Rear Panel --------------------------------------------------------------------------------------4 █ █ █ █ Setting of the Keyboard ----------------------------------------------------------------------4 █ █ █ █ Operation of the Keyboard ------------------------------------------------------------------6 █... -
Page 3: Summary
█ █ █ █ Summary The keyboard controller is used for terminal receivers such as speed dome cameras. ◆ It can be used for operating and setting up the speed dome camera. The controller can also be used to control the terminal receiver to for controlling pan/tilt, lens and etc. - Page 4 8. TELE: Use to achieve a telescopic view. 9. FAR: To manually focus far. 10. NEAR: To manually focus near. 11. CAM/ID: Selects the address of the Speed Dome. 12. AUTO: To control auto-horizontal rotation for pan/tilt. 13. OPEN: To open iris. 14.
-
Page 5: Rear Panel
█ █ █ █ Rear Panel (Figure 2) Figure 2 Power Switch: ON/OFF. Power input connector: input DC12V power. Communication connector RS485. Communication connector RJ45. Communication connector for DVR. 6. Mode : Used to set the protocol in use and the baud rate of communications. Communication connector RS232. - Page 6 Switching control between speed dome and multiplexer: The controller can be operated in two ◆ modes: Speed Dome and Multiplexer. When power supply is on it is operated on the default mode, namely, the Speed Dome. Press [F3] to make switch between two modes. When it is under the mode of the Multiplexer, you can control it via “Address Box”.
-
Page 7: Operation Of The Keyboard
█ █ █ █ Operation of the Keyboard 1. Select Address of the Speed Dome Camera [ CAM]+[N]+[Enter] ： Display: Current Cam ID: 001 Description N –– No. of camera from 0 to 255 ： Function: Select the address of the camera to be controlled. When the value N is in conformity with the address of the Speed Dome Camera, it will be under control. - Page 8 will be valid however all numbers of preset points afterward and their speed and dwelling time shall be set as 0 automatically. After tracks are edited, press OFF to store and exit while push the joystick to exit without storage. ◆...
- Page 9 14. Control the Vibration Correction of the Camera: [ON]/[OFF] 15. Auxiliary Control of the Camera: By combination of [F1] and [ON], [OFF] buttons, you can set some data of the camera, and functions are listed as follows ： 16. Use the Joystick to control the speed dome camera: You can use the speed joystick to control the Pan/Tilt direction and speed of the speed dome randomly.
- Page 10 Note: system initial password is 1111. Operation: 1+[ENTER]+1+[ENTER]+1+[ENTER]+1+[ENTER] Menu control ◆ Press to select the menu you want, Press F2, to enter the sub menu, Press CAM/ID, to return the last menu Press ON or OF , to adjust the parameters. 16-frame pictures ◆...
-
Page 11: Installation And Connection
█ █ █ █ Installation and Connection: Attention: Please read the operation manual of the keyboard and the speed dome carefully before connecting wires. Any incorrect connections can cause permanent damage to the device. When connecting wires, first switch off the power supply of all devices. -
Page 13: Technical Specifications
█ █ █ █ Technical Specifications： Communication between Speed Dome Camera and Controller: Port to multi-port and half duplex function. ◆ Communication connector: RS-485. ◆ Baud Rate of Communication: Four baud rates i.e. 2400bps, 4800bps and 9600bps. ◆ Distance of Communication: 1200m in maximum ◆...
