The GEMLUX
Congratulations on your new Bluewater Internally-Rigged Outrigger set from GEMLUX!
These are assembled in several sections for your storage and transportation convenience.
This document will help you get them set up and ready for fishing. Don't worry, it's easy!

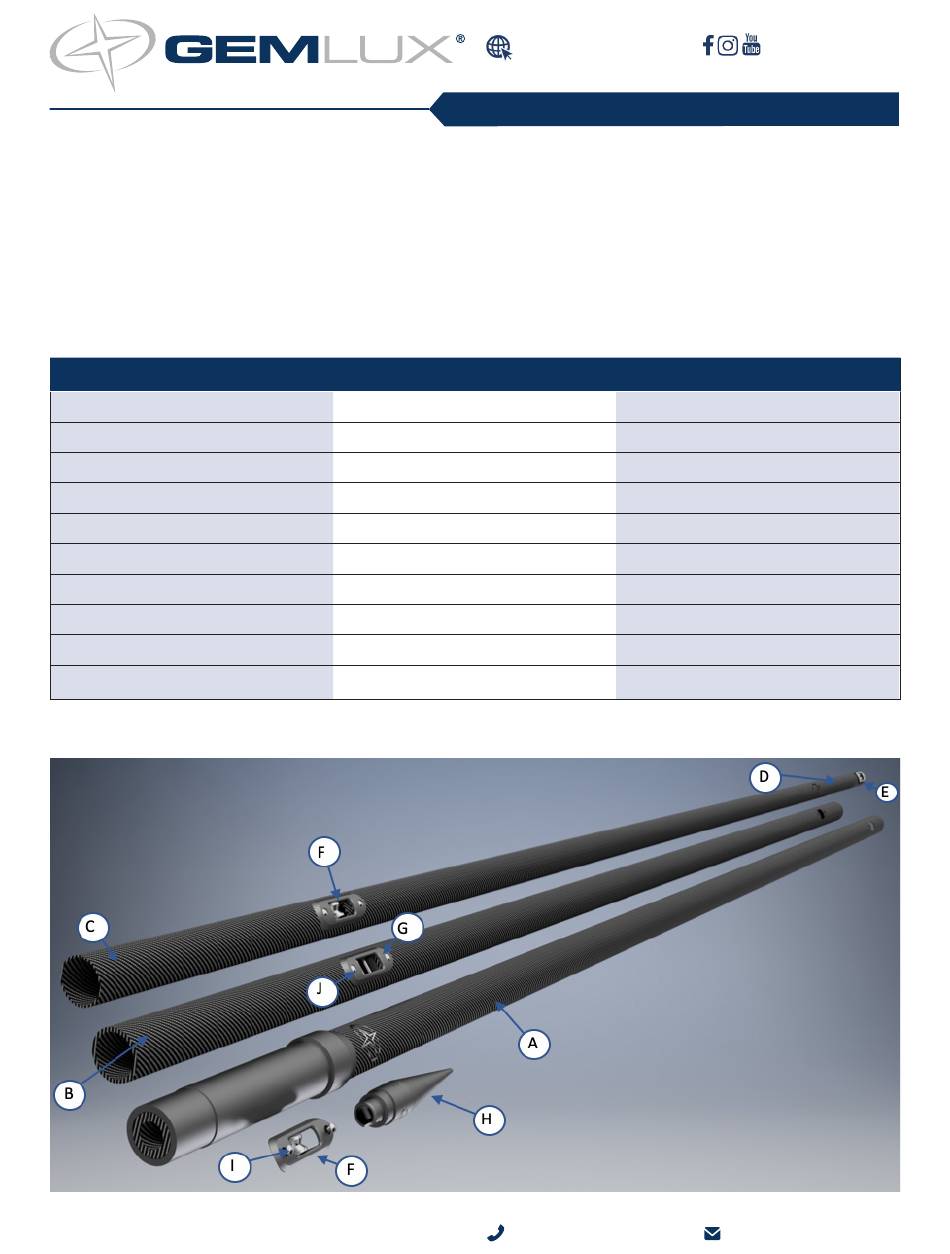

1. Inventory: Inside the box are enough pole sections to make two fully-assembled outrigger
poles. The table and diagrams below only show parts for one pole, for clarity.
Part Identifier
A
B
C
D
E
F
G
H
I
J
Tag your photos with #gemluxfishing
Internally Rigged Outriggers
®
Part Description
Base Pole
Middle Pole
Large Tip Pole
Small Tip Pole
Small Roller Guide
Large Roller Guide
Double Pin Guide
Pole Tip
Short Screw
Long Screw
www.gemlux.com
Quantity (per outrigger)
1 (800) 874-4506
/gemluxfishing
1
1
1
1
1
2
1
1
6
2
sales@gemlux.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GEMLUX IR-DK-18-B-O3
Summary of Contents for GEMLUX IR-DK-18-B-O3
- Page 1 Internally Rigged Outriggers ® Congratulations on your new Bluewater Internally-Rigged Outrigger set from GEMLUX! These are assembled in several sections for your storage and transportation convenience. This document will help you get them set up and ready for fishing. Don’t worry, it’s easy! 1.
- Page 2 /gemluxfishing ® The GEMLUX Internally Rigged Outriggers The Base Pole (A) is identified by the collar and plastic adapter that goes into the outrigger base. The two smallest poles that are for the tip end, Large Tip Pole (C) and Small Tip Pole (D) are nested together, and the other single pole is the Middle Pole (B).
- Page 3 /gemluxfishing ® The GEMLUX Internally Rigged Outriggers b. Slide the Small Tip Pole (D) out of the Large Tip Pole (C) until their slots line up. c. Install the loose Large Roller Guide (F) from the parts bag into the slots in the Tip Poles (C and D). The end with the roller is installed toward the base, with the open end toward the tip.
- Page 4 /gemluxfishing ® The GEMLUX Internally Rigged Outriggers b. Slide the assembled Tip Poles (C and D) into the Middle Pole (B) until the slots line up between the Large Tip Pole (C) and Middle Pole (B). c. Install the Large Roller Guide (F) into the aligned slots in the Middle Pole (B) and Large Tip Pole (C).
- Page 5 /gemluxfishing ® The GEMLUX Internally Rigged Outriggers b. Slide the Middle Pole (B) into the Base Pole (A) until the slots line up. c. Install one Long Screw (J) through the base end of the Double Pin Guide (G), and one Short Screw (I) through the tip end of the Double Pin Guide (G).
