  • Page 1 SHADE I NST AL LATI ON GUI DE W W W . GEM L UX. COM / SHADE...

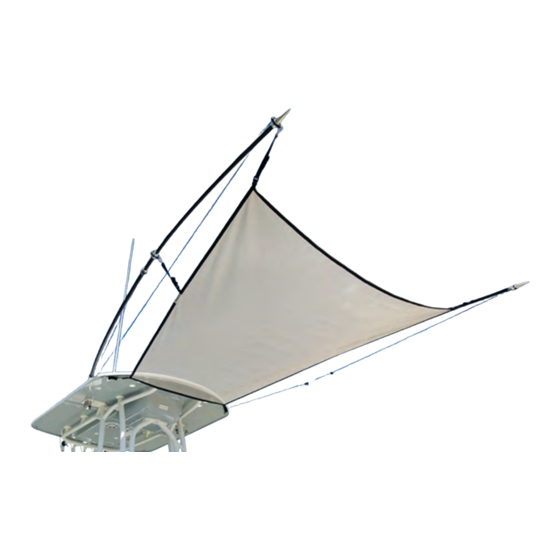

  • Page 2 T a k i n g t h e b o a t o u t w i t h y o u r f r i e n d s o r f a m i l y f o r t h e d a y ? G e m l u x ® S h a d e h a s g o t y o u c o v e r e d , l i t e r a l l y .
  • Page 3 SHADE INSTALLATION GUIDE STEP 1 Start with your outriggers collapsed and in the straight back position. Below shows an eye strap as another attachment point. STEP 2 Attach the straps to your attachment points at the t-top and to your poles. In this case a Velcro strap was attached to a hand rail located on the outside edge of the t-top.
  • Page 4 Start attaching your canvas to the straps using the provided buckles. Widest portion of the shade attaches to guide 1, middle strap to guide 2 and the narrowest part to the t-top. We recommend leaving all of the straps long as this aids in the ease of deployment.
  • Page 5 We recommend snugging up the t-top strap first to evaluate the position of the shade. If the gap between the shade and t-top is too large, collapse the poles and retighten. If the shade overlaps the t-top too much, extend the poles and retighten.
  • Page 6 STEP 10 Once you have snug both straps on the t-top and verified the location front and back of the shade, start to snug up the rest of the straps. The goal is now to eliminate the slack port to starboard.
