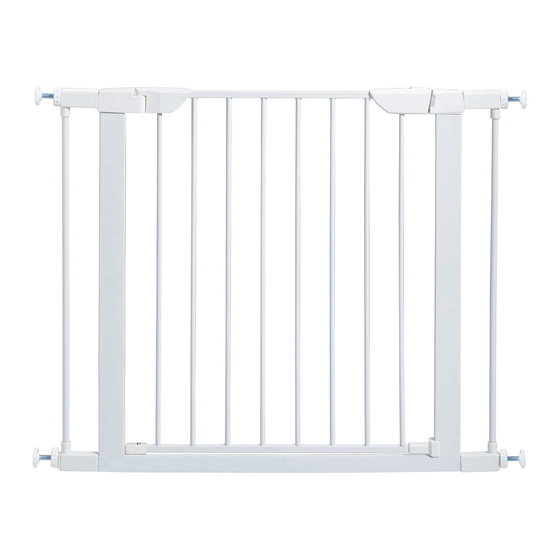

Assembly Instructions for Model Numbers 2929SW, 2939SW, 2929SG, and 2939SG
IMPORTANT INFORMATION
Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case of
return or exchange, failure to return product in similar condition as received could result in limited reimbursement. Please
save sales receipt as proof of purchase for warranty purposes. Check to ensure you have all the parts below. If you
discover any parts are missing, immediately call our toll-free service helpline at 1-800-428-8560 (Monday - Friday
9 a.m. to 4 p.m. EST) or at info@midwesthomes4pets.com. To protect the finish of your gate use only mild,
non-abrasive cleaners and water. Any course scrubbing or abrasive materials could damage the finish.
IMPORTANT: You will notice a GAP between the door latch and the gate frame prior
to assembly. THIS IS NOT A DEFECT. Your gate is a pressure-mounted gate and
this gap will disappear once the gate is properly installed and tightened in the
opening. To help with installation, the gate door is zip tied to the frame. For ease of
installation, it is recommended that you wait to cut the zip tie until installation of the
gate is close to complete, ideally at Step 7.
WARNING: This gate is ONLY FOR USE WITH PETS.
This gate is NOT to be used for children. Do not place on top of stairs.
•
Keep the instructions for future reference. In the future, if additional extensions are purchased, this instruction
manual will be needed.
•
Improper installation could result in gate becoming unstable or dislodged from the opening.
•
Ensure the gate is attached between two clean, structurally sound surfaces.
•
Do not remove the safety notices; you may not always be the user.
•
Always make sure the extensions are securely attached to the gate before using.
•
Regularly check tension knobs and bolts to make sure the gate is securely in place.
•
Never use more than two extensions per gate! Never install two extensions on the same side of the gate.
•
To prevent falls never use at top of stairs.
•
Use only with locking mechanism securely engaged.
•
Do not use if any components are missing or damaged.
•
Keep small parts away from pets and children.
Read and follow all instructions carefully.
midwesthomes4pets.com
Muncie, Indiana 47308
Assembly and Demonstration Video
800 428 8560
P .O. Box 1031
OK
1
Advertisement
Table of Contents
Related Manuals for Mid-West Pet Gate 2929SW
Summary of Contents for Mid-West Pet Gate 2929SW
- Page 1 800 428 8560 midwesthomes4pets.com P .O. Box 1031 Muncie, Indiana 47308 Assembly Instructions for Model Numbers 2929SW, 2939SW, 2929SG, and 2939SG IMPORTANT INFORMATION Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case of return or exchange, failure to return product in similar condition as received could result in limited reimbursement.
- Page 2 PARTS IDENTIFICATION A Gate Frame a. Top Plastic Insert (2) b. Bottom Plastic Insert (2) B Threaded Spindle Bolt with Plastic Pad and Adjustment Wheel (4) C Wrench D Screws (4) E. Drywall Anchors (4) F Mounting Cups (4) G Adhesive Mounting Pads (4) H 3”...
- Page 3 ASSEMBLY INSTRUCTIONS For Installation Without Extensions 1. Locate the 4 Threaded Spindle Bolts. Before you begin, Plastic Pad turn the Adjustment Wheels clockwise until they are close to the Plastic Pads. NOTE: The Adjustment Wheel should not touch the Pad. If it does it could get stuck. Adjustment Wheel 2.
- Page 4 If you intend to use the optional drywall anchors, drill a pilot hole and insert the anchors into the center of each marked circle. (Refer to illustration a & b for use with anchors and illustration c for use without drywall anchors.) NOTE: The Adhesive Mounting Pads are included only for positioning the mounting cups and must be used in...
- Page 5 NOTE: If necessary, the wrench is provided for final tightening of all tension knobs. 6. To fasten your gate firmly in the opening or doorway, start by turning the BOTTOM Adjustment Wheels first. Continue to turn the bottom Adjustment Wheels counter clockwise until the Adjustment Wheels are firmly against the frame.
- Page 6 To Open the Gate 1. Pull the release button back with your thumb. 2. Lift up on the door panel. 3. Swing open in either direction. To Close the Gate 1. Release the door within ten inches of the frame and it will close and latch automatically.
- Page 7 Troubleshooting If the gate does not stay closed: 1. The upper latch set is not properly adjusted. SOLUTION: Adjust the upper tension knobs by turning them counter-clockwise to release tension or clockwise to increase tension. Also, ensure that the upper latch button engages securely when the gate swings closed and that it can be released properly when the release button is pushed.
