DC 9V
This is the main power input for the EFX MK-VI. The EFX MK-VI requires a DC9V power supply.
The current draw is approximately 250mA at DC9V (Center Negative).

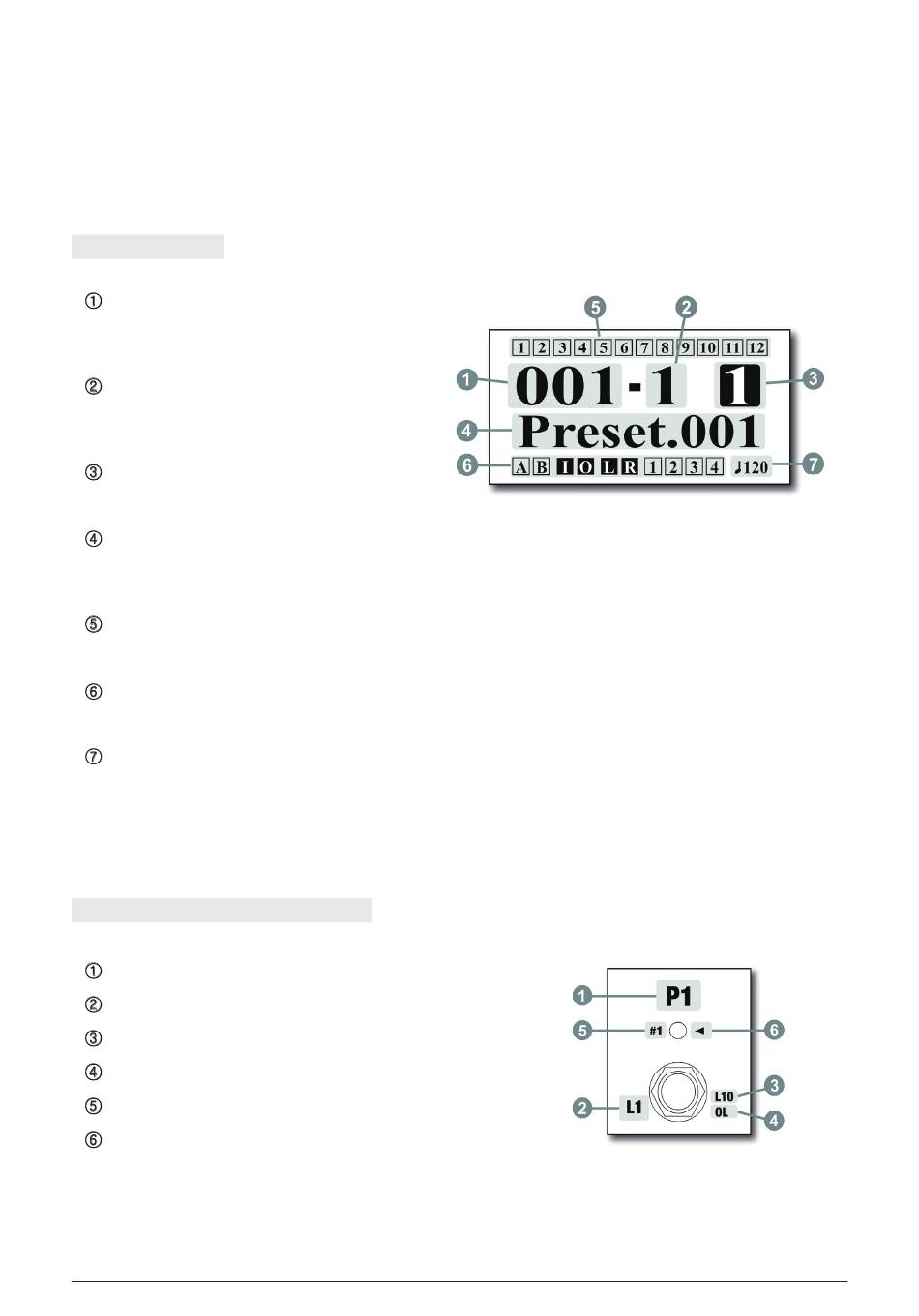

1.6 LCD Display
Bank/song number
This area indicates a current bank/song
number.
Preset number
This area indicates a current preset number
in the bank/song.
Page number
This area indicates a current page number.
Title
This area indicates the preset title of the current preset. Also this area indicates the switch title, volume or
BPM for a short time, when the switch is pressed.
Audio loops status
This area indicates which of the 12 audio loops are currently active.
Volume-controllers, buffers, outputs and function-switches status
This area indicates which of the volume-controllers, buffers, outputs and function-switches are currently active.
BPM
This area indicates the currently operating BPM.

1.7 Characters around Switch

Switch function assigned to page 1
Switch function assigned to page 2.
Switch function assigned to page 3.
Switch function assigned to page 4.
Switch unique number used to set switch function.
Switch function used in setup mode.
