Summary of Contents for Roadstar TVL-151M-201M

  • Page 1 TVL-151M-201M...

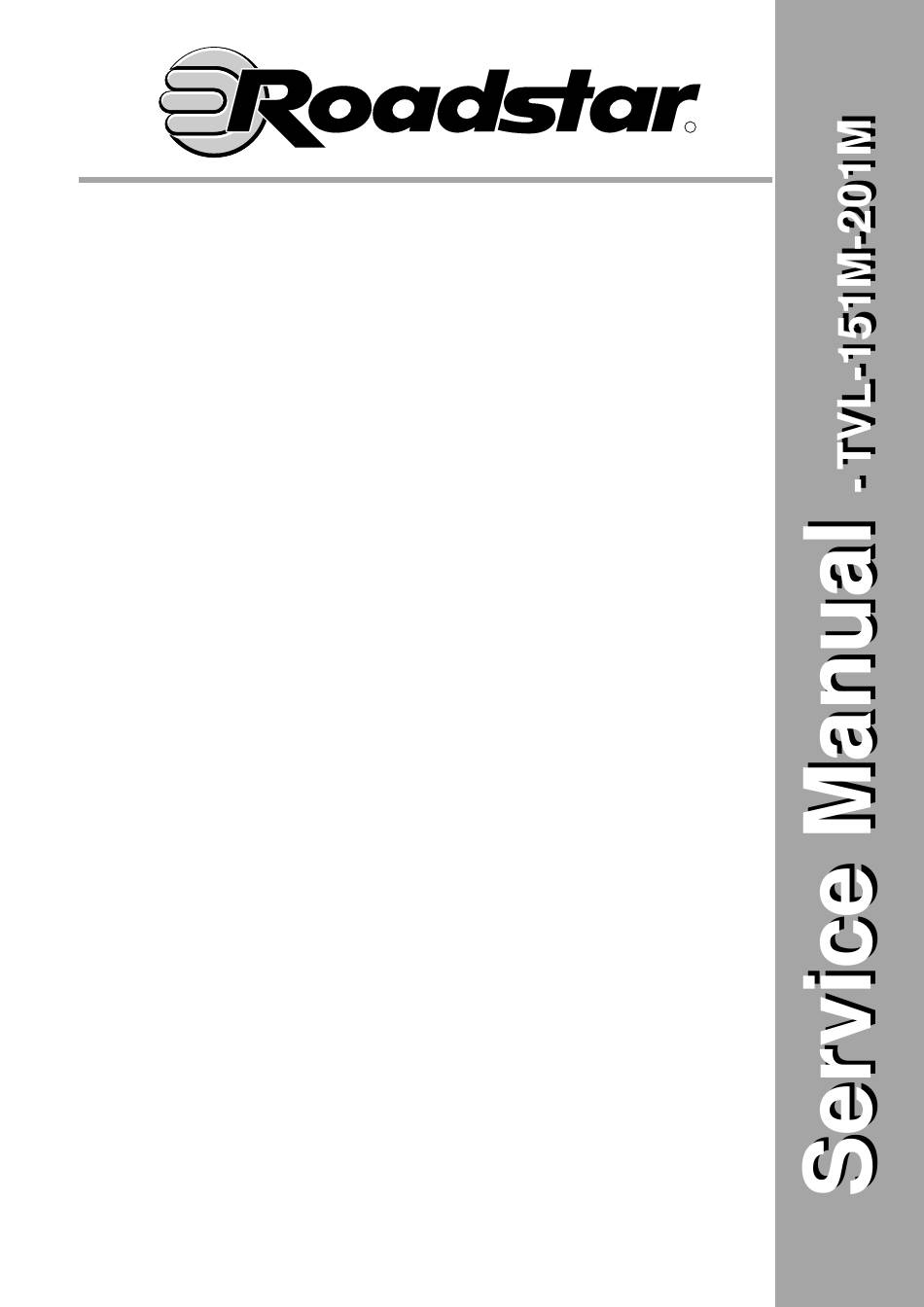

  • Page 2 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- SERVICE MANUAL TVL-151M TVL-201M ----------------------------------------------------------------------------------------------------------------------...

  • Page 3: Table Of Contents

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- - Contents 1. Detail Specification 1-1. PANEL 1-2. IN/OUT JACK 1-3. User Interface Specification 1-4. Electrical Specification 1-5. Available PC Input Mode & Video Timing Standard 1-6. OSD Specification ( America ) 1-7. OSD Specification ( *** ) 1-8.

  • Page 4: Detail Specification

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1. Detail Specification 1-1. LCD Panel ¢ˆ LG-Philips LCD Panel : LC151X01-A3 : 15.1"( Panel Link Type ) LC201V1-A3 : 20.1" 1-2. In/Out Jack ¢ˆ Power Supply Input : Din Jack ¢ˆ Antenna Input : 75ohm Unbalanced Din-Jack Type ¢ˆ...

  • Page 5: User Interface Specification

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1-3. User Interface ¢ˆ 7 Panel Key ¢ Power , Menu , Select , Vol Up , Vol Down , CH Up , CH Down ¢ˆ 3 Color LED ¢ Red : Stand by Condition ¢...

  • Page 6: Electrical Specification

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1-4. Electrical Specification ¢ˆ TV Color Standard : PAL,SECAM ( NTSC System : NTSC ) ¢ˆ TV Sound Standard : B/G,I,D/K ( NTSC System : M ) ¢ˆ TV Stereo Sound : NICAM Stereo , A2 Stereo ( NTSC System : BTSC ) ¢ˆ...

  • Page 7: Available Pc Input Mode & Video Timing Standard

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1-5. Available PC Input Mode & Video Timing Standard Resolution Horizontal Vertical Clock Time Remarks ( nsec ) ( KHz ) Pol. ( Hz ) Pol. ( MHz ) 39.722 31.469 70.087 25.175 31.469 59.940 25.175 39.722...

  • Page 8: Osd Specification ( America )

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1-6. OSD Specification ¢ˆ PICTURE ¡ CONTRAST ¡ BRIGHTNESS ¡ COLOR TEMPERAT ( PC input mode only ) ¡ STANDARD , 6500K , USER, RESET , 9300K ¡ SHARPNESS ( Not Available PC MODE ) ¡...
  • Page 9 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- ¢ˆ FUNCTION ¡ TRACKING ( PC input mode only ) ¡ AUTO TRACKING ¡ CLOCK ¡ PHASE ¡ INFORMATION ¡ TUNING ( TV input mode only ) ¡ SORT ¡ AUTO TUNING ¡ MANUAL TUNING ¡...

  • Page 10: Factory Mode Osd Specification

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 1-8. Factory Mode OSD Specification ¢ˆ How to use Factory Mode ¡ Press Power & Select Key in Panel Control key, and go to Factory mode. ¢ˆ Factory ADJ ¡ CLOCK DELAY ¡ AUTO COLOR GAIN ¡...

  • Page 11: Adjustment Of Clock Delay

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 2. Adjustment Instruction ( Factory ADJ ) 2-1. Adjustment instruction of CLOCK DELAY 1. Adjustment item : Adjust the dispersion happening in the time of matching ASSY-MAIN and LCD PANEL . (As the contact status of the CONNCETOR for connecting LCD PANEL, dispersion happens ) 2.

  • Page 12: Adjustment Of Auto Color Gain

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 2-2. Adjustment Instruction of AUTO COLOR GAIN 1. Adjustment Item : Function of automatically setting ADC LEVEL of AD9884 with ANALOG RGB ( D-sub ) signal . ( WHITE BALANCE & CONTRAST adjustment ) 2.

  • Page 13: Setting Instruction Of Option

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 2-3. Setting Instruction for OPTION 1. OPTION : - X2 - BYPASS => Using 6 BIT PANEL => Back-Light Control of Inverter ( Bright Max : LOW , Min : HIGH ) 2. OPTION : - X2 - INVERT =>...

  • Page 14: Adjustment Instruction Of Vpc3230

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 2-4. Adjustment Instruction of VPC3230 1. Adjustment item : Function of adjusting DEFAULT VALUE of VPC3230 DEVICE. 2. Adjustment process : After assembling the SET, do the adjustment . 3. Preliminary adjustment 1) Connect Outlet of VIDEO PATTERN GENERATOR to the input terminal of CVBS. 2) TEST PATTERN : Select COLOR BAR PATTERN 3) Turn on the SET, and then select in VIDEO MODE.

  • Page 15: Inspection Specification

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3. Inspection Specification 3-1. Input Specification of LCD PANEL ( Total Inspection ) Inspection Procedure Standard Remark Turn off the power of JIG ( check the power of JIG ) Connect BACK LIGHT CONNECTOR of LCD PANEL to JIG Connect PANEL Connector of JIG to LCD PANEL Turn on the power of JIG ¡...
  • Page 16 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3-2. Inspection Specification of INVERTOR ( Total inspection ) Insepction procedure Standard ”æ Turn off the power of JIG ( check the power of JIG ) Back-Light Con' Connect 2P CONNECTOR in the upper part of JIG to CN3 Back-Light Con' Connect 2P CONNECTOR in the lower part of JIG to CN2 Inverter Con'...
  • Page 17 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3-3. Inspection specification of ASSY-CONTROL Inspection procedure standard Remark Turn off the power of JIG ( check the power of JIG ) Connect 7P Connector with JIG Check the tight insertion of TACT SW Tight insertion Turn on the power of JIG.
  • Page 18 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- Operating procedure OSD specification => 1. POWER KEY setting POWER ON PICTURE PICTURE SOUND CONTRAST CONTRAST TREBLE 2. MENU KEY setting BRIGHTNESS BRIGHTNESS BASS SHARPNESS SHARPNESS BALANCE COLOR COLOR S.MODE 3. SELECT KEY setting 4.

  • Page 19: Inspection Of Assy-Main

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3-4. INSPECTION SPECIFICATION OF ASSY-MAIN 3-4-1 INSPECTION IN TV MODE 1. Required tool : PM5518 ( RF PATTERN GENERATOR – built in SAP function) , simple JIG 2. Preliminary inspection : 1) set up PM5518 : RF FREQ' : 55.25MHZ , PATTERN : COLOR BAR ,SOUND : STEREO ( 3KHZ/1KHZ), SYSTEM : PAL/NTSC - 6 (REAR PANEL) RF GAIN :60dBuV 3.
  • Page 20 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3-4-2. Inspection item in VIDEO MODE 1. Required tool; : PM5518 ( PATTERN GENERATOR ) , VTR ( NTSC ) , SCOPE , £ JIG1 , 2. Preliminary item : 1) set up PM5518 : RF FREQ' :55.25MHZ , PATTERN : COLOR BAR , SOUND : STEREO ( 3KHZ/1KHZ ) SYSTEM : PAL/NTSC - 6 ( REAR PANEL ) RF GAIN : 60dBuV 3.
  • Page 21 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 3-4-3. Inspection in PC MODE 1. Inspection item : in each MODE setting PC , inspect the status 2. Preliminary item : 1) MSPG-925L Setting - Pattern : Select 1DOT W/BLACK ( PATTERN NO : 28 , MODEL NO.: 21 ) 3.

  • Page 22: Block Diagram

    SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 4. BLOCK DIAGRAM I I C -BU S 24. 576M H z TUNER SI F I I C -BU S PANEL PO W ER 2M SRAM x2 VPC3230 TV_C VBS S-VH S Y-I N FDS4435 14.
  • Page 23 SERVICE MANUAL TVL-151M / 201M ---------------------------------------------------------------------------------------------------------------------- 78L05 STD 5V REGULATOR 12 Vcc 5 Vcc 3. 3 Vcc D C JAC K FDS4435 LM2596 RC1587M33 FET SW REGULATOR REGULATOR KA7808R 8 Vcc REGULATOR SI F L SP AV1_AU D I O _I N TDA8542ATSSO MSP34X0G UND AMP...
  • Page 24 BLOCK DIAGRAM (LCD 15.1" TV) H , V SYN C I C 362 (p3) PD A[0. . 23] D C LKA I C 601 (p6) 3.3V 74F14SC M X88L84AEC 3.3V 3.3V (p3) I N PUT O U TPUT D -SU B 3.3V RG B[0.
  • Page 25 5. 15.1" Circuit Diagram IC801 KIA78DL05F C803 C802 47uF/16V POWER 100nF CONNECTOR (DC 12V) JA801 F801 L801 PDJ005 R251 010 BEAD C806 IC802 C820 C804 C805 220uF/16V(DIP) FDS4435C 100nF C801 100nF 100nF 12Vcc R801 220uF/16V(DIP) R802 22K Q801 POWER BC848 5Vcc 3.3Vcc IC804...
  • Page 26 CN01M WAFER(5P) TP001 TP002 R001 1K IC001 TP003 C001 TP004 R002 R003 KS88C6348 2.7K 2.7K TP005 BLON IR IN BLON R004 10K R005 100 Q001 LED-G BC848 R006 R007 10K SCART_ID R008 Q002 LED-R BC848 R009 R010 R011 R012 SCART ID A_RESET AV_RESET R013 1K...
  • Page 27 5Vcc IC361 C361 C360 LD1117DT33 C362 100nF 10uF/16V 100nF C363 C364 C365 C366 C367 C368 10uF/16V 10uF/16V 100nF 100nF 100nF 100nF L360 10uH DDC_SCL DDC_SDA L361 DSUB_ID 10uH L362 VPLL 10uH C369 3.3Vcc 10uF/16V C370 C371 C372 C373 C374 C375 C376 C377 100nF...
  • Page 28 TTX_H_SYNC TTX_H_SYNC TTX_V_SYNC TTX_V_SYNC L301 R304 100 PDA21 5Vcc 10uH C301 C302 C303 C304 R305 100 PDA22 47uF/16V 220nF 1.5nF 390pF PDA19 PDA20 C305 PDA[8..15] R301 2.2nF Q301 BC848 C306 470nF C307 C308 C309 TTX_CVBS 6pF/NPO 47nF 68nF R307 R308 X301 C310 20.25MHz...
  • Page 29 12Vcc CS01 CS02 P2.0/PWM P1.5 100nF 10uF/16V P2.1/PWM0 P1.4 TTX_50 RX01 RZ01 P2.2/PWM1 TTX_49 RX02 RZ02 P2.3/PWM2 RZ03 P2.4/PWM3 P1.3 ICS1 P2.5/PWM4 P1.2 CX12 TEA5114A SCART_R 100nF CS03 P2.6/PWM5 P1.1 QS02 470nF RS01 RGB_SW EXT_R ROUT CX01 RS10 3.3K BC848 P2.7/PWM6 P1.0 RCON...
  • Page 30 MD[0..31] C602 R606 MA[0..10] TP601 TP602 TP603 LDTG LVSYNC LHSYNC GNDP GOUT1 GNDP MD15 MD15 GOUT0 RA[0..7] MD14 R607 MD14 LDTG MD13 8P4R-100 MD13 LVSYNC MD12 MD12 LHSYNC MD11 MD11 MD10 R608 MD10 8P4R-100 VDDP VDDP C603 C604 C605 C606 C607 C608 C609...
  • Page 31 MD[0..31] 3.3Vcc 3.3Vcc C701 C702 C703 C704 C705 C706 C707 C708 C709 C710 C711 C712 C713 C714 10uF/16V 100nF 100nF 100nF 100nF 100nF 100nF 10uF/16V 100nF 100nF 100nF 100nF 100nF 100nF MD15 MD16 MD31 DQ15 DQ15 MD14 MD17 MD30 DQ14 DQ14 VSSQ VSSQ...
  • Page 32 CN91M WAFER(6P) TP901 RA[0..7] GA[0..7] BL_BRI TP902 BLON L901 TP903 BEAD 12Vcc C907 100nF C904 C905 LVDS_VCC PVCC C903 100nF TP904 100nF C906 C902 22uF/16V 22uF/16V 100nF CN92M 125HR-20MT PVCC2 AGND TX2+ RX2+ TX2- RX2- C909 100nF AVCC TX1+ RX1+ TX1- RX1- AGND...
  • Page 33 5Vcc 5Vcc L201 C202 C203 AV_RESET 10uH 100nF 100pF C201 R202 R201 R203 10uF/16V SIF_IN R204 C204 470nF CVBS TV_CVBS AUDIO L202 R205 EF-1T2012-330JT CN21M R206 JA202 Harness 10Pin PJ6054B MAIN_R C205 STANDBYQ DACA_L L203 EF-1T2012-330JT ADR_SEL VREF2 RGB_SW D_CTR_OUT0 DACM_R R207 D_CTR_OUT1...
  • Page 34 8Vcc L251 BEAD C252 C251 220uF/16V(DIP) IC251 100nF TDA8542AT R251 Ver B6 180K/B8 200K R252 CN25M 100K WAFER(4P) R253 C253 1uF/50V MAIN_R INR - OUTR - RGND INR + OUTR + C254 INL + 47uF/16V LGND R254 C255 OUTL + 1uF/50V MAIN_L INL -...
  • Page 35 5Vcc RM01 FRP-3051 RC01 RC02 100nF CN01C Harness 5Pin IR_IN RC08 5Vcc LED-R LED_R LED-G LED_G DL01 SAM5270 RC09 CN03C RC03 RC04 RC05 RC06 RC07 Harness 3Pin 2.2k 1.3k KEY_IN POWER SW02 SW04 SW03 SW06 SW05 SW07 JTP1280A JTP1280A JTP1280A JTP1280A JTP1280A JTP1280A...
  • Page 36 TU01 TCPQ9091PD27D CT01 100uF/16V CT02 RT01 RT02 CN21T WAFER(10PIN) Title 15.1" LCD TV ¯ ´ ¿ ¯ ‰”¯‚ Size Document Number TUNER V0.6 Date: Tuesday, November 13, 2001 Sheet...
  • Page 37 IC801 KA78L05AD C803 C802 47uF/16V 100nF JA801 F801 L801 PDJ005 R251 010 BEAD C806 IC802 C804 C805 220uF/16V(DIP) FDS4435C C801 100nF 100nF Vcc_SW R801 220uF/16V(DIP) DC 15V R802 22K Q801 POWER BC848 5Vcc 3.3Vcc IC804 IC803 LM2596S-5.0 L802 BEAD RC1587M33 Vcc_SW L803 BEAD L804...
  • Page 38 CN01M WAFER(5P) R001 1K IC001 C001 R002 R003 KS88C6348 2.7K 2.7K BLON IR IN BLON R004 10K R005 100 Q001 LED-G BC848 R006 R007 10K SCART_ID R008 Q002 LED-R BC848 R009 R010 R011 R012 SCART ID A_RESET AV_RESET R013 1K DSUB_ID D-SUB ID PC SEL...
  • Page 39 5Vcc IC361 C361 C360 LD1117DT33 C362 100nF 10uF/16V 100nF C363 C364 C365 C366 C367 C368 10uF/16V 10uF/16V 100nF 100nF 100nF 100nF L360 10uH DDC_SCL DDC_SDA L361 DSUB_ID 10uH L362 VPLL 10uH C369 3.3Vcc 10uF/16V C370 C371 C372 C373 C374 C375 C376 C377 100nF...
  • Page 40 TTX_H_SYNC TTX_H_SYNC TTX_V_SYNC TTX_V_SYNC L301 R304 100 PDA21 5Vcc 10uH C301 C302 C303 C304 R305 100 PDA22 47uF/16V 220nF 1.5nF 390pF PDA19 PDA20 C305 PDA[8..15] R301 2.2nF Q301 BC848 C306 470nF C307 C308 C309 TTX_CVBS 6pF/NPO 47nF 68nF R307 R308 X301 C310 20.25MHz...
  • Page 41 12Vcc CS01 CS02 P2.0/PWM P1.5 100nF 10uF/16V P2.1/PWM0 P1.4 TTX_50 RX01 RZ01 P2.2/PWM1 TTX_49 RX02 RZ02 P2.3/PWM2 RZ03 P2.4/PWM3 P1.3 ICS1 P2.5/PWM4 P1.2 CX12 TEA5114A 100nF CS03 P2.6/PWM5 P1.1 470nF RS01 SCART_R EXT_R ROUT CX01 P2.7/PWM6 P1.0 RCON 5Vcc CS04 P3.0/ADC0 Vddp 470nF...

  • Page 42: Circuit Diagram

    20.1" C i r cui t D i agr am MD[0..31] C602 22pF R606 MA[0..10] LDTG LVSYNC LHSYNC GNDP GOUT1 GNDP MD15 MD15 GOUT0 RA[0..7] MD14 R607 MD14 LDTG MD13 8P4R-100 MD13 LVSYNC MD12 MD12 LHSYNC MD11 MD11 MD10 R608 MD10 8P4R-100 VDDP...
  • Page 43 MD[0..31] 3.3Vcc 3.3Vcc C701 C702 C703 C704 C705 C706 C707 C708 C709 C710 C711 C712 C713 C714 10uF/16V 100nF 100nF 100nF 100nF 100nF 100nF 10uF/16V 100nF 100nF 100nF 100nF 100nF 100nF MD15 MD16 MD31 DQ15 DQ15 MD14 MD17 MD30 DQ14 DQ14 VSSQ VSSQ...
  • Page 44 CN92M FH12-50S-0.5SH CN91M INVERTER-5PIN PANEL_VCC LHSYNC HSYNC LVSYNC VSYNC BL_BRI LDTG LCKA DCLK BLON L901 BEAD Vcc_SW C904 C905 C903 100nF 100nF C906 22uF/16V 22uF/16V RA[0..7] 5Vcc GA[0..7] C921 PANEL_VCC 100nF C918 C920 R906 100nF 22uF/16V C919 R907 22uF/16V BA[0..7] Q901 IC903 PANEL_POWER...
  • Page 45 5Vcc 5Vcc L201 C202 C203 AV_RESET 10uH 100nF 100pF C201 R202 R201 R203 10uF/16V SIF_IN R204 C204 470nF CVBS TV_CVBS AUDIO L202 R205 EF-1T2012-330JT CN21M R206 JA202 Harness 10Pin PJ6054B MAIN_R C205 STANDBYQ DACA_L L203 EF-1T2012-330JT ADR_SEL VREF2 RGB_SW D_CTR_OUT0 DACM_R R207 D_CTR_OUT1...
  • Page 46 L251 BEAD C251 C252 220uF/25V(DIP) IC251 TDA1519B C253 C254 10uF/16V 220uF/25V(DIP) MAIN_R OUTR R251 R252 4.7K 4.7K C255 R253 CN25M C256 Speaker-4pin 220uF/25V(DIP) Vref R254 C257 S_GND R255 C258 C259 4.7K 10uF/16V 220uF/25V(DIP) MAIN_L OUTL R256 R257 4.7K C260 Mute C261 JA301C R258...

  • Page 47: General Specification

    6. General Specification TVL-151N (NTSC System) (1) Optical specification Panel type : Active matrix colour TFT LCD Display size : 15.1” (38 Cm) diagonal Display colour : 16,777,216 colors Pixel pitch : 0.3 mm(H) x 0.3 mm(W) Resolution : 1024 x 768(XGA) Back light : 4 CCFL lamps Contrast ratio : 350 : 1(Typ) Brightness : 400 Cd/m...
  • Page 48 (4) Plug & Play : DDC-1/2B (5) In/Out Terminals PC in :15 pin D-sub terminal Antenna in : 75 Ohm unbalanced DIN jack Audio/Video Out : RCA type phone jack Y/C video in : SVHS terminal Composite video in : RCA type phone jack Audio in(L,R) : RCA type phone jack PC sound input : Stereo Headphone jack (6) Remote Controller...
  • Page 49 Sound Bass Treble Balance Geometry(valid only at PC input mode) H-position V-position H-size V-size Auto position Function Tracking(valid only at PC input mode) Auto Tracking Clock Adjust Phase Adjust Information Tuning(valid only at TV input mode) Air/CAtv Auto Tuning Manual Tuning Caption CAPTION : ON/OFF MODE : CAPTION/TEXT...
  • Page 50 TVL-151M(PAL System) (1) Optical specification Panel type : Active matrix colour TFT LCD Display size : 15.1” (38 Cm) diagonal Display colour : 16,777,216 colours Pixel pitch : 0.3 mm(H) x 0.3 mm(W) Resolution : 1024 x 768(XGA) Back light : 4 CCFL lamps Contrast ratio : 350 : 1(Typ) Brightness : 400 Cd/m (Typ)
  • Page 51 PC in :15 pin DSUB terminal Antenna in : 75 Ohm unbalanced DIN jack Audio/Video In/Out : 21 pin SCART terminal Y/C video in : SVHS terminal Composite video in : RCA type phone jack Audio in(L,R) : RCA type phone jack Audio line out(L,R) : RCA type phone jack PC sound input : Stereo Headphone jack (6) Remote Controller...
  • Page 52 V-position H-size V-size Auto position Function Tracking(valid only at PC input mode) Auto Tracking Clock Adjust Phase Adjust Information Tuning(valid only at TV input mode) Sort Auto tune Manual Tune Fine Tune Ch. Skip Colour system Sound System...
  • Page 53 TVL-201N (NTSC System) (1) Optical specification Panel type : Active matrix color TFT LCD Display size : 20.1” (51 Cm) diagonal Display color : 16,777,216 colors Pixel pitch : 0.6375 mm(H) x 0.6375mm Resolution : 640 x 480(VGA) Back light : 6 CCFL lamps Contrast ratio : 400 : 1(Typ) Brightness : 400 Cd/m (Typ)
  • Page 54 (4) Plug & Play : DDC-1/2B (5) In/Out Terminals PC in :15 pin D-sub terminal Antenna in : 75 Ohm unbalanced F-Connector Audio/Video Out : RCA type phone jack Y/C video in : SVHS terminal Composite video in : RCA type phone jack Component (Y,Cb,Cr)video in : RCA type phone jack Audio in(L,R) : RCA type phone jack PC sound input : Stereo Headphone jack...
  • Page 55 Sound Bass Treble Balance Geometry(valid only at PC input mode) H-position V-position H-size V-size Auto position Function Tracking(valid only at PC input mode) Auto Tracking Clock Adjust Phase Adjust Information Tuning(valid only at TV input mode) Air/CATV Auto Tuning Manual Tuning LNA : ON/OFF Caption CAPTION : ON/OFF...
  • Page 56 TVL-201M(PAL System) (1) Optical specification Panel type : Active matrix colour TFT LCD Display size : 20.1” (51 Cm) diagonal Display colour : 16,777,216 colours Pixel pitch : 0.6375 mm(H) x 0.6375 mm Resolution : 640 x 480(VGA) Back light : 6 CCFL lamps Contrast ratio : 400 : 1 Brightness : 400 Cd/m Viewing angle : 55/65 degree(Up/Down), 70/70 degree(Left/Right)
  • Page 57 (4) Plug & Play : DDC-1/2B (5) In/Out Terminals PC in :15 pin D-sub terminal Antenna in : 75 Ohm unbalanced DIN jack Audio/Video In/Out : 21 pin SCART terminal Y/C video in : SVHS terminal Composite video in : RCA type phone jack Component (Y,Cb,Cr)video in : RCA type phone jack Audio in(L,R) : RCA type phone jack Audio line out(L,R) : RCA type phone jack...
  • Page 58 Geometry(valid only at PC input mode) H-position V-position H-size V-size Auto position Function Tracking(valid only at PC input mode) Auto Tracking Clock Adjust Phase Adjust Information Tuning(valid only at TV input mode) Sort Auto tune Manual Tune Fine Tune Ch. Skip Colour system Sound System...

  • Page 59: Troubleshooting

    7. Troubleshooting 1 If you have a problem setting up or using your LCD monitor, you may be able to solve it yourself. Before contacting customer service, try the suggested actions that are appropriate to your problem. What you see... Suggested Actions Reference Screen is blank and...
  • Page 60 7. Troubleshooting 2 Problem Suggested Actions Reference Ensure that the audio cable is firmly connected to both the audio-in jack on Connecting a PC, TV or VCR, your monitor and the audio-out jack on page 13,19. No sound your sound card. Check the volume level Adjusting the Sound settings, page 16, 21.
  • Page 61 8. 15.1" TFT LCD TV Parts List D at e : 2002. 2. 26 Locat i on Spec Pak' Usa' et c ASS' Y, PAC KI NG M ANU AL, I NSTRU C TI O N REM O C O N ASS' Y, PAL BLAC K PAC KI NG C ASE, B æ...
  • Page 62 Locat i on Spec Pak' Usa' et c STAND C O VER, ABS G P35 # 130035 SC REW STAND C O VER, KTB4+12G BLAC K AV TERM I NAL SH EET, PC ( t =0. 3m m ) G RAY M O D EL N AM E PLATE, PC ( t =0.
  • Page 63 Locat i on Spec Pak' Usa' et c 1608 R360, R363, R366 C H I P RES' , 1/10W , 10 O H M J 1608 R005, R008, R016, R017, R201, R203, R209, R210, R212, R213, R302, R303, R304, R305, R306, R326, R335, R339, R601, R611, R612, R901, RX01, RX02, R375 C H I P RES' , 1/10W , 100 O H M J R606, R614 1608...
  • Page 64 Locat i on Spec Pak' Usa' et c 1608 C 203, C 206, C 220, C 223, C 312, C 318, C 320, C 323, C 397 C H I P C AP' 25V 100pF J 1608 C 378, C 381, C 383 C H I P C AP' 25V 10pF J 1608 C 623, C 628...
  • Page 65 Locat i on Spec Pak' Usa' et c 5m m C 903, C 906, C 913, C 919, C 920, C X05, C X07 ELEC ' C AP, 16V 22uF 5m m C 254, C 301, C 315, C 325, C 327, C 340, C 803, C 817, C 819 ELEC ' C AP, 16V 47uF 5m m C 003, C 005, C 010, C 201, C 217, C 218, C 221, C 222, C 226, C 228, C 256, C 257, C 332, C 356, C 359, C 360, C 363, C 364, C 369, C 372, C 601, C 612, C 616, C 618, C 621...
  • Page 66 Locat i on Spec Pak' Usa' et c PC B ASS' Y, LED TVL_151M ( AXI ) C ERAM I C C AP, 0. 1uF J C A2644 C C 03 RES' C ARBO N, 1/6W 47 O H M J AXI AL RC 01 RES' C ARBO N, 1/6W 47K O H M J...
