Summary of Contents for Juro-Pro Eco II 16L

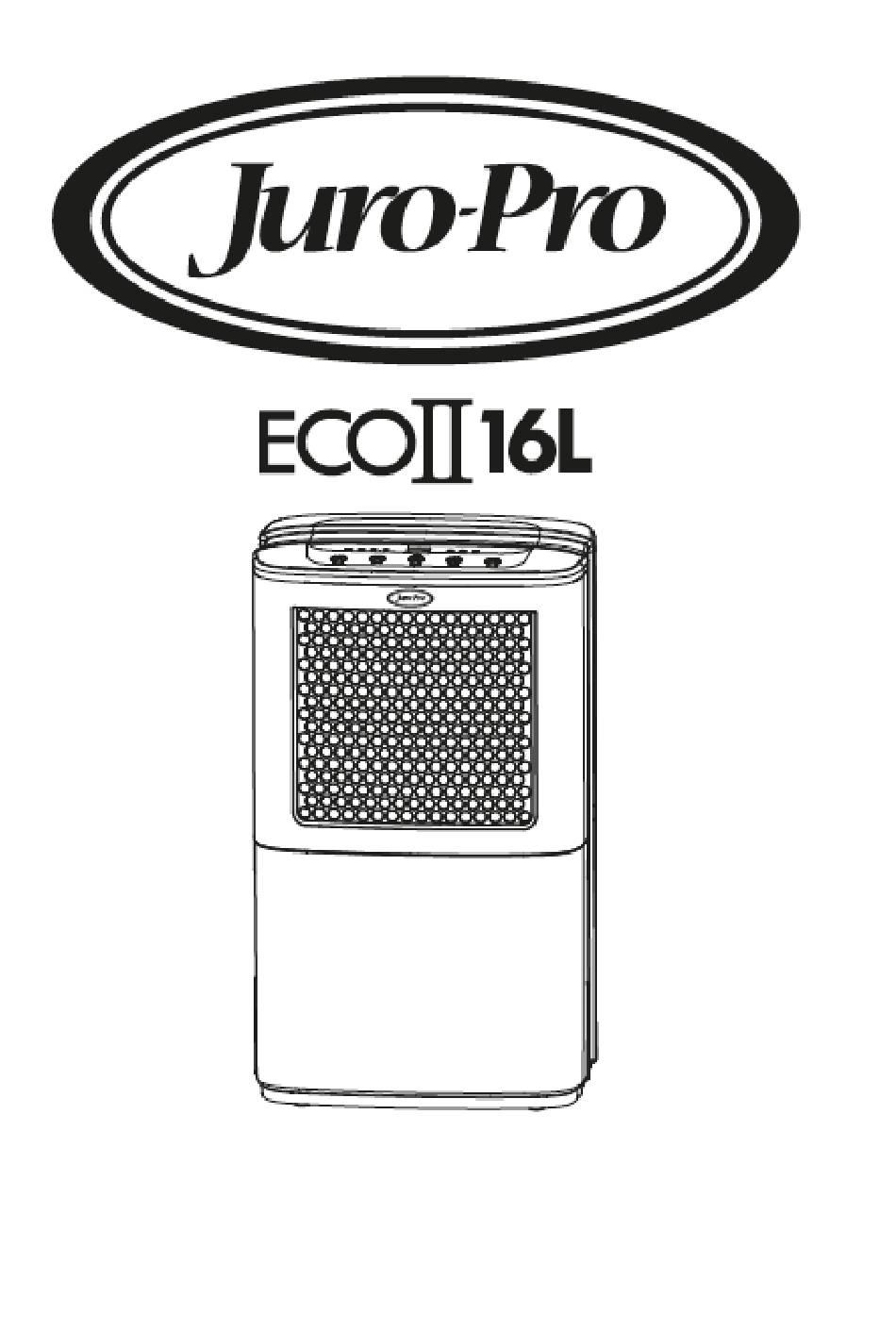

- Page 1 Dehumidifier Instruction Manual Please keep this instruction manual for future potential usage.
-
Page 2: Table Of Contents
Contents Please take some time to read this instruction manual and keep it for potential usage. Page Warnings----------------------------------------------------1 Working principle------------------------------------------2 Working environment--------------------------------------3 Important Safety Measures--------------------------------4 Body of machine--------------------------------------------5 Operation Method------------------------------------------6-7 Drainage-----------------------------------------------------8 Maintenance-------------------------------------------------9 Storage-------------------------------------------------------10 Problem shooting------------------------------------------11-12 Safety Instructions-----------------------------------------13-16 Appendix----------------------------------------------------17-23... -
Page 3: Warnings
Warnings This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Working Principle
Working Principle This product is multifunctional dehumidifier, which can be set humidity level according to different requirement. Through the machine settings, the damp air flows through the body of the evaporator and radiator, and the relative humidity of the room could be controlled: the excessive moisture air flow through the evaporator, the air will condenses into water and then exhaust to the water tank, after that the dry air flow through the radiator to warm up then back to the room. -
Page 5: Working Environment
Working environment This is a multi-functional dehumidifier, and you can set the room humidity according to requirement. It could create a healthy and comfortable environment. The machine usually used in basement, wine cellar, storage, closet. Also could be used in kitchen, library, showroom, computer room archives, living room and bedroom. -
Page 6: Important Safety Measures
Important Safety Measures 1. Keep the machine upright on the floor. 2. After be transported or tilted (caused by cleaning), the machine need to be stopped for an hour and then plugged into power. 3. Make sure there’s 25CM distance around the machine. 4. -
Page 7: Body Of Machine
Body of Machine 1． Control panel 2． Air Inlet 3． Filter 4． Water Tank 5． Castor 6． Handle of water tank 7． Handle of machine 8． Air Outlet Continuous Drainage Outlet... -
Page 8: Operation Method
Operation Method Operation Panel Icon Operation Instruction ON/OFF 1. Connection of power (referring to the nameplate sticker of the power requirements), press “ON/OFF” button to turn on the machine, then power indicator lights. Display system shows fault setting models and corresponding indicators light. - Page 9 Temperature display Pressing“SPEED”button and mode button synchronously, Monitor displays ambient temperature. Seconds later, it will show ambient humidity again. Choice of airflow speed Acquiescent setting when starting is low airflow speed. Pressing “SPEED” button to choose high or low airflow speed. Indicator lights. ...
-
Page 10: Drainage
Drainage When water in tank is full, machine will alarm and stop working automatically, then indicator light turns red, reminding user pour out Water in the tank: 1． Take bar of tank, pull out gently. 2. After pouring out water, bring tank back to original position. Then machine works again. -
Page 11: Maintenance
Maintenance Pull off power plug from socket before maintaining or washing. ◆ Cleaning 1. Clean machine by soft cloth 2. Do not clean machine by volatile chemicals, gasoline, detergent chemical processed cloth or other cleaning solution, which may be harmful to the machine. -
Page 12: Storage
Storage When machine does not run for long time, please do as follows: 1. Turn off machine, cut off power and sort out power cord. 2. Pour out tank water and wipe it. 3. Clean the filter. 4. Cover up machine and place it in one position unexposed to sun... -
Page 13: Problem Shooting
Problem Shooting Before calling for service, please make following check： Problems Possible causes Whether plug is in the power? Machine does not work Whether electrical wires indoor in the power? Whether full water indicator is lit? （If lit, water tank is possibly full of water or not placed in correct position）... - Page 14 Problem Shooting The following symptoms are not failure: Symptoms Causes Noise gets bigger when machine When compressor starts, noise of starts compressing gets bigger. Machine will pump out musty Temperature of heat exchanger taste in first use rises suddenly, leading temporary strange smell or musty taste.
-
Page 15: Safety Instructions
Safety Instructions Warning Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.) ... - Page 16 The maximum dosage of refrigerant is 60g Notes: The dehumidifier is only suitable for indoor use, and is not suitable for other applications. Place the machine in a flat and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls.
- Page 17 for the humidifier with CE-MARKING) Children should be supervised to ensure that they do not play with the appliance. (Except for the humidifier with CE-MARKING) The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 18 The fuse mode is 4T or 4F or 334 or L3CT, the specification is AC250V, 3.15A Appliance is filled with flammable gas R290, and the maximum charge of refrigerant is 60g. GWP value of R290 refrigerant is 3. Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer’s instruction only...
-
Page 19: Appendix
APPENDIX 1. Information on servicing 1) Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 20 sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed. 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out.
- Page 21 Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking. That there no live electrical components and wiring are exposed while charging, recovering or purging the system. That there is continuity of earth bonding. 2.
- Page 22 Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 5.
- Page 23 Remove refrigerant. Purge the circuit with inert gas. Evacuate. Purge again with inert gas. Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times.
- Page 24 refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.
- Page 25 recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order.
