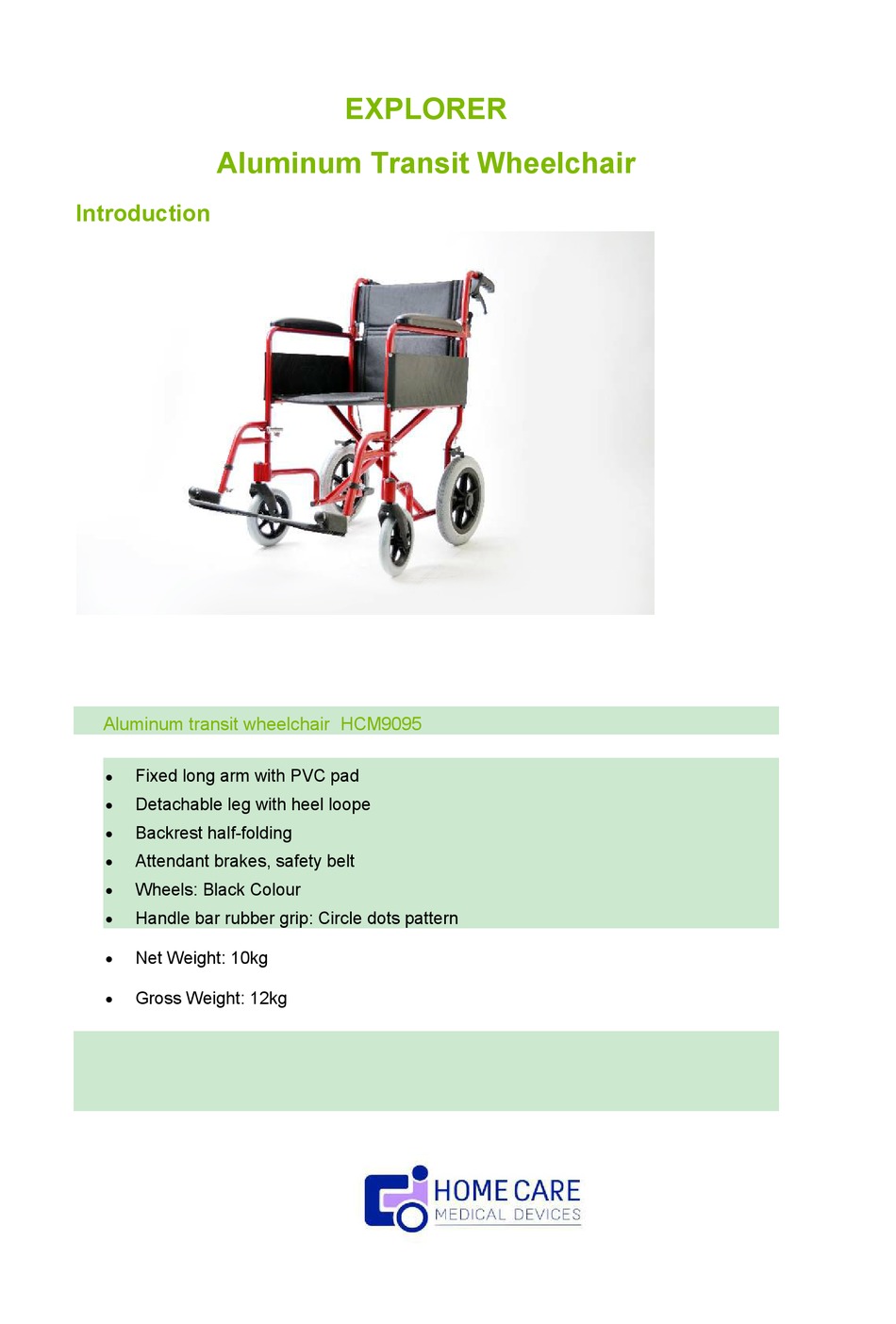

Aluminum Transit Wheelchair

Introduction

Aluminum transit wheelchair HCM9095

Fixed long arm with PVC pad



Detachable leg with heel loope



Backrest half-folding



Attendant brakes, safety belt



Wheels: Black Colour



Handle bar rubber grip: Circle dots pattern



Net Weight: 10kg



Gross Weight: 12kg



EXPLORER

Table of Contents

Need help?

Do you have a question about the HCM9095 and is the answer not in the manual?

Page 1 EXPLORER Aluminum Transit Wheelchair Introduction Aluminum transit wheelchair HCM9095 Fixed long arm with PVC pad  Detachable leg with heel loope  Backrest half-folding  Attendant brakes, safety belt  Wheels: Black Colour  Handle bar rubber grip: Circle dots pattern ...
Page 2 Specifications 1. Handles 6. Front Wheels 2. Support 7. Seat 3. Armrest 8. Cross bar 4. Rear Wheels 9. Footrest 5. Attendand Brakes Folding and unfolding the wheelchair To fold, simply life up under the centre edge of the seat upholstery. To unfold, tilt the chair slightly to one side to raise the wheels on the opposite side off of the floor.
Page 3 Footrest length adjustment The position of the footplate on either standard footrests or elevating leg rests is adjustable to fit the user’s leg length. The footplate should be adjusted to support the weight of the user’s foot and lower leg in such a position that permits weight bearing by the thighs. A footrest adjustment that is too long will result in a line of pressure under the thigh, at the front edge of the seat.
Page 4 Remember to engage the wheelchair lock before transferring to or from the chair. Do not lean forward in the wheelchair unless both feet are flat on the floor. This is particularly important for users with heavy leg casts using elevating leg rests. Warranty details There is a comprehensive twelve month warranty from the date on which your new wheelchair is delivered.
