Summary of Contents for Home Care Medical HCM9050

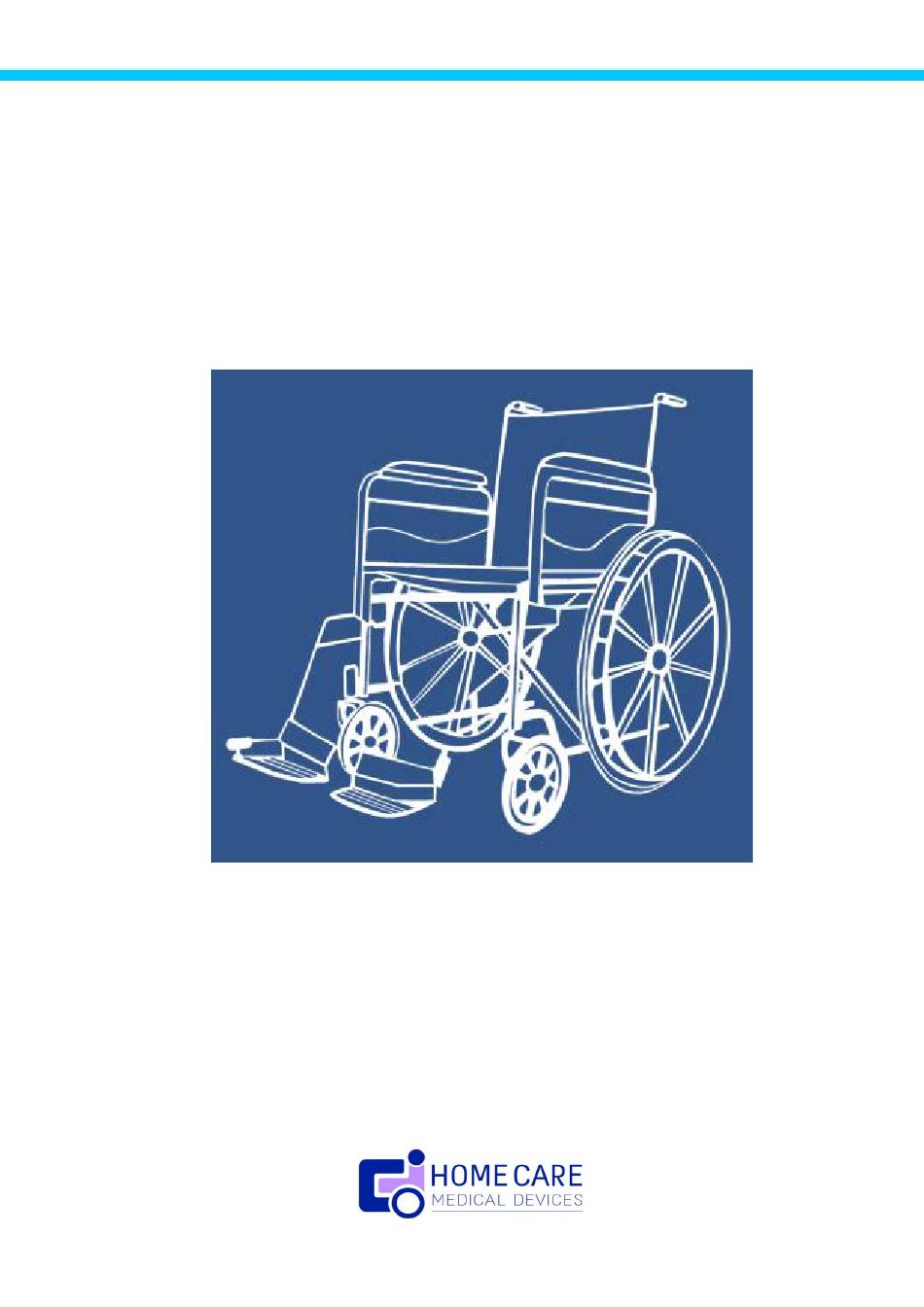

- Page 1 Basic Steel Manual Wheelchair HCM9050 User Manual...
- Page 2 User Manual HCM9050 1．Simple Structure Figure 2. Usage Unfolding Hold the handles with both hands to separate the frame slightly. Push down both sides of the seat upholstery to flatness lightly by hand, so that the wheelchair has been unfolded. (Figure 3)
- Page 3 Note: when unfolding, do not pull the frame hardly for fear of damaging the parts. Don’t hold the seat tubes with fingers to avoid injuring your fingers when pushing down the seat upholstery. 2.2 Folding First turn over both the footplates, lift up both sides of the seat upholstery lightly with hands, and then it can be folded.
- Page 4 fastener aim at the position of the front bracket of the seat tube and press lightly to self-locking fastener. (Figure 9) 2.8 Tthe knocked-down method of detachable legrest ( fixed legrest is excluded) When assembling the legrest, you should first aim the up and down positioning holes at the up and down fixed pins, hang the legrest and then circumvolve the legrest to the spring from outside to inside to reach a state of self-locking;...
- Page 5 not to explode tires, users should pay attention to air pressure when inflating tires and air pressure should be restricted in 3.5kg / as to rear wheel. 5. Performance parameters Rated load: 120kg ≤ Minimum radius of gyration: 0.85 ≥ ≥...
