- Page 1 THE INNOVATOR IN SOUND & VIBRATION +1 616.669.3028 VibrationResearch.com TECHNOLOGY vrsales@VibrationResearch.com Quick Start Guide Intro Video & More vibrationresearch.com/observr1000-videos/ VibrationResearch.com...
- Page 2 Vibration Research representative from whom your controller was purchased, or contact our product support staff. +1-616-669-3028 8am-5pm Monday-Friday (Eastern) support@vibrationresearch.com www.VibrationResearch.com © 2019 Vibration Research is a registered trademark in the United States and other countries Vibration Research | VibrationVIEW | ObserVR1000™ | ObserVIEW ® ®...
-
Page 3: Table Of Contents
Dynamic Signal Analyzer Contents Hardware overview ........2 Charge batteries ........3 Check battery status ........ 3 Power on the system ........ 3 Connect transducers ........ 4 Install/remove SD card ......4 VR Mobile - Embedded software ....4 VR Mobile - Connect ........ 4 Firmware and license key updates .... -

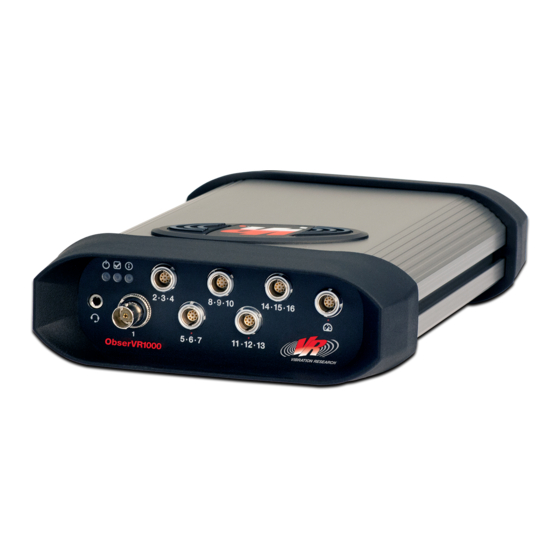

Page 4: Hardware Overview
Hardware Overview 2 •... -
Page 5: Charge Batteries
(optional) that are supplied with the ObserVR1000 • Charge the external battery using the power adapter labeled External Battery Charger • More battery information is available in the ObserVR1000 hardware manual Check Battery Status There are two ways to check the ObserVR1000’s battery status: •... -
Page 6: Connect Transducers
The VR Mobile software application runs on the ObserVR1000 hardware. VR Mobile starts whenever a smartphone or tablet makes a WiFi connection to an ObserVR1000, with the smartphone or tablet serving as the user interface display. VR Mobile - Connect Watch our Autonomous connection video about stepping thru the connection process. - Page 7 VR Mobile - Connect NOTE: Internet access may not be available while connected to an ObserVR1000 With VR Mobile and a smartphone or tablet, users can configure and control an ObserVR1000. 1. Install the smartphone/tablet component of the VR Mobile app, downloading from Google Play (Android) or App Store (iPhone) 2.
-
Page 8: Firmware And License Key Updates
Firmware and License Key Updates Use the Info page if the ObserVR1000 needs new firmware or additional software feature support in ObserVIEW or VibrationVIEW. Scroll down the sections to upload. Figure 5 & 6 Figure 5 Figure 6 Configure Inputs Select the Inputs link. - Page 9 Configure Inputs (Cont’d) The easiest way to configure inputs is to select Discover Sensors; this will activate an informational screen. Figure 8 • Continue (unless there is a sensor not expecting power): select to view the next screen Figure 9 •...
-
Page 10: Configure Recorder
• Apply: select to make changes effective Select Configure Device Time Settings to locate a window for synching the ObserVR1000’s time and timezone with the user’s location. These two parameters are synched separately. Figure 12 Scroll down the Recorder page to locate the SD Card display with: •... -
Page 11: Start And Stop Recording
Select the Record button at the bottom of any page to start and stop data recording. Or press the buttons on top of the ObserVR1000 to start and stop data recording. STOP The red Start button light will flash while START recording. -
Page 12: Options For Recording Operation
Options for Recording Operation NOTE: The buttons on the top of the ObserVR1000 can always be used to start and stop data recording. Three Ways to Control the ObserVR1000 Each option offers a different set of capabilities and works best in a different set of use cases. -
Page 13: After Recording
NOTE: A laptop may detect the ObserVR1000 wireless signal but a wireless connection to VibrationVIEW is not recommended • An Ethernet connection from the ObserVR1000 to a Windows PC or laptop running VibrationVIEW software • Users can configure the ObserVR1000 inputs, control data recording to a PC’s file system, view and analyze live data recording,... - Page 14 Notes...
- Page 15 Notes...
- Page 16 THE INNOVATOR IN SOUND & VIBRATION +1 616.669.3028 VibrationResearch.com TECHNOLOGY vrsales@VibrationResearch.com © 2019 Vibration Research is a registered trademark in the United States and other countries. 092019...
