  • Page 1 User’s Manual EAS Acousto-Magnetic Antenna User’s Manual V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
  • Page 2: Foreword

    User’s Manual Foreword General This manual introduces the functions and operations of the EAS Acousto-Magnetic Antenna (hereinafter referred to as "the Device"). Models DHI-ISC-EAA8000-P DHI-ISC-EAA8000-R DHI-ISC-EAE0000-110 DHI-ISC-EAE0000-220 Safety Instructions The following signal words might appear in the manual. Signal Words...
  • Page 3 User’s Manual measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information. About the Manual The manual is for reference only. Slight differences might be found between the manual and the ...
  • Page 4: Important Safeguards And Warnings

    User’s Manual Important Safeguards and Warnings This section introduces the proper way of using the device, danger and property damage preventions. Before using the device, read this manual carefully. Follow the instructions and keep this manual properly for future reference. Operating Requirements Transport, use and store the device under allowed humidity and temperature conditions.
  • Page 5: Table Of Contents

    User’s Manual Contents ......................................I Foreword .................................... I Important Safeguards and Warnings ......................... III 1 Overview ..................................1 Introduction ....................................1 Features and Advantages ............................... 1 2 Appearance ................................... 2 3 Installation and Configuration ..........................4 Cautions ......................................4 Packing List ....................................4 Installation and Configuration ..............................
  • Page 6: Overview

    User’s Manual Overview Introduction The development of information recognition technology has greatly improved the intelligence of commercial retail stores, helping to reduce labor costs and enhance economies of scale. The development and production of EAS technology have effectively improved logistics management and reduced the loss of merchandise.
  • Page 7: Appearance

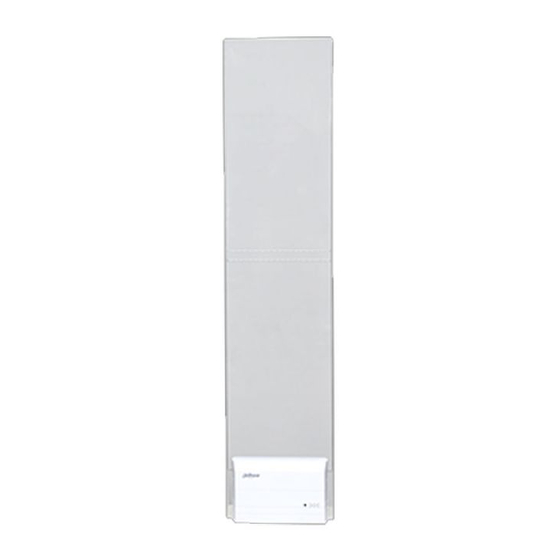

    User’s Manual Appearance EAS Acousto-Magnetic Antenna is an advanced as well as software-driven Electronic Article Surveillance for shopping malls and supermarkets. It can overcome the influence of the environment and detect 58 KHz labels and tags. It has strong stability and high detection distance. The Acousto-Magnetic system includes a primary antenna with two replica antennas, no other controllers are needed, which makes installation in large supermarkets or multi-export venues very convenient.
  • Page 8 User’s Manual Dimensions (Unit: mm [inch])
  • Page 9: Installation And Configuration

    User’s Manual Installation and Configuration Cautions Only use for indoors, it is recommended to shut down the device during non-business hours.  Do not cover the device and keep it ventilated.  Pay attention to sun protection, waterproof and moisture-proof. ...
  • Page 10: Installation And Configuration

    User’s Manual Installation and Configuration 3.3.1 Installation and Configuration Settings Table 3-2 Tool requirements Name Image Name Image Phillips and M10 × 100 slotted expansion screwdrivers screw × 4 Open-end Marker × 1 wrenches Cutting Hammer × 1 Machine × 1 Fine sand Scuff-plate Configuration...
  • Page 11 User’s Manual Install and fix the equipment: Put fine sand in the cutting groove to protect the cables and fill  the gaps. Next install the scuff-plate on the floor. Then fix the equipment. The equipment installation is complete. ...
  • Page 12: Description Of Primary Antenna Tx Board Ports And Manual Configuration Of Hardware

    User’s Manual 3.3.2 Description of Primary Antenna TX Board Ports and Manual Configuration of Hardware TX board ports Table 3-3 Description of TX board ports and manual configuration of hardware Port Function Settings By default, CH1 is for connecting RX board Use 9 Pin cable to connect, remember that CH1/CH2/CH3 of primary antenna;...
  • Page 13 User’s Manual J107 1&2=L System alarm threshold From top to bottom: Quick setting of system alarm threshold Low, Medium, High The alarm threshold of each channel can Jumper in L: be individually set by software. When a low alarm threshold false alarm occurs in the system, on-site 3&4=M high sensitivity...
  • Page 14 User’s Manual The interpretation of the channel indicator is as follows: Working mode:  The first one from the left in the first row is a working indicator. If the indicator flashes slowly, the program is under normal working conditions. If the indicator does not flash, the program is not running.
  • Page 15: Description Of Rx Board Ports And Manual Configuration Of Hardware

    User’s Manual 3.3.3 Description of RX Board Ports and Manual Configuration of Hardware RX board ports Table 3-4 RX board ports and manual configuration of hardware Port Description Use 9 Pin cable to connect to CH1/CH2/CH3 of the TX board of primary antenna, remember that cold plug, electrical hot plug will cause damage to the TX board.
  • Page 16: Software Debugging

    User’s Manual Software Debugging 3.4.1 Software Installation Install and debug software applications with software compression package Install and debug the module driver with driver compression package CH341SER.EXE. Check whether the installation of step1&2 is successful. Right-click on the computer desktop and select My Computer> Device Manager> Port. Use blue configuration cable to connect TX board and computer.
  • Page 17: Interface Parameter Description

    User’s Manual 3.4.2 Interface Parameter Description 3.4.2.1 Interface Parameter Software parameter Table 3-5 Interface parameter description Parameter Default Parameter Parameter Range Description Phase 0–119 Set the phase. 57.8 K/58 K/58.2 Change accordingly to the label’s Frequency 58 K K/58.4 K/58.6 K frequency.
  • Page 18 User’s Manual Parameter Default Parameter Parameter Range Description Detect whether there are 58KHz labels or tags around the antenna that affects the antenna's normal work. The antenna indicator will "flash 2 times—pause—flash 2 Nearby OFF/S/M/L times—pause", which prompts Detc clerks to check. There are three choices for selecting: small label, medium label and large label.
  • Page 19 User’s Manual Sync Interface Table 3-6 Description of sync interface parameters Parameter Description Environment System Phase The red square indicates the situation of signal transmission. The black square indicates the surrounding signal. It’s convenient Surrounding Signal to use the mouse to calculate the phase differences between antenna system and peripherals.
  • Page 20 User’s Manual Parameter Description If using the mouse to change the phase to a new range, please click Set, otherwise the software will not transmit this value to the machine. 3.4.2.3 Phase Sync of Acousto-Magnetic System Select the corresponding phase channel and click Refresh. The primary antenna will collect the ambient data and upload it for display.
  • Page 21 User’s Manual Phase difference calculation Input the obtained phase difference value into Phase in Parameter Setting and click Set and Save. If you observe that the noise and signal displayed by the channel signal are the smallest, it means phase synchronization is completed. Phase sync...
  • Page 22 User’s Manual 3.4.2.4 Alarm Records Alarm records view Table 3-7 Alarm parameter description Parameter Description Record Type CH1/CH2/CH3 Alarm Corresponding to alarm record of the signal channel. Hour Tick After the system is powered on, this record will be automatically generated every hour.
  • Page 23 User’s Manual Channel widths: About 2 m–4 m  One primary and one replica antennas Channel widths: About 4 m–6 m  One primary and two replica antennas Channel widths: About 6 m–8 m  Two primary and two replica antennas Channel widths: About 8 m–10 m ...
