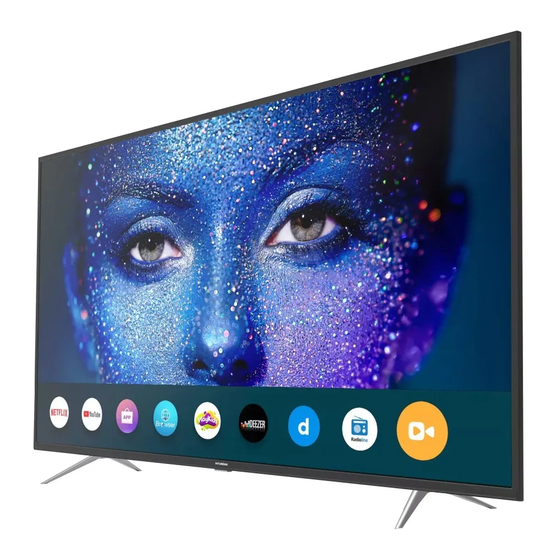

TCL HYLED-58UHD4 Service Manual
  1. Manuals
  2. Brands
  3. TCL Manuals
  4. TV
  5. HYLED-58UHD4
  6. Service manual

TCL HYLED-58UHD4 Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
HYLED-58UHD4
1. Caution....................................................................................
2. specification..............................................................................
3. Alignment Procedure..................................................................
4．Block diagram...........................................................................
5．Scheme Diagram .....................................................................
6. Troubleshooting........................................................................
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product
1MS586C2ISA

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYLED-58UHD4 and is the answer not in the manual?

Questions and answers

Related Manuals for TCL HYLED-58UHD4

Summary of Contents for TCL HYLED-58UHD4

  • Page 1 SERVICE MANUAL HYLED-58UHD4 1MS586C2ISA 1. Caution………………………………………………………………………… 2. specification…………………………………………………………………… 3. Alignment Procedure………………………………………………………… 4．Block diagram………………………………………………………………… 5．Scheme Diagram …………………………………………………………… 6. Troubleshooting……………………………………………………………… This manual is the latest at the time of printing, and does not include the modification which may be made after the printing, by...
  • Page 2 SCHNEIDER ELECTRONICS GMBH-GERMANY 1. CAUTION CA UTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UT ION : T O RE DUCE TH E RIS K OF CA U T ION ELECTR ICA L SHOCK, DO NOT RE MOVE COVER (OR BACK).
  • Page 3 SCHNEIDER ELECTRONICS GMBH-GERMANY IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and Instructions marked on the audio equipment. 1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated. 2.
  • Page 4 SCHNEIDER ELECTRONICS GMBH-GERMANY PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
  • Page 5 SCHNEIDER ELECTRONICS GMBH-GERMANY OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
  • Page 6 PRODUCT SPECIFICATION RELEASE Model: 58D1200/MS6586 Version：V01 Issued On: 2019-11-13 Basic Information USB Device Media Format LCD UHD Smart TV Product Type Music MP3, EAC-3, LPCM MS6586-LA(1MS586C2ISA) Chassis Picture JPEG, PNG, BMP CA9 *2, 1.0GHz Video MPEG2, H.264, H.265, MPEG4 GPU Mali-400*2 Linux File Memory...
  • Page 7 Optional Accessories Camera Wall Mount WMB333 RF Converter(IEC Type to Type F) Mechanical Key Specification Diagonal size（cm） L1（mm） 1303 Slim Edge Design---Up（mm） W1（mm） Slim Edge Design---Bottom（mm） 19.9 H1（mm） 757.9 Slim Edge Design---L&R（mm） L2（mm） 1081 Carton Dimensions LxWxH（mm） 1436*152*879 W2（mm） 258.8 Container Loading---20 feet（pcs）...
  • Page 8 Rev:A/0 1. Introduction 0） SHIPPING INIT：TV Initilization，and All Parameter to be default. Designed for Shipment. 1） BURING MODE: TV Aging Mode Switch. 2） ADC ADJUST：Change ADC Parameters. 3） PICTURE SETTING：Change Picture Setting. 4） SOUND SETTING：Change Sound Setting. 5） GENNERAL SETTING：Some other settings usualy used. 6）...
  • Page 9 2. ADC Adjust&WhiteBalance Auto Adjust...
  • Page 10 Rev:A/0 3. PICTURE 0） Source：Choose source 1） Picture Mode:Change picture mode parameters 2） Picture Curve: Picture mode parameter curve. 3） W/B Adjust: White Balance parameter setting 4） Overscan : Overscan setting 5） PQ Advanced: For PQ Adjustment.

  • Page 11: Picture Mode

    Rev:A/0 3.1 PICTURE MODE 0） Source：Choose sources 1） Picture Mode：Select picture mode which is same with main menu. 2） Contrast：Adjust contrast which is same with main menu. 3） Brightnesst: Adjust brightness which is same with main menu. 4） Colour：Adjust Colour which is same with main menu.
  • Page 12 Rev:A/0 3.2 PICTURE CURVE Adjust the real value of main menu from 0 to 100 0） Source：Choose source 1） Picture Mode: Adjust Pic mode. 2） Contrast ： Adjust the real contrast for main menu from osd 0 to osd 100. 3）...
  • Page 13 3.2.1 Contrast 1） Brightness_0：The real value of main menu brightness osd 0 2） Brightness_25：The real value of main menu brightness osd 25 3） Brightness_50：The real value of main menu brightness osd 50 4） Brightness_75：The real value of main menu brightness osd 75 5）...
  • Page 14 3.3 WB ADJUST WhiteBalance Adjustment This page only for current source White Balance Adjustment. There are Warm, Cool, Normal modes and save every source seperately.We can change the R-GAIN, G-GAIN, B-GAIN, R-OFFSET, G-OFFSET, B-OFFSET.
  • Page 15 3.4 OVERSCAN This page can adjust overscan. Note : Overscan should check with every timing .
  • Page 16 3.5 PQ ADVANCED PQ Adjustment Page Adjust VIP ,NR and etc.
  • Page 17 4. SOUND 0） Source：Choose Source. 1） Sound Mode: BASS, TREBLE, EQSettings. 2） Volume Curve: Adjust Volume Curve. 3） Volume Setting: Include DRC AVC prescale For Designer Use Only. 4） SRS: Surround Sound Parameter. 5） SPDIF Delay：Coaxial Sound Delay Setting For Desginer Only.

  • Page 18: Sound Mode

    4.1 SOUND MODE...
  • Page 19 4.2 VOLUME CURVE NOTE： 1） Volume Offset : User overall volume control, every source has a unique value. 2）VOL1---VOL100 : All sources share a same value, make sure the next value bigger than the before.

  • Page 20: General Setting

    5. GENERAL SETTING 0） Test Pattern: Test And Judge the Screen 1） Timer Test: Menu Time Acceleration Test. 2） WDT: Watch Dog Switch. 3） Power Mode: On/Standby/Last boot status. 4） Channel Table: Channel List Function. 5） EN ADC Value: Whether the ADC Value of Keypad is Displayed in the Menu.
  • Page 21 6. DEBUG 0） QMAP : Map adjustment. 1） UART Debug: Open Serial Print Information For Deignger Only. 2） Key Code Debug: Keypad debug. 3） ATV Afc: Automatic Frequency Control in ATV. 4） MSTAR MENU:MASTAR Factory Menu. 5） Network Config: Network Configration. 6）...

  • Page 22: Panel Setting

    7. PANEL SETTING...
  • Page 23 8. EMCSETTING...

  • Page 24: System Info

    9. SYSTEM INFO Note: Show some system parameters, no adjustable items...
  • Page 25 10. SW UPGRADE 0） Upgrade TV：Update Item 1）Bin Name：Software Bin Name.
  • Page 26 11. Project ID 0）Project ID index 1）Mode Name 2）Panel Name 3）RCU Name，remote control information 4）Region 5）PSU...

  • Page 27: Auto Upgrade

    Auto Upgrade 1. change the upgrade file name to V8‐MS586NA‐LF1V.bin 2. Put bin file to the root of the Udisk, and plug in TV set through USB. 3. AC disconnect. 4. AC connect wait 10 seconds and you can see upgrade process is showed on the screen. Menu Upgrade 1.Put V8‐MS586NA‐LF1VXXX.bin to the root of the Udisk, and plug in TV set through USB.
  • Page 28 b. Connect serial debug board to HMID2, c. open dial tool software to get ready to input command, d. when ready to input command, longpress enter on your PC key board, AC power on, TV system will enter boot mode, e.
  • Page 29 AC-DC...
  • Page 30 12/16V 3V3_STB 3V3_STB RD49 12/16V PW_ON 12/16V 12/16V 5V_STB 12/16V CD29 CD30 CD61 CD62 RD50 3D_EN&DIM_DC 1V5_M_DDR CD16 CD13 CD14 CD15 PW_ON RD51 BL_ON ADJ/PWM TEST 12/16V RD12 TEST 12/16V TEST 3D_EN&DIM_DC RD53 ADIM 1V5_M_DDR TEST PW_EN_IC RD16 PW_ON CD20 CD21 CD23 CD31...
  • Page 31 IP_S IM_S_IC NC/TVS 管 ,DIO ESD,0.5pF,25V,0402 DFN,SMD,AZ5325-01F.R7G,Amazing IM_S VID_0 QP_S_IC NC/TVS 管 ,DIO ESD,0.5pF,25V,0402 DFN,SMD,AZ5325-01F.R7G,Amazing QP_S VID_1 QM_S_IC 客供 主芯片 ,IC Main Chip,SMD,MSD6586PYU-8-00DI,TCL-ODM,Mstar QM_S AMP_MUTE_IC R133 S_IF_AGC_IC IFAGC_S 4K7ohm-0402-±5%-1/16W DISEQC_IC GPIO15/DiSEqC_out 4K7ohm-0402-±5%-1/16W LNB_13V/18V_SEL_IC GPIO18/DiSEqC_in 4K7ohm-0402-±5%-1/16W 客供 主芯片 ,IC Main Chip,SMD,MSD6586PYU-8-00DI,TCL-ODM,Mstar...
  • Page 32 AF15 AVDD_PLL_B AF23 AF24 C116 C165 EMMC_CTRL AG12 AG26 GND_EFUSE AH11 AH28 0.1uF-0402-X7R-±10%-16V NC/MMBT2907A( 蓝箭 NC/0ohm-0402-±5%-1/16W NC/2.2uF-0402-X5R-±20%-6.3V 客供 主芯片 ,IC Main Chip,SMD,MSD6586PYU-8-00DI,TCL-ODM,Mstar 客供 主芯片 ,IC Main Chip,SMD,MSD6586PYU-8-00DI,TCL-ODM,Mstar Title Size Number Revision Date: 2018/1/5 Sheet of File: 项目资料 \..\03_MS6586_Power.SchDoc Drawn By:...
  • Page 33 D_DDR3_A2_IC D-DDR3-A2-T2 D-DDR3-CKE-T2 D_DDR3_A0_IC D-DDR3-A0-T2 D_DDR3_WEZ_IC D-DDR3-WEZ-T2 D_DDR3_CASZ_IC D-DDR3-CASZ-T2 1V5_M_DDR VDDQ_0 VSSQ_0 RP11 VDDQ_1 VSSQ_1 D_DDR3_RASZ_IC D-DDR3-RASZ-T2 客供 主芯片 ,IC Main Chip,SMD,MSD6586PYU-8-00DI,TCL-ODM,Mstar VDDQ_2 VSSQ_2 D_DDR3_A15_IC D-DDR3-A15-T2 VDDQ_3 VSSQ_3 D_DDR3_A1_IC D-DDR3-A1-T2 VDDQ_4 VSSQ_4 D_DDR3_A14_IC D-DDR3-A14-T2 240ohm-0402-±1%-1/16W VDDQ_5 VSSQ_5 RP13 2Kohm-0402-±1%-1/16W VDDQ_6...
  • Page 34 3V3_M 1V8_M EMMC_VIO 0ohm-0402-±5%-1/16W NC/0ohm-0402-±5%-1/16W EMMC_VIO 2.2uF-0402-X5R-±20%-6.3V 10Kohm-0402-±5%-1/16W 0.1uF-0402-X5R-±20%-16V NC/NC/10Kohm-0402-±5%-1/16W 0.1uF-0402-X5R-±20%-16V 2.2uF-0402-X5R-±20%-6.3V EMMC_VIO EMMC_CLK NAND_D6&EMMC_D4 EMMC_CMD NAND_D7&EMMC_D5 NAND_D4&EMMC_D0 NAND_D0&EMMC_D6 NAND_D3&EMMC_D1 NAND_D1&EMMC_D7 3V3_M VCC3.3V_EMMC&NAND Flash NAND_D2&EMMC_D2 短路 NAND_D5&EMMC_D3 EMMC_RST RESET NC/2.2uF-0402-X5R-±20%-6.3V C150 C151 NC/0.1uF-0402-X5R-±20%-16V EMMC_VIO VDD_IF VCC3.3V_EMMC&NAND Flash NC/0ohm-0402-PCB VDD_IF VDD_IF 2.2uF-0402-X5R-±20%-6.3V VDD_IF 0.1uF-0402-X5R-±20%-16V...
  • Page 35 AV_CVBS_IN AV1_IN_IC CN14 AV1_IN_IC AV_CVBS_IN CI11 180ohm-0402-±5%-1/16W AV_R 75ohm-0402-±1%-1/16W 30pF-0402-NPO-±5%-50V 管 ,DIO ESD,17.5pF,9V,DFN1006-2L,SMD,ESD5451N-2/TR,Willsemi SFI0402-240E-2R5PP-LF NC/TVS 管 ,DIO ESD,17.5pF,9V,DFN1006-2L,SMD,ESD5451N-2/TR,Willsemi NC/NC/180pF-0402-NPO-±5%-50V AV_L IR Transmitter NC/56pF-0402-NPO-±5%-50V SPDIF_OUT 33ohm-0402-±5%-1/16W 0.047uF-0402-X7R-±10%-16V CI17 RI16 SPDIF_OUT_IC SPDIF_OUT COAX 5V_M 耳机端子 ,Earphone Jack,H,Φ3.5,CH7.0,Black,switch,Seal,SMD,PJ7724H-F05L3BE-F,YUQIU SPDIF_OUT_IC SPDIF AV_R AV1_R_IC RI19 CI18 TEST AV1_R_IC...
  • Page 36 HDMI2_SDA UART_TX 5V_STB HDMI2_5V DH17 DH16 HDMI1_SDA HDMI1_SDA_IC RH15 HDMI1_SCL RH11 HDMI1_SCL_IC I2C_EN CH15 22ohm-0402-±5%-1/16W UART_RX HDMI2_SCL 22ohm-0402-±5%-1/16W HDMI_ARC_IC 22pF-0402-NPO-±5%-50V HOTPLUG2 HDMI2_SDA RH25 HDMI2_SDA_IC HOTPLUG1 22pF-0402-NPO-±5%-50V DH11 CH19 HDMI2_5V HDMI1_5V HDMI2_SCL RH26 HDMI2_SCL_IC 4K7ohm-0402-±5%-1/16W HDMI2_SDA 4K7ohm-0402-±5%-1/16W HDMI1_SDA RH16 HDMI2_SCL CH21 CH22 I2C_EN HDMI1_SCL...
  • Page 37 RK13 TEST 3.3V_IR 3V3_IR KEY/5V K0/AD RK14 TEST 5V_M TEST TEST LED_R LED_R NC/0ohm-0402-±5%-1/16W NC/0.1uF-0402-X5R-±20%-16V TEST KEY/5V KEY/5V TEST K0/AD K0/AD 3V3_STB 3V3_STB K0/AD KEY0_IN_IC KEY0_IN_IC CNK1 4K7ohm-0402-±1%-1/16W 3.3V_IR NC/SFI0402-240E-2R5PP-LF 1Kohm-0402-±5%-1/16W 0.01uF-0402-X7R-±10%-50V LED_R KEY/5V 3V3_STB RK15 NC/0ohm-0402-±5%-1/16W 22ohm-0402-±5%-1/16W RK16 0.1uF-0402-X5R-±20%-16V IR_DAT_IC IR_DAT_IC 连接插座...
  • Page 38 CT11 CT13 +3.3V_TUNER RT46 +3.3V_TUNER IF_P VIFP_IC VIFP_IC RT34 CT17 RT47 CT26 CT30 IF_AGC IF_AGC_IC RT49 IF_AGC_IC IF_N VIFM_IC VIFM_IC CT52 CT20 CT18 0.022uF-0402-X7R-±10%-16V 10uF-0603-X5R-±20%-6.3V 10Kohm-0402-±5%-1/16W NC/0.1uF-0402-X5R-±20%-16V GZ1005U102CTF(1000ohm-300mA) NC/27pF-0402-NPO-±5%-50V GZ1005U102CTF(1000ohm-300mA) NC/470ohm-0402-±5%-1/16W GZ1005U102CTF(1000ohm-300mA) 47pF-0402-NPO-±5%-50V 47pF-0402-NPO-±5%-50V 47pF-0402-NPO-±5%-50V 47pF-0402-NPO-±5%-50V 0.1uF-0402-X5R-±20%-16V 0.1uF-0402-X5R-±20%-16V 470pF-0402-X7R-±10%-50V 开关二极管 ,DIO SW D2,200mA,70V,SOT-23,SMD,BAV99,BLUE ROCKET 顺络...
  • Page 39 3V3_DVDD_AMP 12/16V CA20 CA41 100Kohm-0402-±5%-1/16W AMP_RESET_IC AMP_RESET 100Kohm-0402-±5%-1/16W AMP_RESET_IC 1uF-0402-X5R-±20%-16V 5R1ohm-0402-±5%-1/16W 3300pF-0402-X7R-±10%-50V 1uF-0402-X5R-±20%-16V 5R1ohm-0402-±5%-1/16W 470ohm-0402-±1%-1/16W 47Kohm-0402-±5%-1/16W 100ohm-0402-±5%-1/16W AUMCK_OUT_IC RA13 AMP_I2S_MCK 470ohm-0402-±1%-1/16W NC/NC/220pF-0402-NPO-±5%-50V RA51 AUMCK_OUT_IC 铝电解电容 ,CAP AL,35V,220uF,±20%,HV,8×10.5,SMD,TP,CapXon 4K7ohm-0402-±5%-1/16W 3300pF-0402-X7R-±10%-50V 47Kohm-0402-±5%-1/16W 铝电解电容 ,CAP AL,35V,220uF,±20%,HV,8×10.5,SMD,TP,CapXon NC/0.1uF-0402-X5R-±20%-16V AUWS_OUT_IC AMP_I2S_LRCLK NC/NC/220pF-0402-NPO-±5%-50V AUWS_OUT_IC 陶瓷电容 ,CAP MC,25V,10uF,±10%,X5R,0805,SMD,TP 陶瓷电容...
  • Page 40 3V3_M CNL1 NC/100ohm-0402-±5%-1/16W R136 NC/NC/10Kohm-0402-±5%-1/16W NC/NC/KMBT3904 VCC_PANEL R138 PANEL_I2C_WP R141 R144 TCON5 3V3_M TCON5 NC/0ohm-0402-±5%-1/16W NC/4K7ohm-0402-±5%-1/16W NC/0ohm-0402-±5%-1/16W NC/NC/1K or 4K7 R139 R140 NC/4K7ohm-0402-±5%-1/16W 0ohm-0402-±5%-1/16W NC/4K7ohm-0402-±5%-1/16W 4K7ohm-0402-±5%-1/16W 0ohm-0402-±5%-1/16W 4K7ohm-0402-±5%-1/16W 0ohm-0402-±5%-1/16W R152 D_Fomat0 NC/0ohm-0402-±5%-1/16W L/R_O_IC D_Fomat0 D_Fomat1 NC/0ohm-0402-±5%-1/16W LR_SYNC_IC R71 D_Fomat1 PCID_EN NC/0ohm-0402-±5%-1/16W 3D_EN_IC PCID_EN...

  • Page 41: Trouble Shooting Diagram

    Trouble shooting diagram Terms: 9IR: Infrared Receiver 9RC: Remote Control 9IR logic: IR blink with RC action 9LVDS: Low Voltage Differential Signal, output from processor and input for panel 9O/C: Open Cell, panel with source board 9BL: Back Light, light source for panel module 9LB: LED (Light Emitting Diode) Bar, light source for BL module 9VBL: Voltage for Back Light (before Boost) 9VLED: Voltage for LED (after Boost)
  • Page 42 1.No power No power LED, RC or Key can not turn on TV. Power LED no light/no change.
  • Page 43 2.No Display / Black Panel Back light is OK, sound is OK, but no picture.
  • Page 44 3.No back light Power LED logic OK, sound OK, but no picture(Different from No Display).
  • Page 45 4.No sound One or all signal source without sound.
  • Page 46 5.Signal source no function One or several source no function.
  • Page 47 6.Abnormal Display OSD NG or picture NG.
  • Page 48 7.No tuning channels DTV or ATV no Channels...
  • Page 49 8.P mode on and burning mode Picture Factory mode on(flash words) changing Burning P mode on mode Press Return Press Menu/ Input/ key on remote Source switch on TV control key pad Appear factory menu on screen Quit burning mode Follow the alignment ...
