Congratulations on your purchase of the Library Ladder Hardware Kit! These instructions will guide you
through the process of building a 7-step (8 foot) ladder. Familiarity with the instructions will make the process
easier to understand and more enjoyable.
Library Ladder
Assembly Instructions
Advertisement
Related Manuals for Rockler Library Ladder
Summary of Contents for Rockler Library Ladder

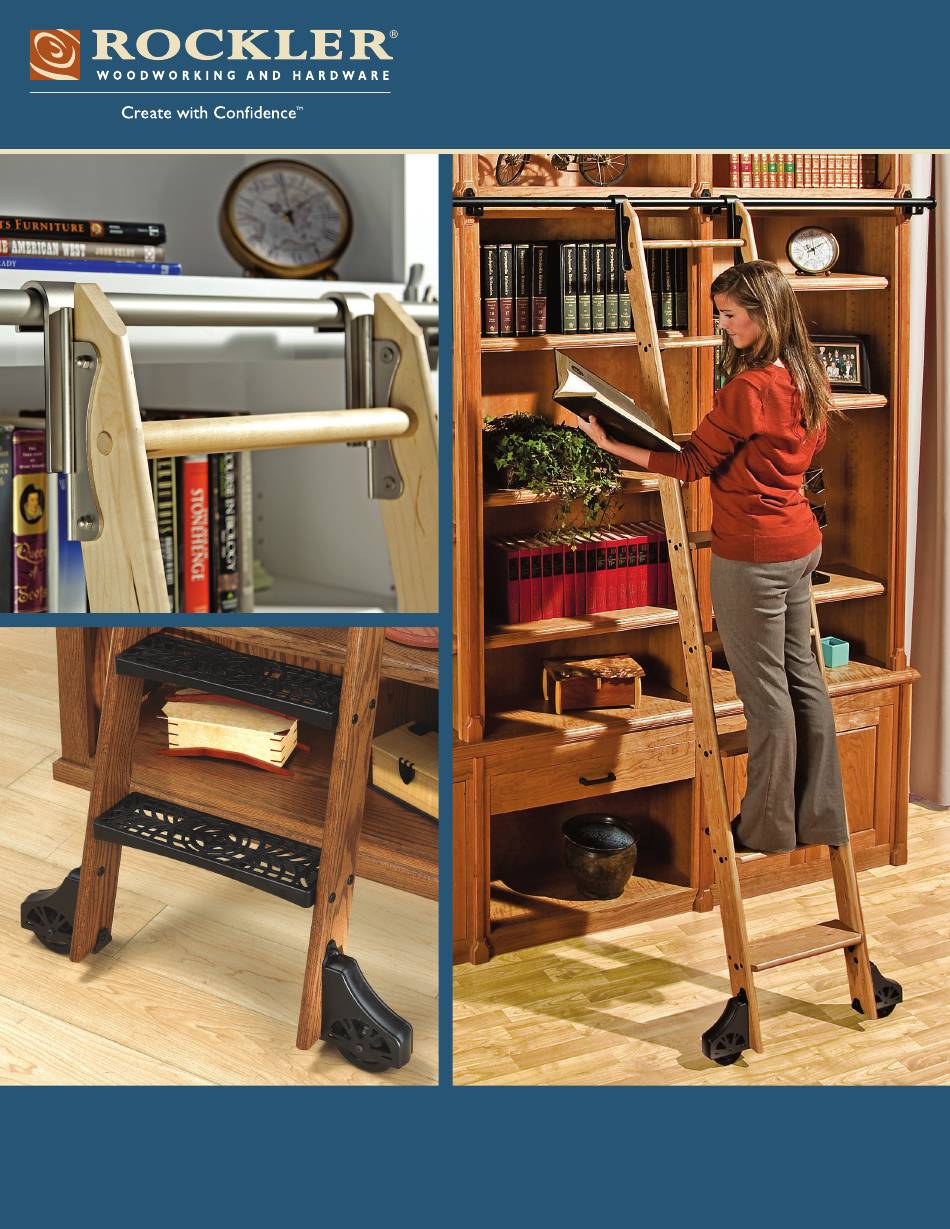

- Page 1 Library Ladder Assembly Instructions Congratulations on your purchase of the Library Ladder Hardware Kit! These instructions will guide you through the process of building a 7-step (8 foot) ladder. Familiarity with the instructions will make the process easier to understand and more enjoyable.
- Page 2 Wooden Step Ladder ⁄ " 1 ⁄ " 32° ⁄ " ⁄ " 12° ⁄ " 9" 3/4" Diameter Note: If ⁄ " attaching the optional aluminum spindle drill a ⁄ " 7/16" diameter hole instead Rail End View 3/4" Bullnose 3/4"...
- Page 3 ⁄ " ⁄ " Diameter 3/4" Diameter ⁄ " 7/8" 1/2" 1/2" ⁄ " Top View ⁄ " 7 Step (8 Foot) Ladder Plan 1. Cut Ladder Rails (1 and 2) to size. Shape edges to a 3/4" radius bullnose. Cut dadoes, 3/4" wide x 1/8" deep.
- Page 4 Cast Metal Step Ladder ⁄ " ⁄ " 32° ⁄ " ⁄ " ⁄ " 12° 9" 7/16" ⁄ " Diameter ⁄ " 3/8" Diameter Rail End View 3/4" Bullnose 3/4" stock flat cut 3/4" ⁄ " ⁄ " ⁄ "...
- Page 5 ⁄ " Cast Step End View 7 Step (8 Foot) Ladder Plan 1. Cut Ladder Rails (1 and 2) to size and shape edges to a 3/4" radius bullnose. 2. Drill 3/8" holes according to plan for mounting the Cast Steps (6). Drill a 7/16" hole for mounting the Aluminum Decorative Spindle (5).
- Page 6 Ladder Track Installation Ladder Track Installation 1. Mount Track Brackets (17) with Pan Head Screws (20) to a secure fixture (bookcase, cabinet, wall, etc.) Space brackets every 32-36 inches along track. Reference the track height diagram on page 7. 2. Measure the width of your fixture to determine the amount of 6' tracks (21) needed.
-
Page 7: Ladder Assembly
Ladder Assembly 3. Drill holes and install Hook Bracket Assemblies (9) to Ladder Rails (1 and 2) using Connector Bolts (15) and Acorn Nuts (16). Center components between Aluminum Decorative Spindle (4). Fig. 3. 4. Dry fit Wheel Assemblies (10) to ladder. Attach ladder to track and place in the climbing position (steps parallel to the floor). - Page 8 8' in one foot increments: Simply add 11 ⁄ " Rockler.com for updates that may not be included on this copy. to the length of your ladder rails and build one more If you have further questions, please contact our Technical step into the ladder structure for each additional foot Support Department, 1-800-260-9663 or support@rockler.com...
