Summary of Contents for Stella III EVO

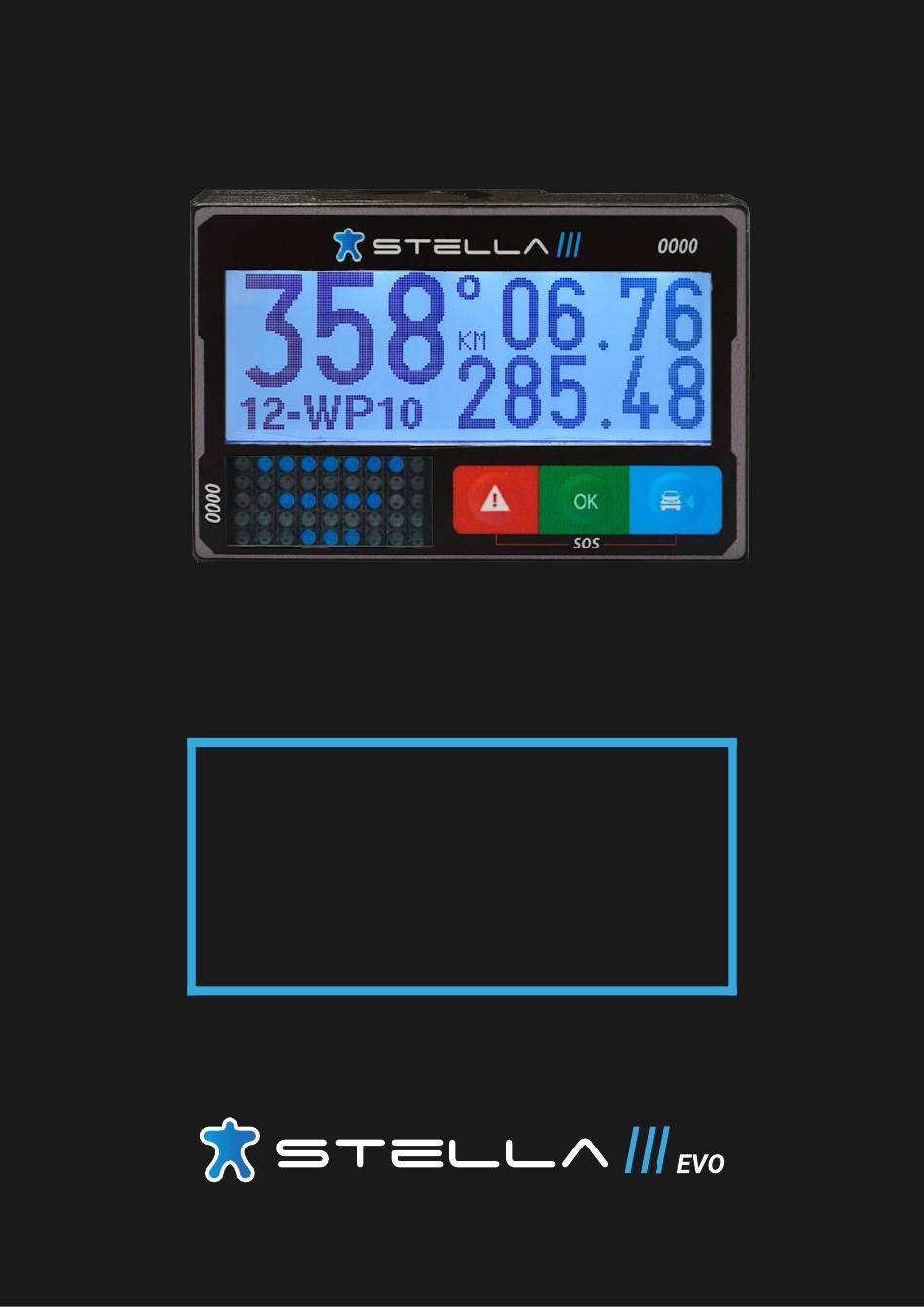

  • Page 1 INSTALL USER MANUAL...
  • Page 2 KIT COMPONENTS 1. Iridium Antenna 2. Power Cord 3. Dual Antenna 4. Base/Mount 5. Adhesive IMPORTANT For the functional tests and verification, all vehicles must have gone through the instal- lation of the mount, power cord, and antennas.
  • Page 3 A 3A fuse (not included) should be connect- ed to the red wire. • Take the cord to the location in which the STELLA III EVO is to be installed. All other wires must be insulated, they cannot touch. BASE/MOUNT •...
  • Page 4 DUAL ANTENNA Where to place the antenna. 115,2 mm The Anube dual external anntena improve the Stella EVO overtaking system. 14 mm 54 mm The antenna should always be placed on top of the car. The ideal position is above the co-pilot zone.
  • Page 5 INSTALLATION EXAMPLES...
  • Page 6 WRONG WAY...
