Johnson Controls T-5800 Series Installation And Calibration

Dual input receiver-controllers

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

The T-5800 Series Receiver-

Controllers are designed for use

with remote temperature, humidity,

or pressure transmitters

(connected to the controlled

variable "CV" input) to provide

precise control of pneumatic

devices. The T-5800-3 is a dual

input proportional-only receiver-

controller with field selectable

local or remote set point. The

T-5800-4 is also a dual input

receiver-controller with field

selectable local or remote set

point; however, this model

provides proportional plus integral

(PI) control. In addition, an

automatic/manual integral control

cutout feature is incorporated into

the T-5800-4 design. Utilizing the

fan "F" connection, this feature

allows the system to start up using

proportional-only control thus

keeping the system from going out

of control on startup, as is inherent

to PI (automatic reset) controllers,

when the system has been off for

some time. Refer to Product Data

T-5800 for instrument

specifications and additional

details.

Installation

The T-5800 Series Receiver-

Controllers are designed for

surface mounting; refer to Fig. 3

for space requirements and

mounting details. All air line

connections are made to the units

through two snap-on input/output

connectors which have barbed

fittings for 1/4 in. O.D. polytubing.

Both dual input models are

furnished with a clear cover, snap-

on air connectors, a double

.007 in. orifice jumper, an

additional set point dial sticker

marked with 50 graduations, and a

yellow remote indication set point

dial sticker.

Part No. 24-7029-0, Rev. —

Code No. LIT-7171320X

T-5800-3 and T-5800-4

Dual Input Receiver-Controllers

Installation and Calibration

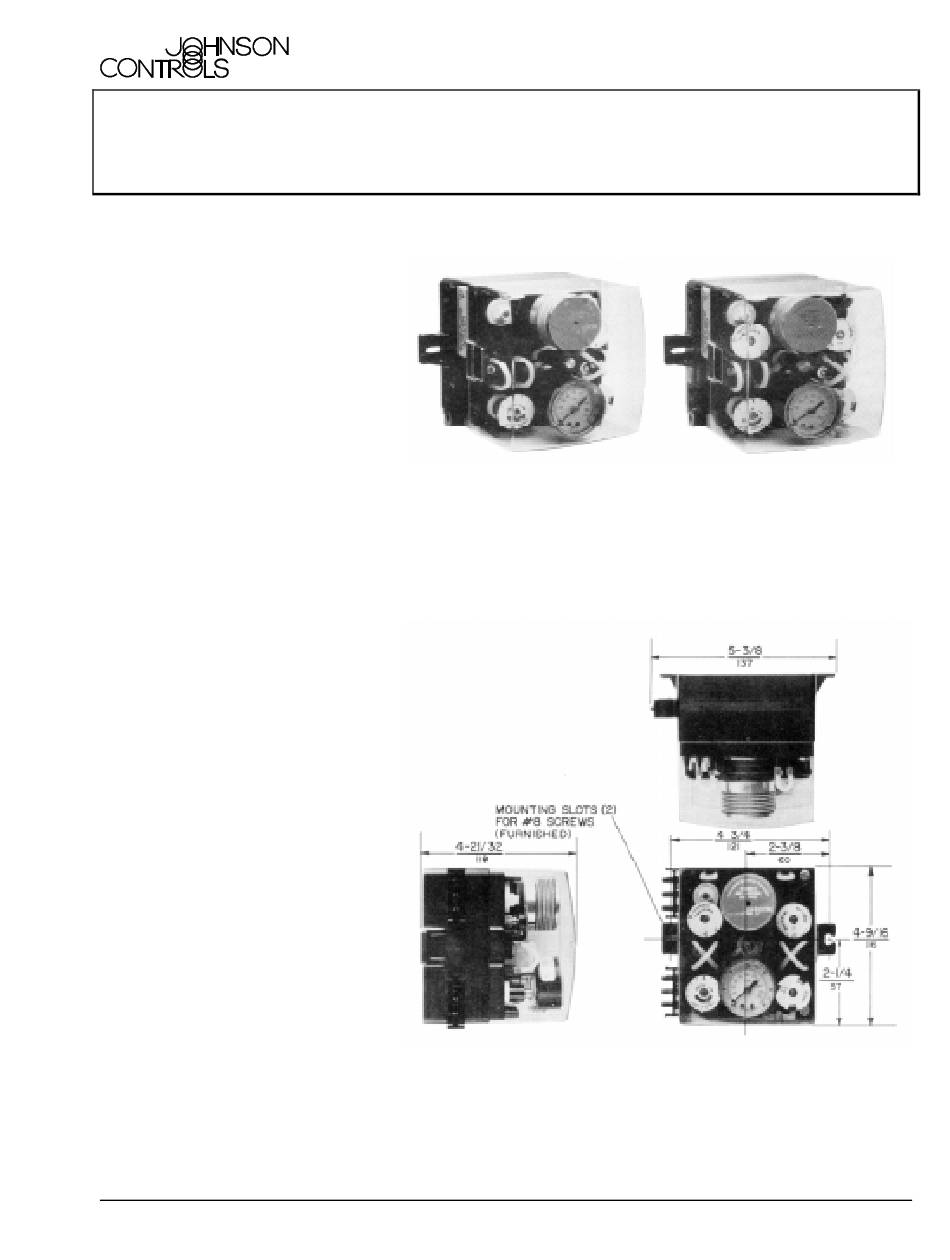

Fig. 1: T-5800-3 Dual Input

Proportional Receiver-Controller

Fig. 3: T-5800 Series Dimensions in./mm and Mounting Details

Pneumatic Control Manual 717.1

Receiver-Controllers Section

Technical Bulletin T-5800-3/-4

Issue Date 0586

Fig. 2: T-5800-4 Dual Input

PI Receiver-Controller
