Summary of Contents for Svan SVL7148

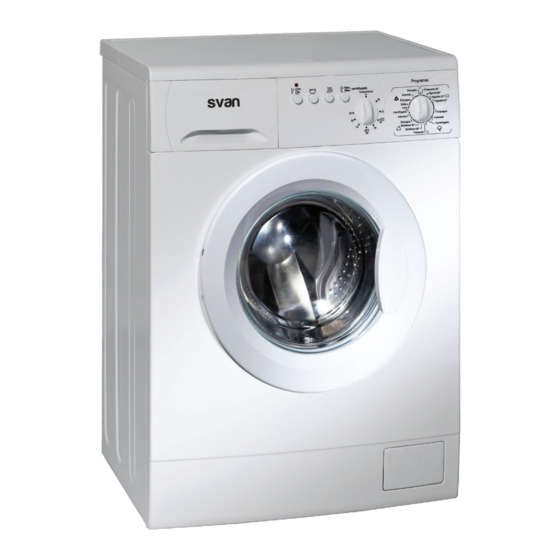

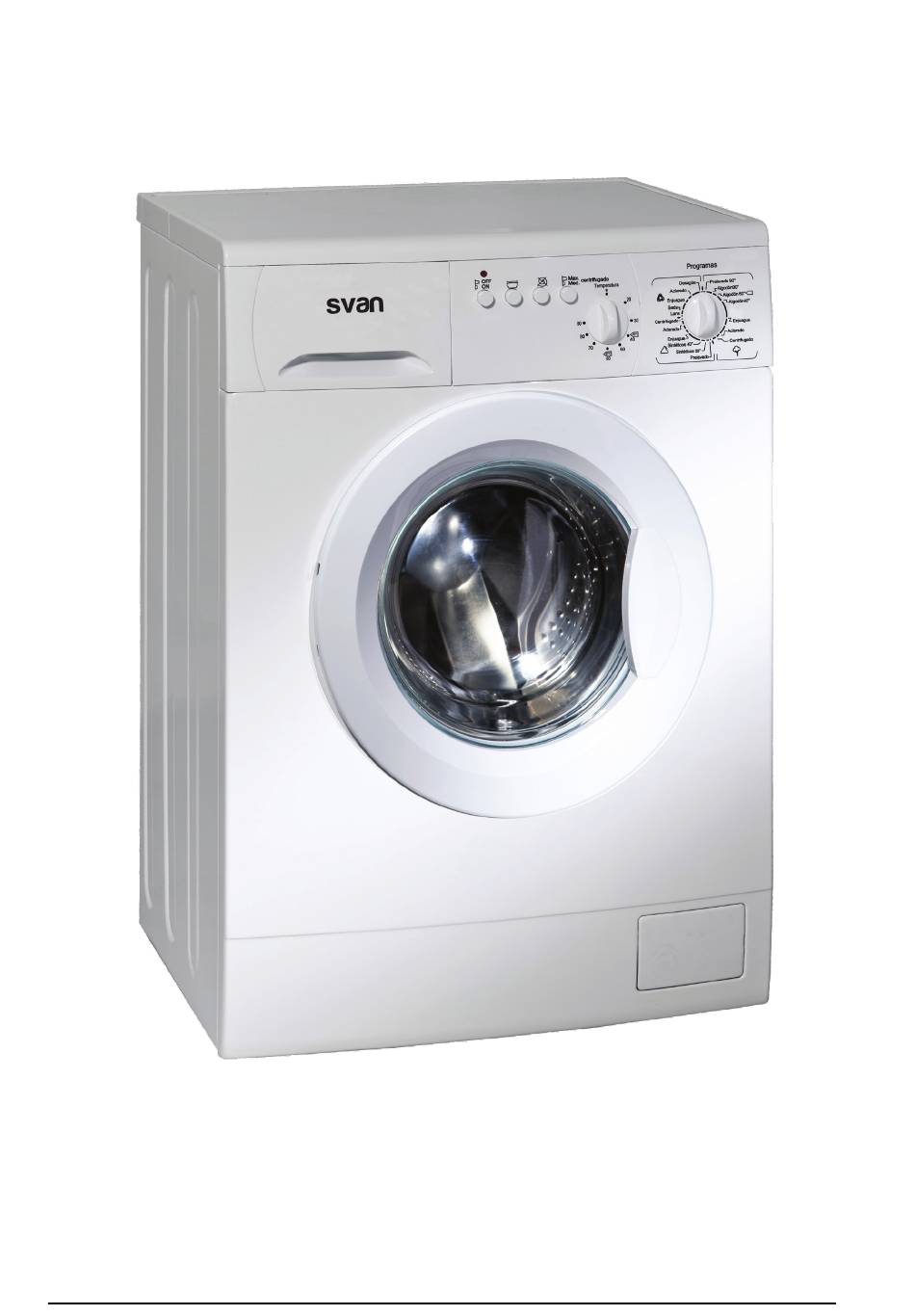

- Page 1 Washing machine User manual Read the instructions for use carefully before proceeding with the installation, installation and commissioning of the device so as to avoid damage to yourself and the device.
- Page 3 Dear Customer, First of all we would like to thank you for choosing us and purchasing an original Italian product. This product has been fully manufactured in ITALY with the best materials, in ac- cordance to RoHs and Reach regulations with special attention to human health and environment.
- Page 4 YOUR CONTRIBUTION TO THE PROTECTION OF THE ENVIRONMENT DISPOSING OF PACKAGING in high R&D investments which are required in the fi elds of ecology. The packaging has the purpose of protecting For the waste management and disposal of the good from any possible damage which the household appliances, the manufacturer could occur during transport operations.
-
Page 5: Table Of Contents
INDEX Index..............5 Safety instructions and warnings....6 Installation............10 Control panel..........14 Description of the commands....15 Washing programs, duration and options...16 Product details..........18 After sale service........20 Warranty certificate........21 Possible remedies........23... -
Page 6: Safety Instructions And Warnings
SAFETY INSTRUCTIONS AND WARNINGS This washing machine complies washing cycle a day. Some with current safety norms and example are: regulations. If improperly used, it • staff kitchen areas in shops, can provoke damage to people offi ces and other working and/or goods around you. - Page 7 Children under the age of 3 must be sure that the power supply be supervised while the appliance is in line with the data (power, is in function. frequency) indicated in the technical data label. If any doubt, CAUTION! consult a qualifi ed electrician. When washing at high The electrical safety of temperature, be aware...
- Page 8 possible damage that could arise. If without a prior authorization by the not properly repaired, the user may manufacturer. Before connecting be exposed to serious danger, for the draining hose to the sink, which the manufacturer cannot be make sure that the water is easily held liable.
- Page 9 the damaged parts may damage the garments. Garments that have been pre-treated with solvents or products containing solvents, have to be carefully rinsed with clean water before washing in the appliance. Never use detergents with solvents (i.e. petrol, trichloroethylene). These products may damage some components of the appliance and produce toxic vapors which could potentially...
-
Page 10: Installation
INSTALLATION GENERAL INFORMATION Seal the holes with the appropriate caps provided as shown in fi gure 3. The assembled group of the appliance is Figure 3 secured by 4 fi xing screws (which protect it during handling and transport operations), fi gure 1. - Page 11 After regulating the feet, since vibration may WATER SUPPLY INLET HOSE modify its level, it is advisable to tighten the docking nut on the feet until it is blocked as The water supply inlet hose has to be connected to a cold water tap with threaded shown by the fi gure below.
- Page 12 WATER DRAINAGE ELECTRICAL CONNECTION The appliance is supplied with a The water drain hose can be positioned in three different ways (Figure 9): power cable and a schuko plug for the connection to the ~ 230V 50Hz 1. On the edge of a sink, using a U-hook AC grid .
- Page 13 THIS APPLIANCE REQUIRES AN If the wall sucket is not available, it is the EARTH WIRING. customer’s responsibility and obligation to install it by a qualifi ed electrician. For individual personal safety and of the environment, this appliance must be Do not change/modify the electrical connected to the mains with an earth- power cord and do not use adaptors or...
-
Page 15: Description Of The Commands
DESCRIPTION OF CONTROLS 8. Programme selection knob 1. Detergent drawer Turn the knob clockwise to select the desired It consists of three compartments. For any type washing programme. of program, the detergent must be poured into the central compartment. N.B. This selection must be performed with The far left compartment, must be loaded with the machine in its off. -
Page 16: Washing Programs, Duration And Options
WASHING PROGRAMS, DURATION AND OPTIONS The programmes Intensive 60°C and 40°C are test programmes (cotton standard 60°C) and (cotton standard 40°C) used to evaluate the efficiency of the appliance. These programmes are the most efficient in terms of combined consumption (energy-water) and are indicated for washing cotton laundry which is normally soiled. - Page 17 Synthetic Programme Nominal Max dry Type of Programme Description of cycle capacity load *Cycle time laundry (kg) (kg) Mixed and Prewash at 60°C, main Prewash light stained wash, rinse and final 1 h 45 min. synthetics spin Sintetici delicati Main wash at 60°C, Quotidiano 60°...
-
Page 18: Product Details
PRODUCT DATA SHEET IN ACCORDANCE WITH EU DIRECTIVE 1061/2010 Consumption data - Standard programme(5) Annual Annual Water Water Energy Cotton Cotton Cotton Stand Stand Capacity energy water consump. consump. Type class 60° 60° 40° (kg) consump. con- per cycle per cycle full load 1/2 load full load... - Page 19 Standard programme time (5) Dimension and weight Maxi- Noise in Noise in Water Cotton Spinning Cotton Cotton washing spinning consump. 40°C efficiency 60°C 60°C Height Width Length spin phase phase per cycle full (4) - D % full load 1/2 load (cm) (cm) (cm)
-
Page 20: After Sale Service
AFTER SALES SERVICE REPAIR If any repairs are required, contact an authorised after sales service calling the number indicated. Always specify the model of the appliance and its serial number as reported on the rating plate on the cabinet visible on the upper side of the door when it is opened and/or on the back side of the washing machine. -
Page 21: Warranty Certificate
WARRANTY CERTIFICATE 1. Terms and Conditions of the Conventional Warranty This conventional warranty is to be considered additional and not replacing ant other right of the customer, being understood that customer is exclusively the physical person beyond any managerial or professional activity, who uses the household appliance for domestic/private use - ex Legislative Decree 6 September 2005, n. - Page 22 b) Operations of installation and assembly (for example: fault connection/power supply; lack of the protective earth connection; inadequate water supply/drain; removal of the fi xing brackets on the tub; any possible regulation such as the fl oor level under the household appliance). c) An incorrect, improper or incomplete installation, lack of capacity to use by the Consumer or Installer, if there is no enough place to operate around the product (at least 3 cm on the upper side, 8 cm on both sides and 8 cm on the rear) or excessively high/low temperature of the environment (in case the...
-
Page 23: Possible Remedies
POSSIBLE REMEDIES Problem Possible solution • Make sure the power plug is inserted. • Make sure there is power in the socket. The washing machine does not • Make sure the ON-OFF button is on and that the switch on program knob is in position 1 Cotton.
