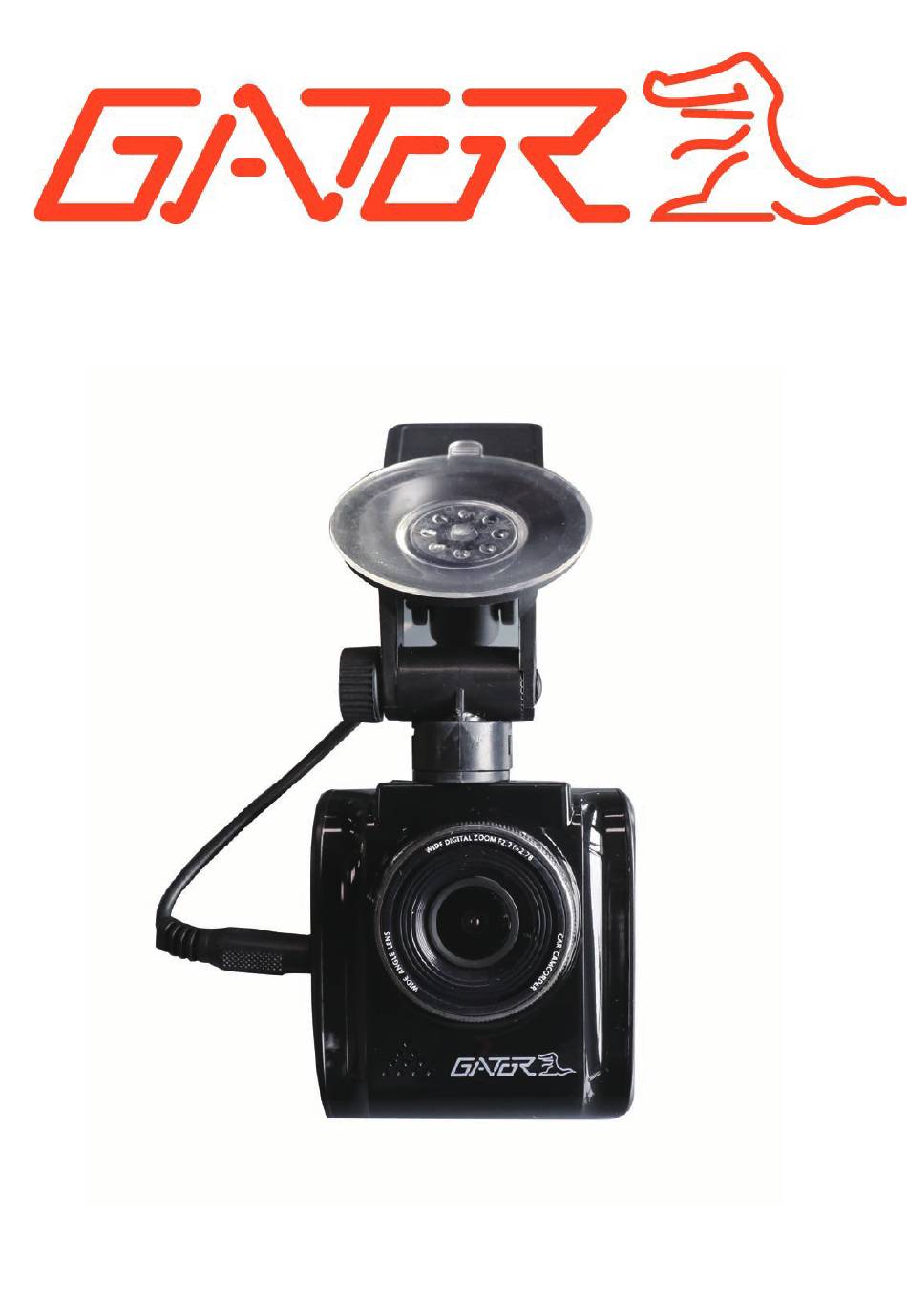

- Page 1 USER G UIDE G HDVR369 ...
- Page 2 Introduction Thank you for purchasing the Gator HD Digital Video Recorder 369. This product is designed to provide high definition recording of your trips for security and evidence in the case of an incident. Being portable, this convenient and durable multi-vehicle driving recorder can be used in a variety of situations for video recording.
- Page 3 Package Components: GPS Mounting Gator Bracket GHDVR369 USB to Mini USB Car Charger GHDVR369 Software User Guide...
-
Page 4: Product Structure
Product Structure: 1) Lens 8) Menu/Mode 2) Speaker 9) Up 3) Mini USB 10) Down 4) GPS 11) Ok 5) Power Button 12) AV Out 6) Reset Button 13) Micro SD 7) LCD 14) Mounting Bracket Slot... - Page 5 Button Instructions Power Button: When the DVR is turned off, press it once to turn it on. While the system is on, hold down the power button to turn it off. MENU/MODE Button: Pressing this button once will open the menu. Pressing the menu button again while in the menu will change to the second settings tab.
- Page 6 Power Indication Light: When the device is turned on, a blue indicator will light up. When the device is recording, it will be flashing red. When the device is charging, the light will glow red. Battery Charging Indication Light: After connecting the DVR through USB, the indication lamp will glow red meaning it is charging. The light will automatically turn off after fully charged.
- Page 7 Basic Instructions for Video and Photo Operation Powering on and off the device: To turn on the DVR press the power key once, the red indication lamp will be light up if it is connected to a power source. To turn it off, hold down the power button and the device will turn off.
-
Page 8: Video/Photo Playback
Photo Mode Hold the Menu/Mode button for 2 seconds and then let go to switch to photo mode. There is a camera icon at the top left corner of the LCD to signify you are on photo mode. To take a photo, press the OK button. - Page 9 Menu Settings Press the Menu button to get into the menu settings. You can navigate the settings menu by using the Up/Down buttons. To change or edit a selected setting, press the OK button. Press the menu button again to get out of the menu settings. USB Mode When connecting a USB cable with a PC, the DVR will present three options.
- Page 10 Press the menu button again until you see the following Spanner and screwdriver. (SETUP MENU) Date/Time: This feature will allow you to change the year, month, day and time. To change the date simply use the arrow keys to go up or down. Press the OK button to move onto the next section. Again, use the arrow buttons to go up or down.
- Page 11 GPS Function (Windows only) Connect the GPS module cable on the mounting bracket to the DVR in the GPS port. (NOTE: To avoid any possible signal interference, make sure the DVR is away from any other car audio equipment.) This symbol means that the DVR is ready to be connected to the GPS This red symbol signifies that the GPS is connected and is searching for a signal The icon will become green when the GPS is connected successfully.
- Page 12 Product Specification Product Feature HD Camera, HD Recording Built-in(Used to save the file in case of an emergency, and cannot be G-sensor deleted if the collision of vehicles happen) LCD Size 2.4” TFT LCD Lens 170 Degree Wide Angle English/French/Spanish/Portuguese/Dutch/Italian/Simplified Language Chinese/Traditional Chinese/Russian/Japanese/Polish Video Format...
- Page 13 Frequently Asked Questions Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording Due to the high amount of HD video data being recorded, please use a high speed micro SD card.
- Page 14 Technical Assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
