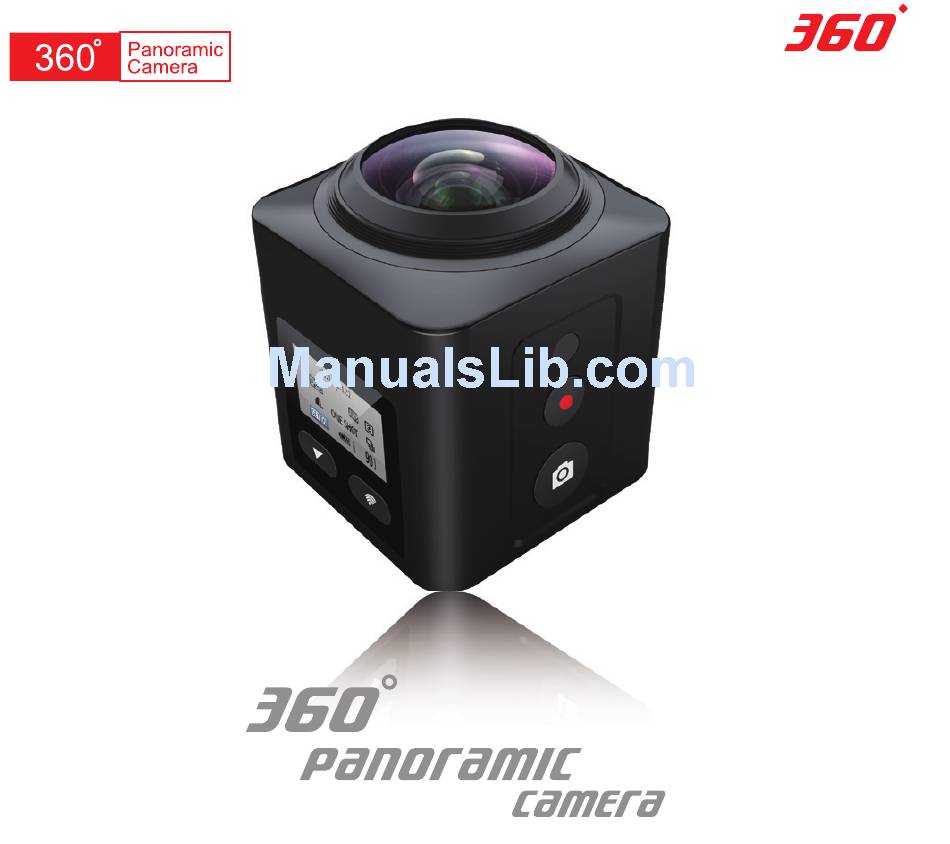

Gator 360 User Manual

360 panoramic camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 360 and is the answer not in the manual?

Questions and answers

Related Manuals for Gator 360

Summary of Contents for Gator 360

  • Page 2 Warning 1.Keep it safe from falling and dropping. 2.Keep it distance from any strong magnetic interference objects like electrical machine to avoid strong radio waves that might be damaging the product and affect the sound or image quality. 3.Don’t expose the product directly to high temperatures and strong sunlight. 4.We recommend using high quality Micro SD Card for the best results.
  • Page 3 Camera introduce： Lens Speaker WIFI Indicator LCD display ON/OFF/Mode Switch wifi/up down Sound hole MicroSD card port Micro USB port HDMI port Screw thread hole Battery cover...

  • Page 4: Insert The Card

    Operation instruction 1. Insert the card Firstly ,insert a Micro SD card .as followings: Notice : Pls turn off the camera when plug in /take out card Support Class6 or above TF card, suggest Cass 10 or above high speed card for professional recording.

  • Page 5: Battery Charging

    2. Plug in and take out the battery Slide down the battery cover could open it. According to the P/N sign and arrow direction , install the battery into camera correctly. 3.Battery charging Support PC USB , standard USB charger and car charger for charging. 4.

  • Page 6: Mode Switch

    WIFI Indicator ON/OFF/Mode(Charge Indicator) OK(Video Indicator) 5. Mode switch : Turn on the camera , press on/off key again and again , it will show cycling recording/ Photo/Slow motion/setting mode. As follows:...

  • Page 7: Video Mode

    6. Video mode: At recording mode , short press “OK”key to start recording. Then LCD screen will show recorded time and recording icon. Short press”OK”key again ,camera stop recording and save the video file. Short press “down”key to enter recording setting.

  • Page 8: Picture Mode

    7. Picture Mode: At Picture mode , aim the object you want to shot ,press”OK”key to take picture. Pictures will be saved automatically.
  • Page 9 8. Slow motion photography mode: At slow motion photography mode ,press”OK”key to record. Recording resolution (1440p/60fps), enter into slow motion recording, The top left corner of the screen will show slow motion recording icon. Video resolution is 1440P60fps. Watch the video in playback shows slow motion video. Short press “down”...
  • Page 10 9. Setting: Press “OK”key to enter setting mode ,you could set some specification and function for recording ,taking picture and language. 10. Connect PC : Choose “USB Flash disk”to manage TF card data. Choose “PC Camera”, charge and use PC Camera function at same time. Choose “Charge mode”, just charge for DV.

  • Page 11: Hdmi Output

    11. HDMI output : Under camera turn on , use HDMI cable (optional) to connect Television(HDTV). You could playback picture and video on TV. 12. Indicator： 1.Working (Blue) Blue light flickers while recording; Blue light lasts when exited recording; Blue light lasts while replaying the file; 2.WIFI (Yellow) Yellow light flickers once WIFI opened;...
  • Page 12 Short-press to select next menu when it is on Settings state; 14.WIFI Connection: 1. Please install XDV 360 APP in your device before using WIFI; 2. Long-press on WIFI/UP select button when device turned on, it will show WIFI icon and the indicator light on;...

  • Page 13: Specification

    Specification: Allwinner V3 SONY IMX179 Sensor 2448×2448 30fps (1:1) 2048×2048 30fps (1:1) 1440×1440 60fps (1:1) Video Resolution 1440×1440 30fps (1:1) 1072×1072 60fps (1:1) 1072×1072 30fps (1:1) 16M(4096X4096) (1:1) 12M（3264*3264) (1:1) Photo Resolution 8M(2880*2880) (1:1) 5M(2448x2448) (1:1) Lens 220°FOV Exposure -3， -2， -1， 0， 1， 2， 3 White Balance auto, sunny, cloudy, incandescent, fluorescence Capture Mode...
  • Page 14 Slow Motion 1440p60fps Screen 0.96" Lattice screen LCD Remote controller Support RF 2.4G(optional） Image Format JPEG Video Format Video Compression H.264 Data connection Micro USB2.0, HDMI Extended Memory MAX to 128G, Micro SDHC Blue: working Yellow: WIFI Indicator Light Red: Turn on/Charging Microphone Built-in Speaker...
  • Page 15 English, Simple Chinese, Traditional Chinese, Korean, Russian, French, German, Italian, Language Spanish, Portuguese, Japanese Windows XP/7/8.1/10/Vista and Mac 10.5 Operating System or above Size 45mm*44mm*56mm 63g（device only）,80g（including battery Weight and memory card） Waterproof 30M working undersea with waterproof case Outdoor activity，bicycle，diving, housing， Application aerial image, show，VR virtual magic glass Simple description of the problem and the solution...

  • Page 16: Fcc Statement

    scenes and objects automatically, and make the pictures taken to be a video within several minutes in order to display the video which needs a long time to process; It removes the inconvenience caused by long time recording; (Tips: The above features may change, subject to the actual prototype without notice) FCC STATEMENT : This device complies with Part 15 of the FCC Rules.
  • Page 17 of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement.
