Using this device without understanding this product's operation
and care may lead to injury. If you do not understand how to use
this device and do not receive proper training, do not use this
product.
Mar-11
AWG Fittings LLC

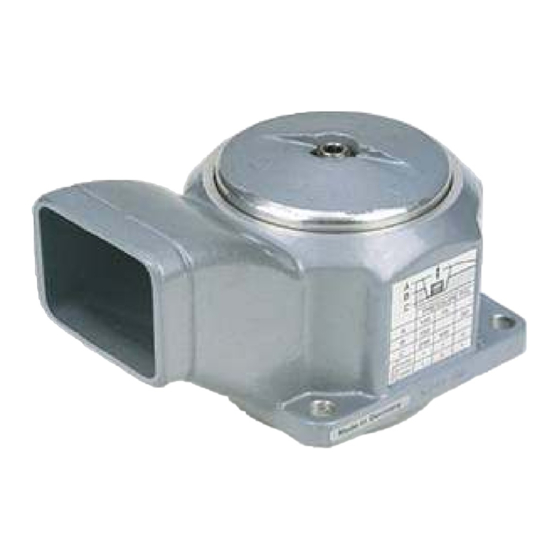

Pressure Relief Valve
Up to 200PSI.
Product number 30277633
Read this instruction manual before use.
43 Summer St.
South Walpole, MA 02071
Tel (508)-850-5260
Fax (508)-850-5262
www.awg-fire.com
1
Advertisement
Table of Contents
Related Manuals for AWG 30277633
Summary of Contents for AWG 30277633
- Page 1 Fax (508)-850-5262 www.awg-fire.com Pressure Relief Valve Up to 200PSI. Product number 30277633 Read this instruction manual before use. Using this device without understanding this product’s operation and care may lead to injury. If you do not understand how to use this device and do not receive proper training, do not use this product.
- Page 2 AWG Fittings LLC warrants to the original purchaser and all subsequent purchasers of the AWG Fittings LLC products that the product is free from defects in material and workmanship during a one (1) year period from the date of its sale by AWG Fittings LLC.
- Page 3 Check for damage or worn coupling connections. Damaged or worn connections may become disconnected under pressure. Remove from service to be repaired by an AWG certified repair facility. For use with fresh or salt water, with or without firefighting foam.
- Page 4 43 Summer St. South Walpole, MA 02071 3.0 Overview Tel (508)-850-5260 Fax (508)-850-5262 www.awg-fire.com Dimensions: Construction: Aluminum body and Height: 4.3 in (110 mm) anodized aluminum piston. Length: 6.29 in (160 mm) Depth: 4.25 in (108 mm) Weight: 3.5 lbs (1.6 kg)
- Page 5 South Walpole, MA 02071 4.0 Operation Tel (508)-850-5260 Fax (508)-850-5262 www.awg-fire.com Setting the PRV. Incorrectly setting the pressure relief valve may result in the valve opening to soon and creating inadequate water flow or to late resulting in over pressurizing the hose line or appliance. Be sure to test your setting before placing the unit in service.
- Page 6 South Walpole, MA 02071 4.0 Operation Tel (508)-850-5260 Fax (508)-850-5262 www.awg-fire.com This relief valve has one (1) center adjustment screw for setting the pressure for the relief valve. The relief valve has 3 settings, 100 PSI, 150 PSI, and 200 PSI.
- Page 7 The relief valve should open and discharge water from the PRV. Allow water to flow freely from the valve to remove dirt and debris. If no water is flowing from the relief valve, the relief valve will need service at an AWG Fittings, LLC facility. Mar-11...
- Page 8 If the relief valve fails to open when pressure rises above the set level the relief valve should be returned to AWG Fittings, LLC for service. Mar-11...
