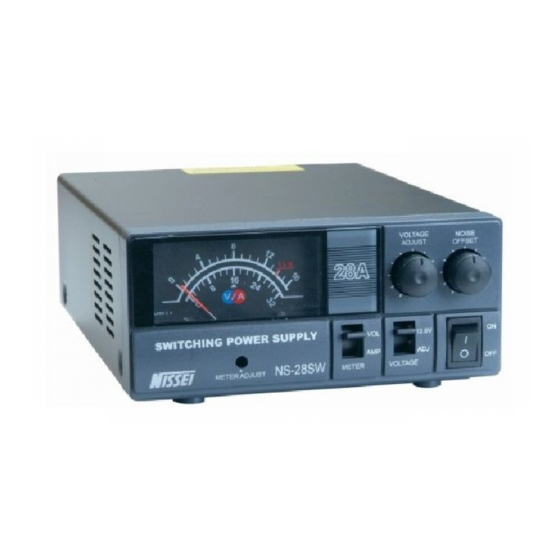

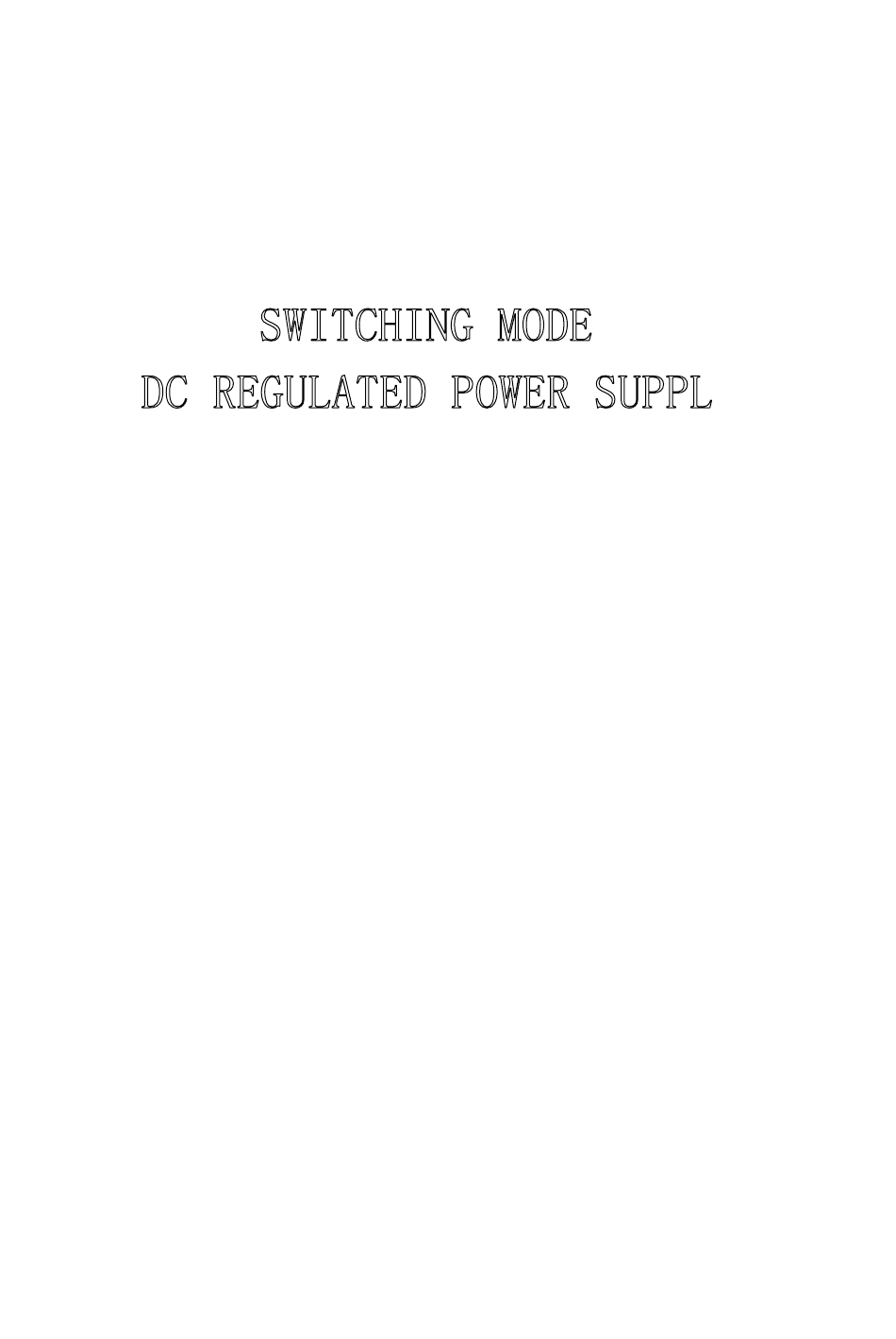

- Page 1 SWITCHING MODE DC REGULATED POWER SUPPLY NS-28SW INSTRUCTION MANUAL...
- Page 2 2. Noise INTRODUCTION pulse NS-28SW is an efficient，compact，and light-weighted is des switching power supply. It is designed to minimize the noise be var for the radio communication equipment. Even when the noise 3. Voltag occurs，it can be eliminated by the Noise-offset control.
- Page 3 2. Noise off-set volume control：Adjust it to eliminate the pulse noise of the switching power supply. This function t-weighted is designed for radio communication.（Effectiveness may the noise be vary because of the frequency and mode.） the noise 3. Voltage adjustment: Adjusts voltage between 9.0 and 15.0 t control.
- Page 4 7. fuse： 8. Output terminal：28A max; Red positive black negative. 8. Meter： 9. Cooling fan 9. Dimensi 10.FUSE：If you want to change FUSE F1, please use the not inclu screwdriver and pull out the cover to replace. 10 .Weigh CAUTIO 1.
- Page 5 7. fuse： ck negative. 8. Meter： single volt/current meter，back-lit 9. Dimensions：150（W）×70（H）×200（D）mm（Projections e use the not included） ace. 10 .Weight；approx.1.5kg CAUTION 1. Even though the chassis of the unit is negatively grounded，use correct terminals to connect cable. 2. When plugging the unit into a wall outlet，it must be turned off.
- Page 6 9. Before replacing a fuse make sure that the unit has been turned off. Be sure to use the specified type of fuse. 10.Make sure the product is always suitably grounded to prevent electric shock and to reduce noise. 11.Never disassemble，modify, and touch the inside of the unit unnecessarily.
