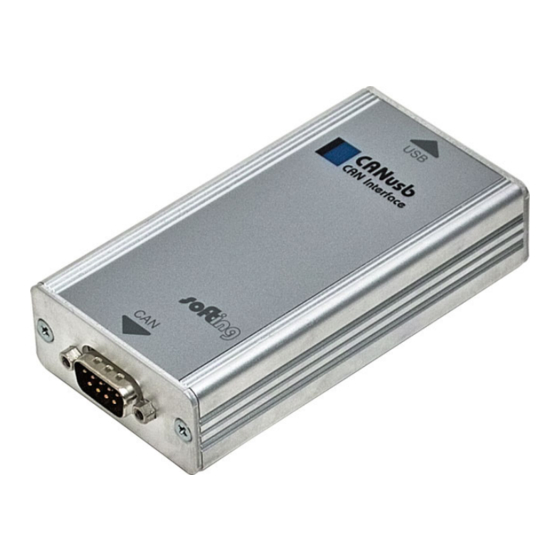

Softing CANusb Hardware User Manual

Download this manual

CANusb

Hardware User Manual

Part number: CANUSB

Information in this document is subject to change without notice.

Softing Industrial Automation GmbH

Richard-Reitzner-Allee 6

D-85540 Haar

Tel.: (++49) 89/4 56 56-0

Fax.: (++49) 89/4 56 56-399

http://www.softing.com

V1.01.01

Need help?

Do you have a question about the CANusb and is the answer not in the manual?

Page 1 Softing Industrial Automation GmbH Richard-Reitzner-Allee 6 D-85540 Haar Tel.: (++49) 89/4 56 56-0 Fax.: (++49) 89/4 56 56-399 http://www.softing.com CANusb Hardware User Manual Part number: CANUSB © Copyright Softing Industrial Automation GmbH Information in this document is subject to change without notice. V1.01.01...
Page 2 • Windows7 (32 or 64 bit version), Windows Vista or Windows XP installed 1.2 Software installation The CANusb software is part of the “CAN Drivers and API” CD which is also available from the download section at www.softing.com. • Insert the CD in your PC’s CD/DVD drive.
Page 3 N.C. D-Sub connector N.C. NOTE: Softing also offers a CAN Low-speed variant CANusb-CAR that connects to CAN networks compliant to CAN Low Speed specification. Please contact Softing Automotive sales for more details. 3 CE Information This device complies with the requirements of the EC directive 2004/108/EC "Electromagnetic Compatibility"...
Page 4 5 Technical data • Unit: USB interface • CPU: SAB-C165 • Memory: 256 kbytes SRAM • Supported USB rate: full speed (12 Mbit/s) • USB connection: connector type USB-B, incl. USB cable (A-B, 1m) • CAN controller: SJA1000 • CAN interface: galvanically isolated (500V) CAN high speed according to ISO 11898-2 •...
