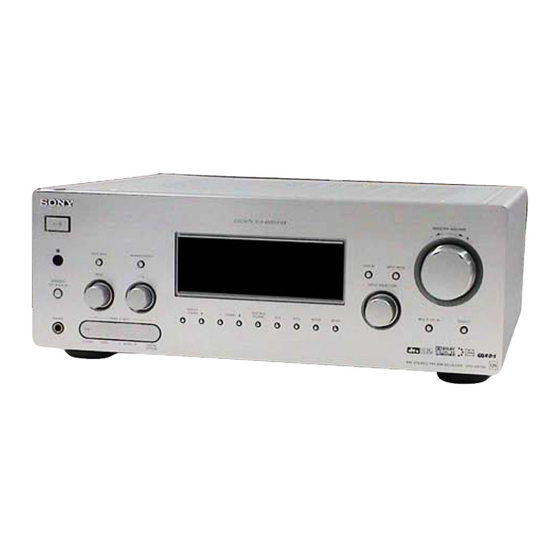

Sony STR-DB798 Easy Setup Manual

2-630-429-01(1)
FM Stereo
FM-AM Receiver
STR-DB798
Easy Setup Guide
This Easy Setup Guide explains how to connect the DVD player, TV, speakers, and sub
woofer so you can enjoy multi channel surround sound from the DVD player. For details,
refer to the operating instructions supplied with the receiver.
Setting when using DVD player or "Play Station 2"
When you connect DVD player or "Play Station 2", perform the following settings on each
component.
DVD player*
1
Select "AUDIO SETUP" in the setup display.
2
Set "AUDIO DRC" to "WIDE RANGE".
3
Set "DIGITAL OUT" to "ON".
4
Set "DOLBY DIGITAL" to "DOLBY DIGITAL".
5
Set "DTS" to "ON".
* The above setting is an example of Sony DVD player.
"Play Station 2"
1
Select "AUDIO SETTING" in the setup display.
2
Select "AUDIO DIGITAL OUTPUT".
3
Set "OPTICAL DIGITAL OUTPUT" to "ON".
4
Set "DOLBY DIGITAL" to "DOLBY DIGITAL".
5
Set "DTS" to "ON".
"Play Station 2" is a trademark of Sony Computer Entertainment.
Note
When connecting a DVD player, be sure to connect to analog (AUDIO L/R) jacks,
not only digital (COAXIAL or OPTICAL) jacks.
If no sound comes out
Press INPUT MODE repeatedly to select "AUTO IN".
Sony Corporation © 2005 Printed in Malaysia
Surround
F
speaker (right)
TV
INPUT
VIDEO
Video cord
DIGITAL
COMPONENT VIDEO SIGNAL
GROUND
OPTICAL Y
P /C
B B
/B−Y
DVD
IN
P /C
R R
/R−Y
TV/
MD/
SAT TV/SAT IN DVD IN MONITOR
TAPE
IN OUT
ASSIGNABLE
MD/
TAPE
IN
Coaxial cord
MD/
TAPE AM
OUT
COAXIAL
COAXIAL
DVD
IN
SA-CD/
CD
IN
ANTENNA
Audio/video cord
COAXIAL R AUDIO L VIDEO
DIGITAL OUT OUTPUT
DVD player
Surround Surround back
E H
speaker (left) speaker (right)
Speaker cord
R L R L
R L
SURR
SURR
MONITOR OUT BACK
IN
PHONO
IN IN
VIDEO
1 R L
R L
OUT OUT
FRONT CENTER
IN B
IN
SA-CD/
R L
CD
VIDEO
2
R L
FRONT OUT
R L
SURR IN DVD
FRONT
R L
A
TV/
IN
SAT
R L
SUB WOOFER CENTER
MULTI CH IN AUDIO VIDEO S-VIDEO
AUDIO OUT
AUDIO VIDEO SPEAKERS SUB WOOFER
IN
Speaker cord
Front speaker Front speaker
B A
(right) (left)
Surround back Center
G C
speaker (left) speaker
~ AC IN
Monaural audio cord
AUDIO
INPUT
D Sub woofer
