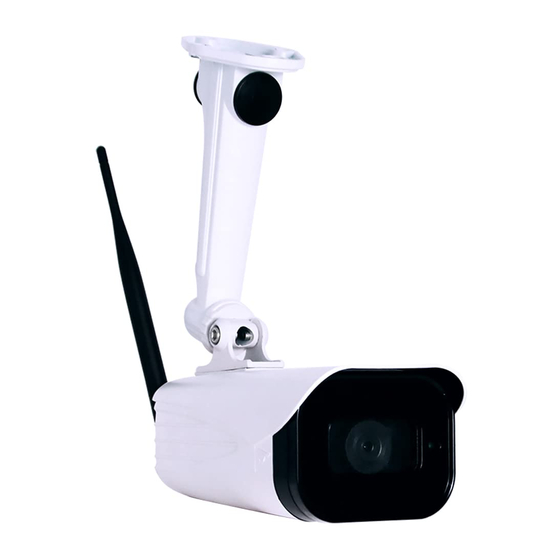

Topens TC186R User Manual

Topens TC186R User Manual

Wifi surveillance camera built-in remote control

Advertisement

Quick Links

User Manual of the WiFi Surveillance Camera
Built-in Remote Control (Model: TC186R)
1. Specifications
 Pixel and resolution: 2M pixel (1080P)
 Network connection: WiFi or Ethernet
 Sensor and lens: CMOS, 6mm
 Night vision mode: ICR infrared filter type
 Night vision distance: 15m
2. Installation of the APP
You can search "LinkCraft" in Google Play or iOS APP store to download & install the
APP.
3. Installation of the Micro SD card
The camera supports an optional Micro SD card which storage could be up to
maximum 128GB. You can install the Micro SD card to recording the monitoring video
in the local card. You can find 4 screws on the bottom cover. Loosen the 4 screws and
you'll find a card slot. Insert the Micro SD card into the card slot and then fix the little
plate back to the bottom cover to complete installation.
NOTE: The Micro SD card will record the monitor video after about 5 minutes when it's
installed into the camera at the first time.
C030271
1
VER21a

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC186R and is the answer not in the manual?

Questions and answers

Zach
April 28, 2025

camera app /opener software app is no where to be found. Do you have another app?

Summary of Contents for Topens TC186R

  • Page 1 User Manual of the WiFi Surveillance Camera Built-in Remote Control (Model: TC186R) 1. Specifications  Pixel and resolution: 2M pixel (1080P)  Network connection: WiFi or Ethernet  Sensor and lens: CMOS, 6mm  Night vision mode: ICR infrared filter type ...
  • Page 2 4. Check the WiFi signal before adding the camera to your phone 5. How to Add the Camera to the Android Phone NOTE 1: The camera can access the network via WiFi or Ethernet cable. The configuration steps are the same as the WiFi when using the Ethernet cable. You can input any WiFi name and password when configuring it with the Ethernet cable.
  • Page 3 5.1 Open the APP and then click “register” to register a user account. Input your mobile phone number or your email address and set you own account password. Click “Get Verification Code” to send a code to your phone or your email box. Please input the received code to the blank bar of “Verification code”.
  • Page 4 5.3 Power on the camera. The PWR light of the camera will be on and the Status light will flash slowly (blink once every 2 seconds). Press and hold the SET button for 1 second until the Status light flashes quickly (blink once every 0.5 seconds) and then release.
  • Page 5 5.6 Click “BACK” function button of the phone to return to the LinkCraft APP once the WLAN network switch back to the WiFi network which you intend to use for the camera. And the APP will display a dialog box of “Binding is successful”.
  • Page 6 5.7 Click “OK” to jump to the camera display interface after the binding is successful. After waiting for a few seconds, the “online” status will turn to “Connected” which indicates that the camera is properly connected to the network. You can’t touch the device to get into the main control interface until the status turns to “Connected”.
  • Page 7 6. How to Add the Camera to the iOS Phone 6.1 Register a user account and login into the APP refer to step 4.1 and ensure your phone has been connected to a valid WiFi network similar as step 4.2. 6.2 Power on the camera.
  • Page 8 in the APP. After waiting for a few seconds, the status will turn to “connected”, now you can get into the main control interface to control it. Go back to the LinkCraft APP to input the WiFi password...
  • Page 10 7. How to Program the Camera to the Gate Opener 7.1 Click the camera to enter the monitor display and control interface when the status displays “Connected”. Touch here to into control interface 7.2 Program the camera to the control board of the gate opener. Press and release the button for learning the remote control on the control board, the LED will be on or displaying for programming.
  • Page 11 NOTE: The 4 keys are equal the 4 buttons of the remote control of the gate opener. The button B can be used to achieve the pedestrian mode if it’s a sliding gate opener. 8. How to Share the Camera with Other Users 8.1 You can share the camera to any other person.
  • Page 12 NOTE: You should choose the right country code when you add a mobile phone user number to your circles. It can supports up to 40 users. 8.2 After the addition is completed, return to the main interface of the APP. Click the setting iron to get into the enable/disable sharing interface.
  • Page 13 9: Maximize the monitor screen to full screen (The icon will display after touching the main monitor image area). 10: Video playback if there is a Mini SD card installed in the camera. 11: View the photo and video which you take with the NO. 4 and NO.5 function of the camera in your local device (mobile phone) this icon will only display after...
