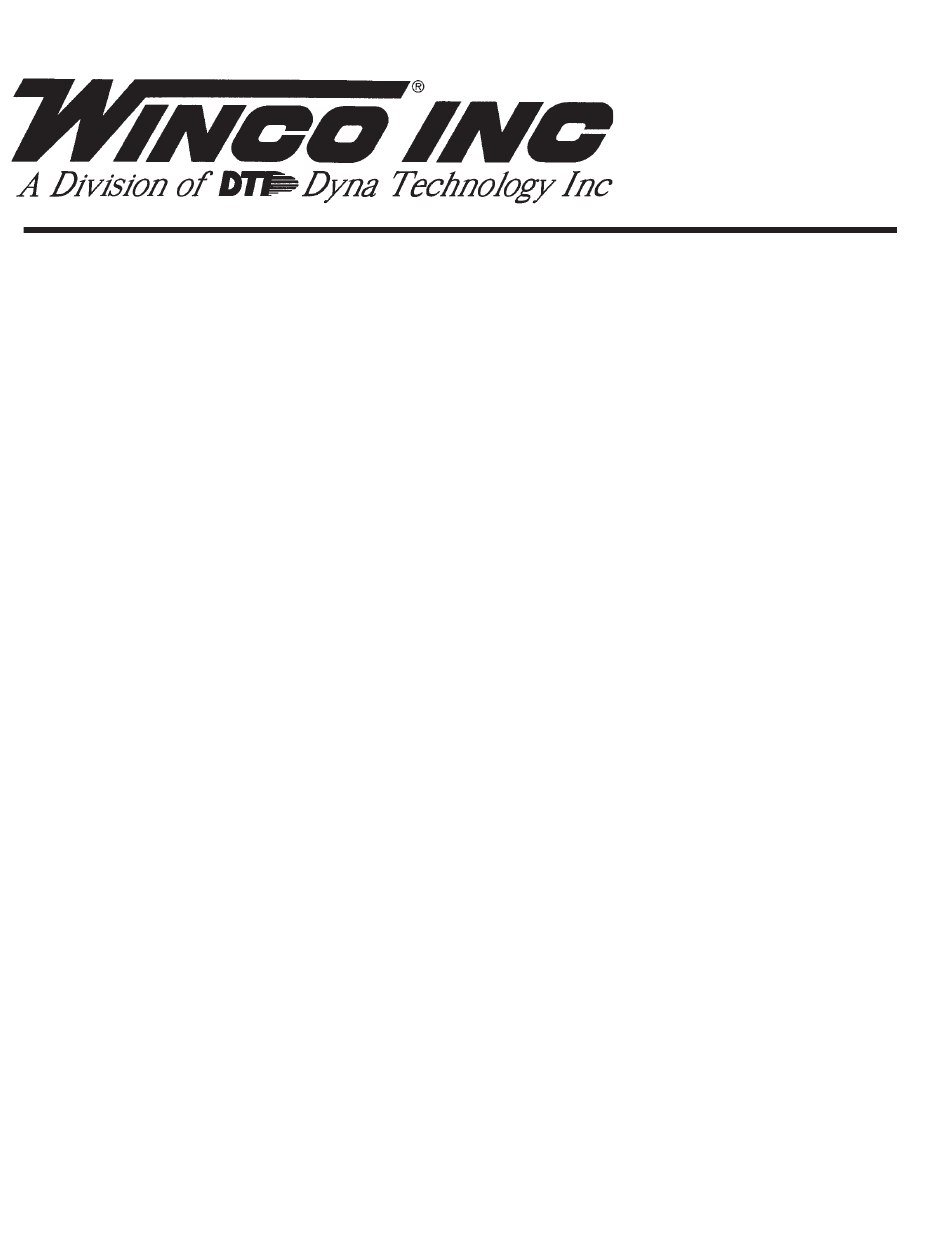

- Page 1 PACKAGE STANDBY SYSTEMS PSS30/A INSTALLATION AND OPERATIONS MANUAL (2009 to 2010) Four Door Version...
-
Page 2: Table Of Contents
SAVE THESE INSTRUCTIONS TABLE OF CONTENTS This manual contains important instructions that should be followed during installation and maintenance INTRODUCTION of the generator and batteries. GUIDE TO PRODUCT SAFETY BASIC INFORMATION Read and understand all instructions in the manual Description before starting and operating the generator set. -
Page 3: Guide To Product Safety
IMPORTANT SAFETY FIRE HAZARD - Natural gas and L.P. present a hazard of possible explosion and/or fire. INSTRUCTIONS Do not smoke or use open flame near the generator set. Keep a fire extinguisher nearby and know its proper use. SAVE THESE INSTRUCTION Fire extinguishers rated ABC by NFPA are appropriate. -
Page 4: Basic Information
2) ENGINE/GENERATOR TESTING POLICY: PSS30LS- The engine generator set consists of a GM 3.0L, I-4 Industrial, four cylinder, liquid cooled engine equipped to run on Before any generator is shipped from the factory, it is fully L.P./N.G. fuel. The engine operates at 1800 rpm and frequency checked for performance. -
Page 5: Dgc-2020 Engine Control Layout
Generator Protection and Metering All metering functions are displayed on the liquid crystal display. The front panel display begins with the SUMMARY SCREEN. Generator protection guards against over voltage, under voltage, Pressing the Right arrow key will open the MAIN MENU screen. under frequency, and over frequency. -
Page 6: Specification Table
J - Reset Push-button. This button is pressed to cancel a Repeat sequence 5 through 8 for day, minute, second and settings editing session and discard any settings changes. When DST (Daylight Saving Time. pressed, this button also resets the Breaker Management Pre- To finish clock setting, process - Press ‘K’... -
Page 7: Preparing The Unit
General Information The engine manufacturer has established an excellent worldwide engine service organization; engine service is available from a nearby authorized dealer or distributor; check the Yellow Pages These engine generator sets are for outdoor installation. These of the telephone directory under “engines,” or ask the dealer from units must be bolted solidly to a concrete pad. -
Page 8: Fuel Line Installation
Connect the fuel supply to the inlet of the fuel solenoid (see table FUEL PRESSURE (vapor system) for recommended line size). The pressure at the secondary demand regulator must be four to six ounces psi (per square Correct fuel pressure cannot be stressed enough. The most inch) or 7 to 11 inches W.C. -
Page 9: Lp Liquid Withdrawal
Notice the preceding tables give two (2) different units of measur- When installing or replacing batteries, use the proper group/size ing fuel pressure. The first is with a pressure gauge calibrated in starting battery. The battery should be a Maintenance Free lead ounces per square inch. -
Page 10: Battery Charger/Block Heater Wiring
properly installed, the normal A.T.S. Control and safety systems Never fill the battery above the fill line. Over filling above the will eliminate all paths for feedback. upper level line may cause the electrolyte to overflow, resulting in corrosion to the engine or nearby parts. Immediately wash off To wire the automatic transfer switch into the existing wiring, first any spilled electrolyte following the procedure above. -
Page 11: Dc Electrical Connections
B - Generator Circuit Breaker, This circuit breaker provides By code, the wire must be heavy enough to handle the full current overload protection for the generator. Your power feeds from the rating of the main line circuit-breaker (or fuse) in the entrance (or transfer switch will connect to the bottom lugs on the circuit sub-panel) protecting the contactor switch. - Page 12 All DC connections are completed in the small box just below the NOTE: engine control cabinet. In addition there are two small fuses This feature must be turned on at the time the manufacture. mounted on the top of the engine control cabinet that protect both the engine control and all the other DC connections.
-
Page 13: Initial Start-Up
Your DC connection points in the ASCO 165 ATS are PROCEDURE terminals “4” and “5 on the interface terminal block. Depress the “RUN” push-button on the front of the DGC. The ASCO 300 UL SWITCH engine-generator will crank and start automatically. If the engine fails to start, depress the “stop”... -
Page 14: Troubleshooting Information
ATS PANEL WILL NOT TRANSFER TO EMERGENCY TROUBLESHOOTING TABLES SUPPLY (GENERATOR) UNIT WILL NOT CRANK WHEN THE POWER FAILS. No AC generator output from generator. Defective transfer switch controller Digital Genset Controller not in "AUTO" Incorrect voltage or frequecy for the generator Transfer control switch not in "AUTOMATIC"... -
Page 15: Voltage Regulator Wiring
VOLTAGE REGULATOR WIRING THREE PHASE AND SINGLE PHASE 9158-00 60706-190 Page 13... -
Page 16: 277/480 Volt
9158-00 Page 14 60706-190... -
Page 17: 120/240 Volt
9158-00 60706-190 Page 15... -
Page 18: Dc Schematic - Wiring Diagram
9158-00 Page 16 60706-190... -
Page 19: Outline Drawing
9158-00 60706-190 Page 17... -
Page 20: Month Warranty
12 MONTH LIMITED WARRANTY WINCO, Incorporated warrants to the original purchaser for 12 months or 1000 hours which ever occurs first, that goods manufactured or supplied by it will be free from defects in workman- ship and material, provided such goods are installed, operated and maintained in accordance with WINCO written instructions.
