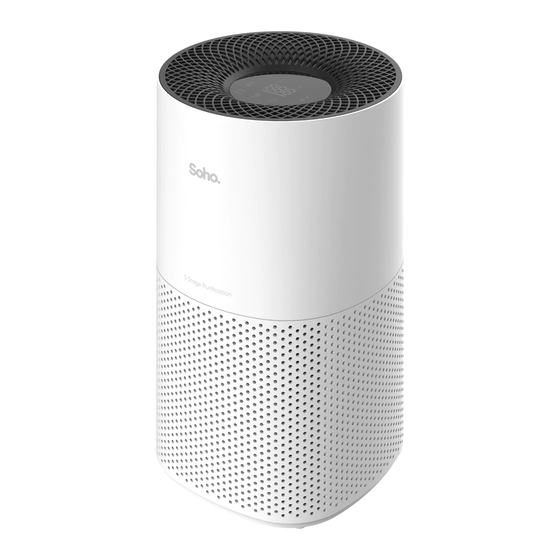

- Page 1 User Manual PureHome Smart Voice Connect Smart Air Purifier with WiFi + AutoSenseAI + Voice Assist Helps Protect From: Allergens Pet Dander “Hey Alexa, turn purifier on.” Smoke & Odours Voice Activated Controls Bacteria...
-
Page 3: Table Of Contents
Ioniser ............................11 Child Lock ............................. 11 Filter Reset ............................. 11 Auto Off Timer ..........................12 WiFi .............................. 12 8� SOHO LIFE APP SETUP ����������������������������������������������������������������������������� 13 9� OPERATION ���������������������������������������������������������������������������������������������� 18 10� AUTOMATION ������������������������������������������������������������������������������������������ 19 Additional App Functions ......................19 11�... -
Page 4: Important Safety And Operation Instructions
We will refer to the SOHO PureHome Smart Voice Connect Smart Air Purifier with WiFi + AutoSenseAI + Voice Assist as the SO-350WUI Air Purifier, the ‘appliance’ or ‘the unit’, throughout the remainder of this manual. - Page 5 11. Unintended use of the appliance or damage to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may, even in little doses, cause harm to eyes and skin. 12. DO NOT operate any appliance that is obviously damaged. 13.
-
Page 6: Specifications
5. 3 Stage (3-in-1) Filter 3. FEATURES OF YOUR SO- WUI AIR PURIFIER Your SOHO PureHome Connect Smart Purifier improves indoor air quality using a 5-Stage Purification system. A Pre-Filter (B) captures larger particles like hair, lint, pet dander and household dust. -
Page 7: Air Quality Indicator
circularly disinfected. AIR QUALITY INDICATOR The purifier uses inbuilt AutoSenseAI technology which detects tiny changes in surrounding air quality. It then adjusts the light colours to indicate the most current status of the air purity. Light Colour BLUE GREEN Air Quality Excellent Good Poor... -
Page 8: 4� Initial Set Up Of Your So- 350 Wui Air Purifier
LOCK the packaging. cover. *After installing the filter for the first time, please refer to “Operating Your SO-350WUI Air Purifier” on page 9 to learn how to reset the filter indicator. 5. GETTING THE MOST FROM YOUR SO-... -
Page 9: Control & Functions
5. Open windows regularly for ventilation. 6. CONTROL & FUNCTIONS CHILD LOCK Turns on Lock function to prevent mis-operation ULTRAVIOLET (UV) Turns the ultraviolet sterilisation on/off. FAN SPEED Cycles through Auto, Speed 1 (Low), Speed 2 (Medium), Speed 3 (High), Sleep POWER ON/OFF Turn the unit ON (Operating Mode) -
Page 10: Fan Speed Control
FAN SPEED CONTROL When the unit is on, tap < and > repeatedly to cycle through the adjustable fan modes and speeds. Cycles through Auto, Speed 1 (Low), Speed 2 (Medium), Speed 3 (High), Sleep. AUTO MODE • Tap < and > repeatedly to select AUTO Mode. When AUTO MODE is enabled, the fan speed is adjusted intelligently according •... -
Page 11: Ioniser
IONISER Turns the IONISER (anion) ON/OFF. CHILD LOCK When the unit is on, hold LOCK for 3 seconds to turn on or off the lock function. To turn on or off the LOCK function when display is off, tap any function to wake up the display first. -
Page 12: Auto Off Timer
WUI Air Purifier will enter standby mode. WIFI indicator will remain on once the initial network configuration is completed. indicator will flash when the appliance enters the Device Network Pairing Mode. Refer to “SOHO LIFE APP SETUP” page detailed pairing instructions. -
Page 13: Soho Life App Setup
8. SOHO LIFE APP SETUP You can control your purifier with the “SOHO LIFE” free App through a WIFI network. 8.1 WHAT YOU NEED TO GET STARTED Network Specifications ✓ 802.11 WiFi: G Only, IEEE b/g/n Stable G Wi-Fi network with access to internet Note: 5G WiFi network is not supported ✓... - Page 14 8.4 SETTING ‘PERSONAL INFORMATION’ ON THE APP The App allows you to edit your profile photo, nickname and time zone. 1. Select ‘HOME’ on the menu at the bottom of the screen. 2. Click on the ‘ A vatar’ icon at the top left of the screen.
- Page 15 Please note, you won’t be able to pair your SO- WUI Air Purifier to the SOHO Life app once you have press the POWER button on touch panel and the purifier enters the Operation Mode. You need to pair it while it still in Standby Mode.
- Page 16 Select ‘HOME’ on the menu at the bottom of the screen. Then click ‘+’ on the top right of the screen to add a new device. Tap ‘AUTO SCAN’, then wait for your smartphone to find devices. Click ‘NEXT’ Choose a 2.4GHz WiFi network and enter the password for the network.
- Page 17 WIFI indicator is rapidly blinking (in pairing mode). 5. Check your Wi-Fi has working internet connection. 6. If the Auto Scan pairing mode does not work, please contact Soho customer Service. 8. Click on your new device. Enter the device control page, to operate the SO- WUI Air Purifier.
-
Page 18: Operation
9. OPERATION 9.1 SETTING OPTIONS 1. SWITCH: Tap to turn the SO- WUI Air Purifier on and off. 2. MODE: Tap to switch between Auto, Sleep or Manual mode of operation. 3. SPEED: Tap to change purifier fan to Low Speed, Medium Speed or High Speed. -
Page 19: 10� Automation
10. AUTOMATION There are various ways you can enhance your smart product experience. Automation lets you control your SO- WUI Air Purifier based on other conditions such as: • Weather changes (example: when local temperature is greater than °C) • Schedule (example: 7:00am every morning) •... -
Page 20: Google Home Integration
2. Open the Google Home app, select ‘+,’ then select ‘Set up device’ on the next menu, then ‘Works with Google’ on the following menu. Then tap the search icon at the top right corner of the screen and search for ‘SOHO Life’ and select... - Page 21 Now you can control your Air Purifier with Google Assistant and use voice commands. Some example commands follow - or try your own variations! Remember whatever you named the Air Purifier as in the SOHO Life App will also be their Google Assistant name Ok Google, turn on Purifier!
-
Page 22: 12� Amazon Alexa Integration
‘Skills & Games’ then using the search tool at the top right corner of the screen, enter ‘Soho Life’ to search for the SOHO Life App. After you select ‘Soho Life’, select ‘Enable to Use’ on the next screen. - Page 23 Select ‘Agree and link’. Once your Soho Life account is linked to Alexa, select ‘Close’ on the following page then select ‘Discover Devices’. IMPORTANT: Open Amazon Alexa app, select ‘More’� Then select ‘Settings’� Then select ‘Alexa App Settings’. Then tap to chose ‘English Australia’ as the language, so that the Alexa voice commands work correctly.
-
Page 24: 13� Cleaning & Maintenance
13. CLEANING & MAINTENANCE WARNING! 1. ALWAYS MAKE SURE THE SO- WUI AIR PURIFIER IS TURNED OFF AND UNPLUGGED BEFORE CLEANING. 2. DO NOT stick any foreign objects or your fingers inside of the unit. 3. Never immerse in water or allow water to drip into the motor housing. We recommend you clean your purifier and filter once every two weeks. -
Page 25: 14� Troubleshooting
14. TROUBLESHOOTING If you encounter any problems with your Air Purifier, some possible solutions are listed below. If you are unable to solve the problem according to following information, please contact customer care. PROBLEM POSSIBLE SOLUTION The filter indicator • You have neglected the prompt to replace filter. -
Page 26: 15� Warranty Terms & Conditions
Soho services, relating to or arising out of your breach of any provision of these terms, your misuse of the Soho services, or your unauthorized modification or alteration of products or software. -
Page 27: 18� Limitations & Liability
Soho. Any liability for negligence is limited to direct losses usually and typically foreseeable in such case. Should the claim for damages be based on wilful... - Page 32 v1.0 w w w . s o h o h o m e . c o m . a u ANOTHER All Images, Information and Content are Copyright © 2022 DIRECTED Directed Electronics Australia Pty Ltd. All Rights Reserved. BRAND www.directed.com.au | www.directed.co.nz...
