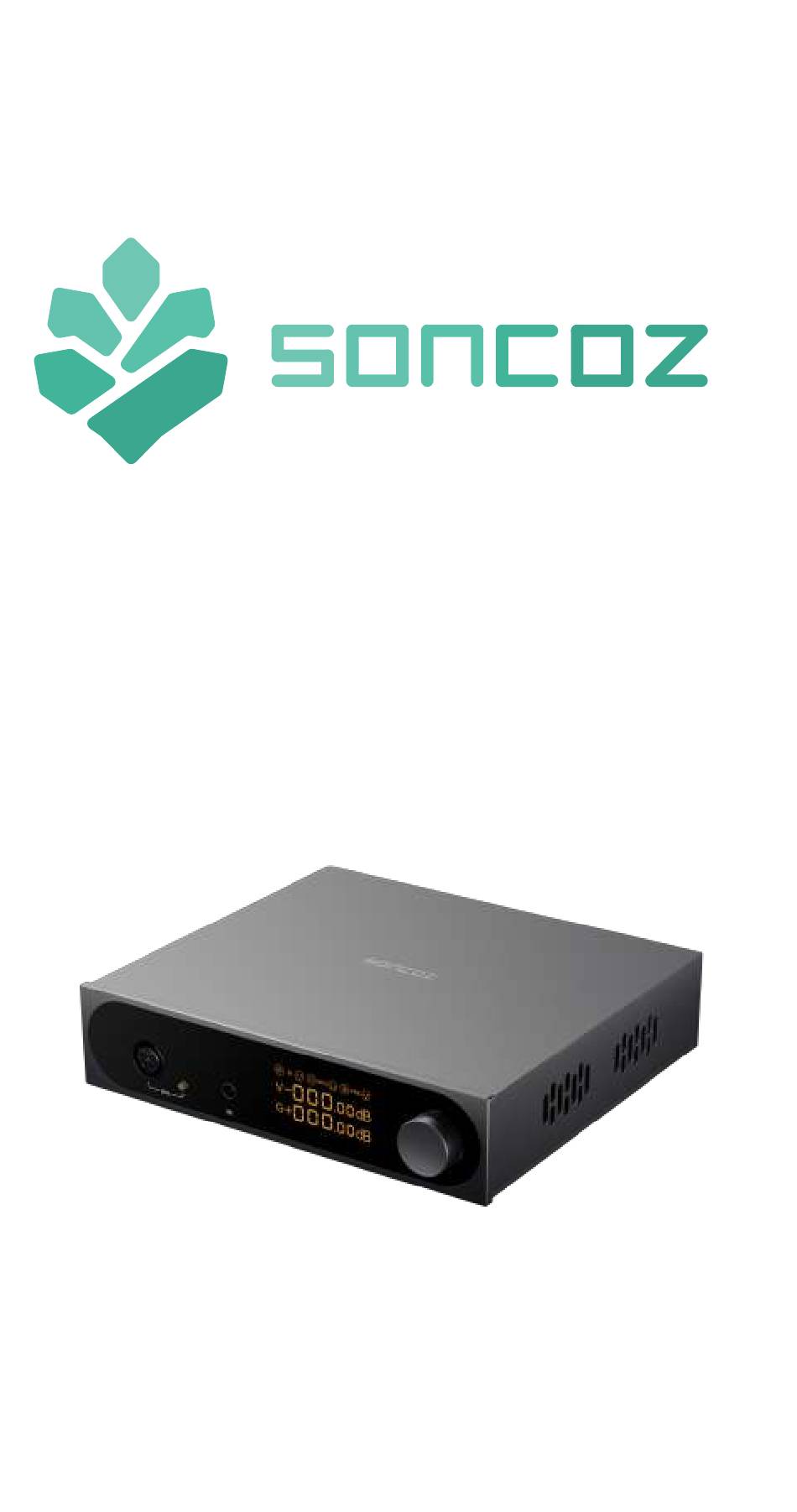

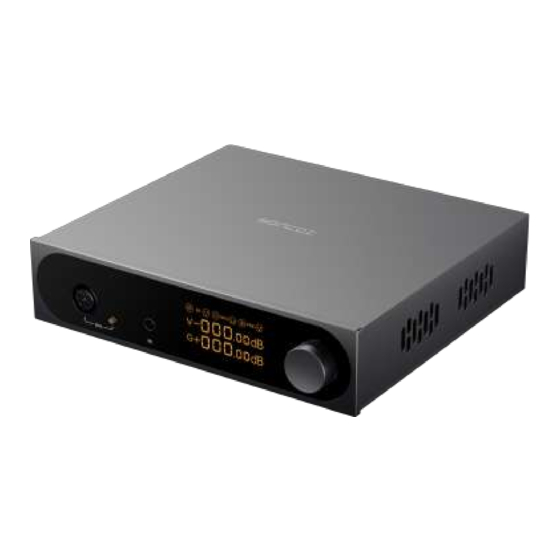

- Page 1 ® The Power of Original Sound SGA1 User Manual V1.0 May. 2021...
- Page 2 2 RCA analog input 3 PRE XLR analog output 4 PRE RCA analog output 5 Voltage selector switch: Please check the correct voltage before using SGA1 and the wrong voltage will damage SGA1 110V for AC 100~120V @50/60Hz 220V for AC 220~240V @50/60Hz...
- Page 3 02 OPERATIONS AND SETTINGS SGA1 has one multi-function knob button on the front of the unit which integrates all the functions and operations. Operation mode include one press, two consecutive press, long press and slow and fast left or right Rotation.
- Page 4 For specific operations, refer to 4—Analog inputs switching 7 Mute analog output(HPA/PRE) Press the knob once and SGA1 will be in silent mode In silent mode, the “V” or “G” indicator will keep flashing and the screen gradually darkens, then the screen goes out within about 40 seconds...
- Page 5 Analog Inputs PRE Outputs THD+N @1kHz <-117dB <-118dB <-117dB <-118dB Freq@20Hz~20KHz ±0.1dB ±0.1dB ±0.1dB ±0.1dB DNR@1kHz A-wt <-126dB <-126dB <-126dB <-126dB SNR@50mV A-wt <-95dB <-94dB <-95dB <-94dB Crosstalk @10kHz <-132dB <-136dB <-132dB <-136dB Output voltage V=0,G=0 2.0Vrms 4.0Vrms 2.0Vrms 4.0Vrms Output impedance 100Ω...
- Page 6 Q4: How to adjust the volume quickly? A4: When the SGA1 detection knob is turned rapidly, it will automatically enter the mode of rapid volume adjustment, and when it is detected that the knob is turned slowly, it will enter the mode of fine adjustment.
