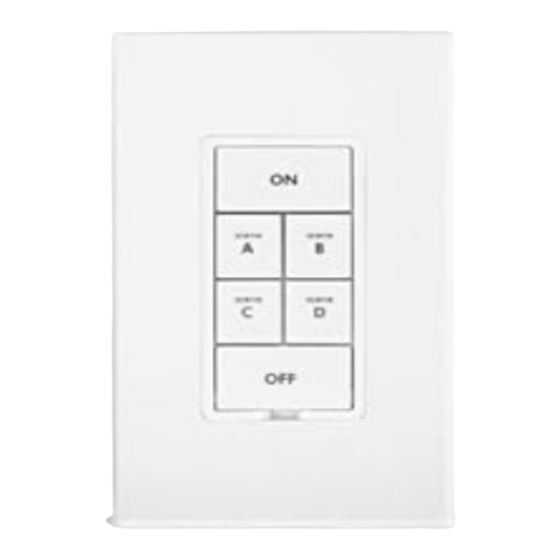

Smarthome Insteon KeypadLinc V2 Replacement Steps

KeypadLinc ™ V2 Frame
and LED Color Change
Kit Replacement Steps
For Models:
KeypadLinc Color Frame Kits:
2401AL Almond
2401BK Black
2401BR Brown
2401GY Gray
2401L KeypadLinc V2 LED
Multi-Color Kit
Disassembling the KeypadLinc
1. If the KeypadLinc is installed in the wall, remove
the trim plate.
2. Remove the four Phillips screws that hold the
frame and buttons to the metal bracket.
3.
Pull the entire frame straight away from the
switch. Also pull away the button plate assembly
(the plastic pieces the button caps are attached
to). You may have to wiggle the bottom of the
frame to get it free of the bottom Set Button.
Introduction
Depending on the kit purchased, the installer or end-
user can easily change the KeypadLinc V2 frame color
or the colors of the indicators under the buttons. The
frame and colored diffusers can be changed before or
after the KeypadLinc is installed in the wall. However,
it is easier to do the changes prior to installing the
KeypadLinc.
During the changeover process, the power and the
load may remain on and operating. There are no
dangerous voltages or unsafe areas while the button
plate is removed.
The color frame kit is compatible with older versions of
the KeypadLinc made after 2002. Earlier KeypadLinc
models with an all-plastic body cannot use the frame
kit.
Button
Kit Contents
Frame Color Change Kits:
• Two same-color outside frames that replace the
white frame originally installed on a KeypadLinc
• Four extra screws
LED Color Change Kit:
• Eight small and two large tinted diffusers in each
of the following colors:
• Four extra screws
Center Diffuser
Plate Frame Lenses
Green, Blue, Red, and Amber
Button
Frame
Caps
