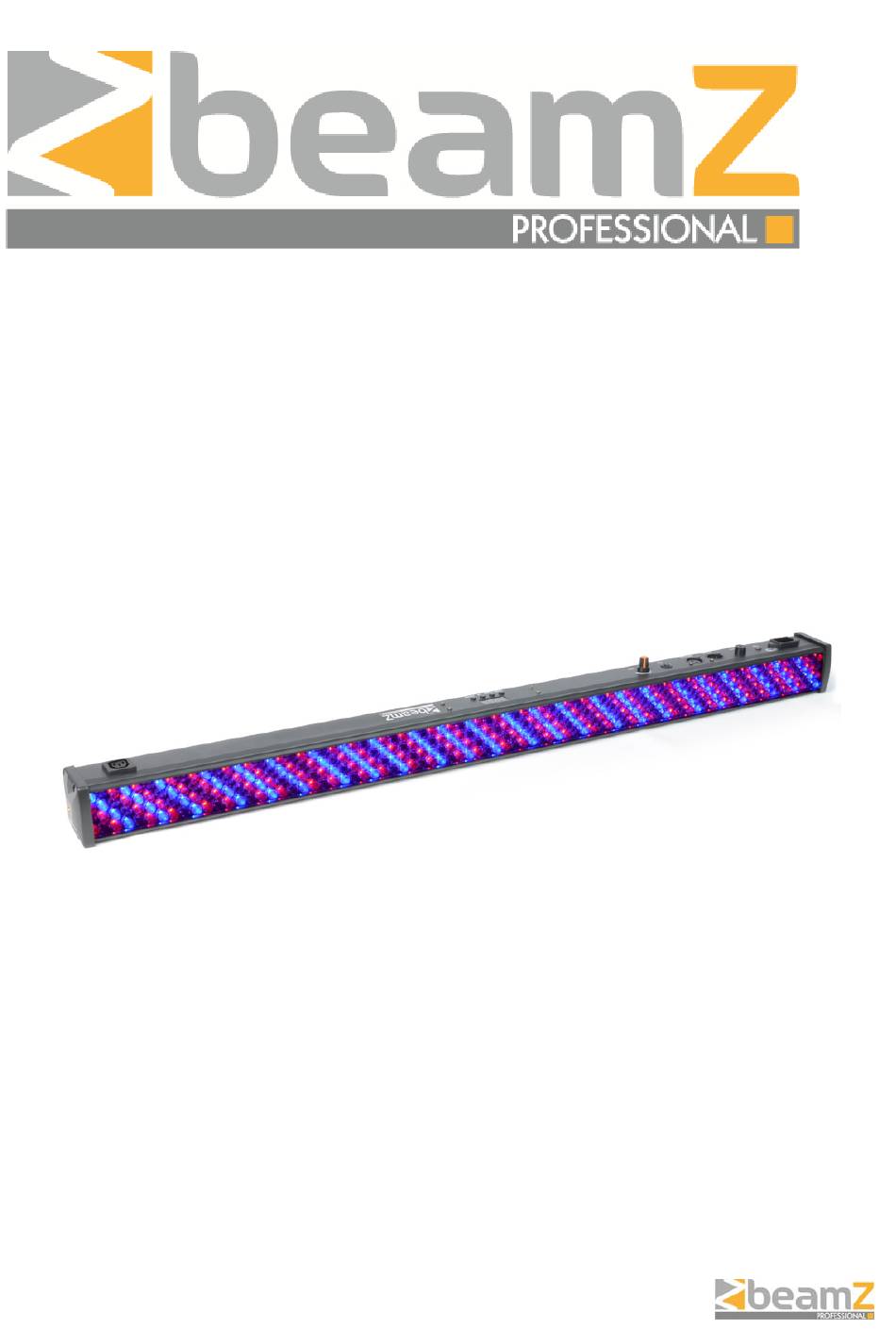

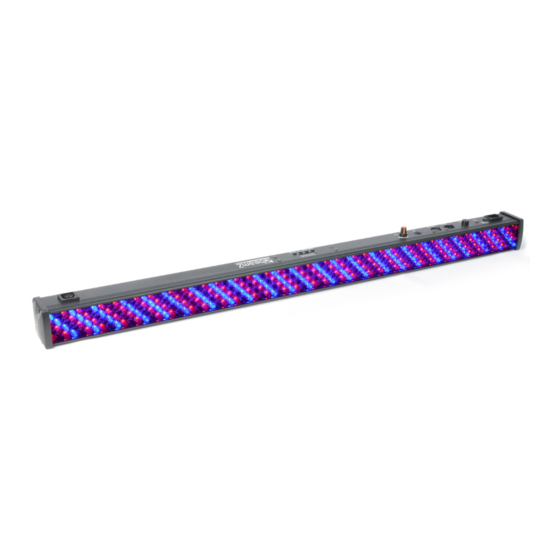

- Page 1 Ref. No.: 150.556 LCB-320 LED COLORS 320X10MM DMX 16SEG MANUAL ‐ 1 ‐ ...
- Page 2 Thank you for purchasing our company products. Please read these instructions carefully to enjoy optimum performance and a longer service life before you start to use. CONTENTS Unpacking Inspections ......................2 Unpacking instructions ..................... 2 Checking the contents of the carton: ................2 Safety Instructions ........................
- Page 3 Make sure there are no flammable materials close to the fixture while operating . Always install it in a location with adequate ventilation. Never replace the lighting source with different specification and rating when the original one is damaged. ...
- Page 4 System menu DMX Address – Set the DMX address Press MENU, press the UP or DOWN button until “Addr” is displayed, press ENTER. “Axxx” will now be displayed, (“xxx” represents the displayed address). Press the UP or DOWN button to find the desired address.
- Page 5 Channel mode – Select the desired channel mode Press MENU, press the UP or DOWN button until “Chnd” is displayed, press ENTER “X Ch” will now be displayed, (“X” represents the displayed channel mode). Press the UP or DOWN button to find the desired channel mode.
- Page 6 DMX Channels: Note: when the function is strobing, the LED will be dimmed by channel 3-50 for auto mode, sound mode and chase mode. ‐ 6 ‐ ...
- Page 7 Fax : 0031546589298 The Netherlands Product number: 150.556 Product Description: LCB-320 LED Colors 320 x 10mm DMX 16 segments Regulatory Requirement: EN 60598-1/-2-17 EN 55015 EN 61547 EN 61000-3-2/-3-3 The product meets the requirements stated in the above mentioned Standards.
- Page 8 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2013 by TRONIOS the Netherlands ‐ 8 ‐ ...
