TRANSMITTER STINGRA Y 418ELPWxV
Community
Controls
Thank you for choosing a Community Controls product .
Please read this manual carefully before using the product.
Made in Italy . Copyright © 2006 by Community Controls
CONTENTS
1 - TRANSMITTER INTRODUCTION
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOO TING
1A - General information

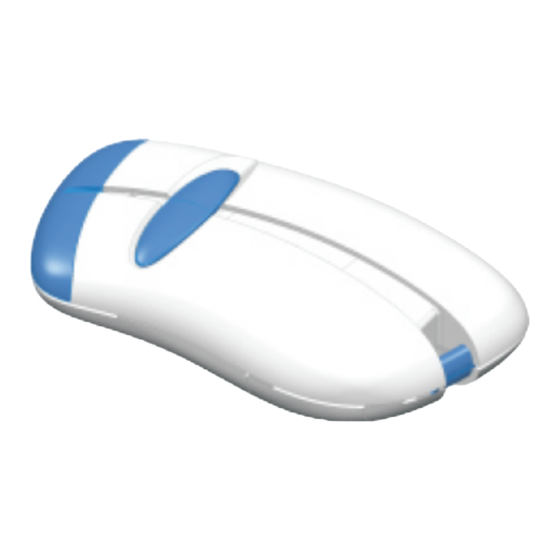

Community Controls - Stingray 418ELPWxV is a visor transmitter
operating at 418 MHz in ASK modulation. It has been designed for the
programmable telephone entry systems, anti-burglar systems and
access control systems operating at 418 MHz. The code sent by the
transmitter includes a 16 bit security code which allows up to 65,536
code combinations and 8 bits of facility code which allows up to 256
facility codes.
Each transmitter is individually numbered and can be used with any
receiver capable of receiving a 26 bit input.
The 23A alkaline battery has a life of about 12-18 months.
The product fully complies with Part 15 of FCC Regulations.
1B - Technical specifications
Number of keys:
Supply :
Battery life:
Current consumption :
Operating frequency :
Code combinations :
Facility codes :
Modulation :
Rated e.r.p. :
Range in free space:
Operating temperature:
Overall dimensions:
W eight:

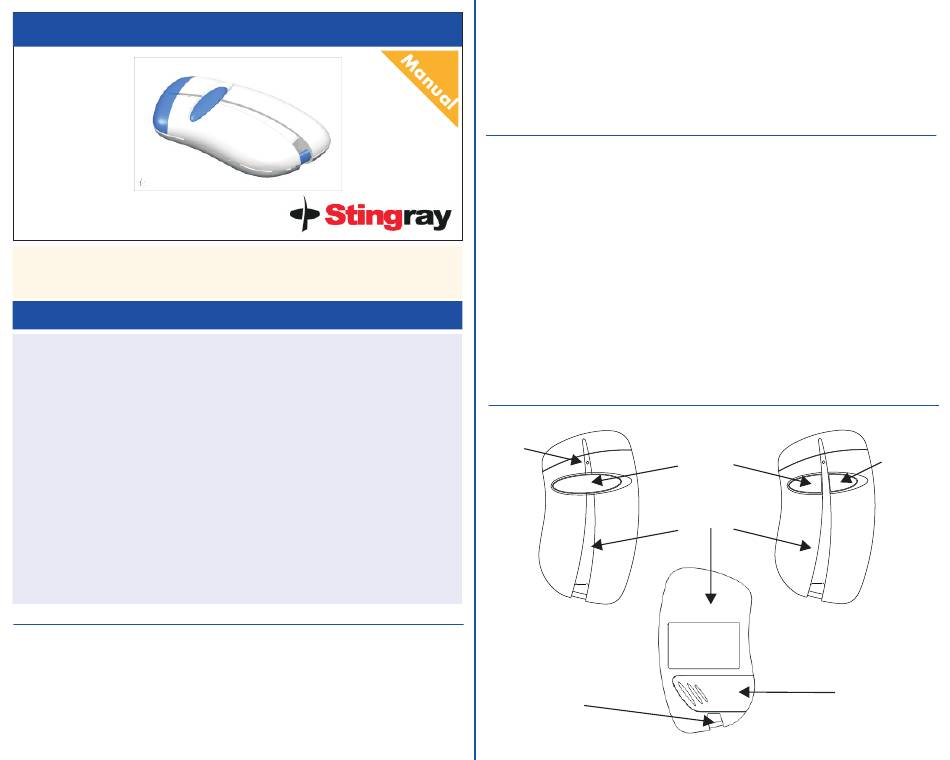

1C - Main features
Red
LED
418ELPW1V
Key holder
ring
1 / 2
1 Alkaline Battery 12V type 23A
12 - 18 months
20 mA
418 MHz
65536
256
AM / ASK
50 - 100 mW
60 - 120 yd
-20 ÷ +55 °C
3.26 x 1.88 x 0.62 in
20 gr .
Push-button
A
Green
Enclosure
light-grey
418ELPW2V
Push-button
B
green
Battery
door
