LI220107

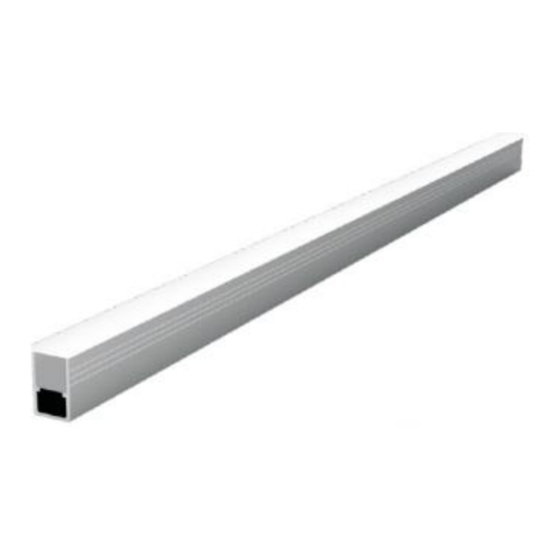

15W LINEAR IN-GROUND LIGHT
PRODUCT SPECIFICATIONS
Fixture Material
Fixture Finish
Diffuser
Static Load Pressure
Binning
Wiring
Life Span
Power
Available color
(W)
Temperatures
2700K
3000K
15W
4000K
6000K
RED
GREEN
BLUE
Standard option.
Non-standard products may be subject to MOQ. Contact your regional sales representative for more information.
www.globallightllc.com
Aluminum
Anodized Gray
Frosted Polycarbonate Diffuser
2500kg
3 Step MacAdam
90 Centimeter of 2 core
0.75mm
rubber cable
2
40,000 hours
LED Chip Lumen Efficacy
3000K
95lm/W
info@globallightllc.com
LED Chip
Power Consumption
Input Voltage
Operating Temperature
Color Rendering Index
Warranty
Agency Approval
6000K
4000K
110lm/W
100lm/W
Tel: +971 4 340 44 58
CREE
15W
24V DC
220~240V AC, 50/60Hz
(Available on request)
from -20° to 65° C
>80
3 years against manufacturing
defects
CE, RoHS
Available
IP Rating
Beam Angles
120°
67
Fax: +971 4 341 10 90
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LED Lighting Global Light & Power LUKEN LI220107
Summary of Contents for LED Lighting Global Light & Power LUKEN LI220107
- Page 1 LI220107 15W LINEAR IN-GROUND LIGHT PRODUCT SPECIFICATIONS Fixture Material Aluminum LED Chip CREE Fixture Finish Anodized Gray Power Consumption Diffuser Frosted Polycarbonate Diffuser 24V DC Input Voltage Static Load Pressure 2500kg 220~240V AC, 50/60Hz (Available on request) Binning 3 Step MacAdam Operating Temperature from -20°...
- Page 2 ACCESSORIES POLYCARBONATE SLEEVE Aluminum material sleeve to be used with the linear in ground light. POWER SUPPLY DETAILS PRODUCT FEATURES Model GL030CV024-220 Life Span 50,000 hours Input Voltage 220~240VAC 50/60Hz Output Voltage Constant 24VDC Output Current 1.25ADC Power Rating Protection Overload &...
- Page 3 INSTALLATION GUIDE Find the location where the linear in ground light has to be installed. Install suitable wiring from the Power supply (24V DC) to the light fixture. Do not exceed 30 meter distance between power supply and light fixture. Keep the Power supply (24V DC) inside the junction box or Mount it on the wall in a DB box.
- Page 4 DMX WIRING CONNECTION FOR WIRELESS CONTROL • Step 1: Install DMX master in the control room or inside a DB box, in proximity of the remote in use. • Step 2: Connect the input of DMX master to 220V AC supplied. •...
- Page 5 How to operate the remote control Turn on button and red indicator will turn on. Please make sure the remote indicator light is on while operating the remote. If 2 or more zones are programmed, each zone can be controlled separately by pressing corresponding zone number first.
