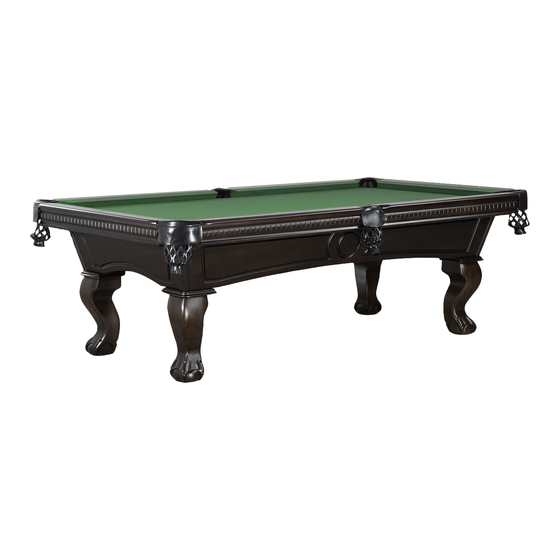

Kansas billiard table

Advertisement

Quick Links

GLD Products
Kansas Billiard Table
Item 64-0147
KANSAS BILLIARD TABLE
Replacement Parts
Order direct at
www.gldproducts.com
or call our Customer Service department at
(800) 225-7593
8 am to 4:30 pm Central Standard Time
Item 64-0147
May 2013
UPC Code 7-19265-51168-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 64-0147 and is the answer not in the manual?

Questions and answers

Summary of Contents for GLD Products 64-0147

  • Page 1 GLD Products Kansas Billiard Table Item 64-0147 KANSAS BILLIARD TABLE Replacement Parts Order direct at www.gldproducts.com or call our Customer Service department at (800) 225-7593 8 am to 4:30 pm Central Standard Time Item 64-0147 May 2013 UPC Code 7-19265-51168-7...
  • Page 2 GLD Products Kansas Billiard Table Item 64-0147 Staple your receipt here. Important: A copy of your receipt will be needed to activate your warranty (see page 13)
  • Page 3 Web: www.gldproducts.com This manual may have been updated. For the latest manual visit the GLD products website. Place your package near the location where it will be used. Carefully unpack all components and verify you have all the correct pieces.
  • Page 4: Parts Identifier

    GLD Products Kansas Billiard Table Item 64-0147 Parts Identifier Part Part Part Illustration/ Illustration/ Illustration/ No./ No./ No./ Order Number Order Number Order Number Qty. Qty. Qty. Billiard Cabinet Low Side Apron Low End Apron Order No. 1-234 Order No. 1-235 Order No.
  • Page 5 GLD Products Kansas Billiard Table Item 64-0147 Qty. Qty. Qty. Plastic Barrel Nut Shim Cross Barrel Nut (pre-installed) Order No.1-251 (pre-installed) Order No.1-250 Order No. 1-249 Qty. Brace (pre-installed) Order No. 1-252 1-800-225-7593 www.gldproducts.com...
  • Page 6: Product Registration

    GLD Products Kansas Billiard Table Item 64-0147 IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST Please see page 13. GLD Products Available 8 am to 4:30 pm Central Standard Time S84 W19093 Enterprise Drive Muskego, WI 53150 USA 1-800-225-7593...
  • Page 7: Tools Required

    GLD Products Kansas Billiard Table Item 64-0147 Tools Required • Allen wrench (#16) - Included with table • Phillips screwdriver (not included) • Level (not included) • Electric screwdriver may be helpful. CAUTION: You must set at LOW TORQUE and use extreme caution because you could overtighten the hardware, strip the screws, or damage the table.
  • Page 8 GLD Products Kansas Billiard Table Item 64-0147 STEP 1 - ASSEMBLE TABLE BASE 1. Set low side aprons (#2) and low end aprons (#3) on the table base (#1). 2. Connect the low side aprons (#2) and low end aprons (#3) by using eight washer head screws (#10).
  • Page 9 GLD Products Kansas Billiard Table Item 64-0147 3. Attach the low side aprons (#2) and low end aprons (#3) to the main table base (#1) using twelve bolts (#8) and twelve washers (9). 1-800-225-7593 www.gldproducts.com...
  • Page 10: Step 2 - Attach The Legs

    GLD Products Kansas Billiard Table Item 64-0147 STEP 2 - ATTACH THE LEGS 1. Check the pre-installed barrel nuts ((#19) for position. The threaded holes should be ver- ticalso the bolts will screw into them. 2. Attach leg top panel (#5) to the low side aprons (#2) and low end aprons (#3) using four bolts (#8) and four washers (#9).
  • Page 11 GLD Products Kansas Billiard Table Item 64-0147 3. Attach a leg (#4) to the table using three leg bolts (#6) and three washers (#7). Repeat for the three other legs (#4). STEP 3 - TURN BASE OVER The table is ready to be turned over.
  • Page 12 GLD Products Kansas Billiard Table Item 64-0147 STEP 4 - LEVEL THE TABLE 1. Use a carpenters level and use shims (#21) under the legs as needed until the table is level. Care and Use of your Table • This product is intended for INDOOR use only.
  • Page 13: Day Limited Warranty

    GLD Products Kansas Billiard Table Item 64-0147 90-DAY LIMITED WARRANTY The Manufacturer warrants to the original retail purchaser that this product is free from defects in material and workmanship under normal use and conditions for a period of ninety (90) days from the date of original purchase. The Manufacturer’s liability is limited to the repair or replacement, at its option, of any defective product and shall not include any liability for indirect, incidental or consequential damages of any kind.
  • Page 14 GLD Products Kansas Billiard Table Item 64-0147 This page left intentionally blank. 1-800-225-7593 www.gldproducts.com...
