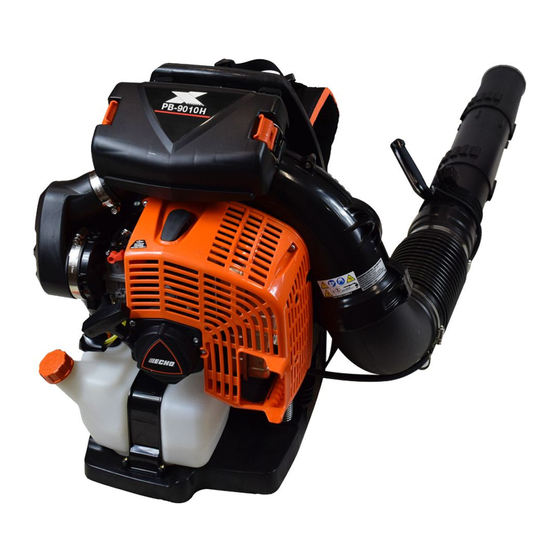

Echo PB-9010 H Operator's Manual

Power blower
Hide thumbs Also See for PB-9010 H:
Table of Contents

Advertisement

Quick Links

PB-9010 H/T
Power Blower
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
This product complies with CAN ICES-2/NMB-2.
X7501200700
© 08/20 ECHO Incorporated
Operator's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-9010 H and is the answer not in the manual?

Questions and answers

Rodney Riley
March 12, 2025

Compression spec. on Echo PB-9010 leaf blower

0

Subscribe to Our Youtube Channel

Related Manuals for Echo PB-9010 H

Summary of Contents for Echo PB-9010 H

  • Page 1 State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury. This product complies with CAN ICES-2/NMB-2. X7501200700 © 08/20 ECHO Incorporated...

  • Page 2: Table Of Contents

    Table of Contents ..................2 Introduction ....................3 Servicing Information .................. 3 Parts/Serial Number................3 Service ....................4 ECHO Consumer Product Support ............4 Product Registration ................4 Additional Literature ................4 Safety ......................5 Manual Safety Symbols and Important Information ......5 International Symbols ................

  • Page 3: Introduction

    SERVICING INFORMATION Parts/Serial Number Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference write them in the space provided below.

  • Page 4: Service

    Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.

  • Page 5: Safety

    Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. X7501200700 © 08/20 ECHO Incorporated...

  • Page 6: International Symbols

    Hot Surface Mixture Idle speed Fast speed Finger severing Purge Bulb DO NOT Allow Ignition Flames or Sparks ON / OFF Near Fuel Choke Control DO NOT Smoke “COLD START” Near Fuel Position (Choke Closed) X7501200700 © 08/20 ECHO Incorporated...

  • Page 7: Personal Condition And Safety Equipment

    Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. Proper clothing and safety gear must be worn when operating unit. X7501200700 © 08/20 ECHO Incorporated...
  • Page 8 Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands. Hearing/Ear Protection ECHO recommends wearing personal protective equipment whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 9 To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 10 • Immediately stop using all power equipment and consult a doctor if you feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The sooner RSI/CTS is diagnosed, the more likely permanent nerve and muscle damage can be prevented. X7501200700 © 08/20 ECHO Incorporated...
  • Page 11 Do not work in odd positions or on ladders. Do not over reach. Avoid Hot Surfaces • Keep exhaust area clear of flammable debris. Avoid contact during and immediately after operation. X7501200700 © 08/20 ECHO Incorporated...

  • Page 12: Equipment

    INCORPORATED will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual. Do not attempt to modify this product. Serious injury can ◆...

  • Page 13: Emission Control (Exhaust & Evaporative)

    The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7501200700 © 08/20 ECHO Incorporated...

  • Page 14: Description

    If a decal cannot be read, a new one can be ordered from your dealer. The safety decal is for example only. Your label may appear slightly different. X7501200700 © 08/20 ECHO Incorporated...
  • Page 15 Stick Handle Blower Pipes Flexible Pipe Spark Arrestor Muffler (with or without Catalyst) 10. Fuel Tank 11. Cold Weather Insert 12. Fuel Tank Cap 13. Spark Plug 14. Choke 15. Recoil Starter Handle 16. Purge Bulb X7501200700 © 08/20 ECHO Incorporated...
  • Page 16 If a decal cannot be read, a new one can be ordered from your dealer. The safety decal is for example only. Your label may appear slightly different. X7501200700 © 08/20 ECHO Incorporated...
  • Page 17 Throttle Trigger Blower Pipes Flexible Pipe Spark Arrestor Muffler (with or without Catalyst) 10. Fuel Tank 11. Cold Weather Insert 12. Fuel Tank Cap 13. Spark Plug 14. Choke 15. Recoil Starter Handle 16. Purge Bulb X7501200700 © 08/20 ECHO Incorporated...

  • Page 18: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. PB-9010 H...

  • Page 19: Assembly

    Never perform maintenance or assembly procedures with engine running or serious personal injury can result. Install Blower Pipes and Stick Handle Assemble clamps (A) onto both ends of flexible pipe (B). Insert anti-static wire through flex tube, into swivel pipe. X7501200700 © 08/20 ECHO Incorporated...
  • Page 20 Hold swivel pipe and turn straight pipe clockwise, engaging positive locking channels, until connection is firm. Do not force connection. Assemble end pipe (K) to straight pipe (J) the same as in step 8. X7501200700 © 08/20 ECHO Incorporated...

  • Page 21: Install Blower Pipes

    Note: Clamp with cable guide loop (G) fits elbow end of flexible pipe. Insert anti-static wire through flex tube. Note: A light lubricant may be used to ease assembly of flexible pipe to blower elbow. X7501200700 © 08/20 ECHO Incorporated...
  • Page 22 9. Note: Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosening occurs, remove two straight pipes and install according to steps 9 and 10. X7501200700 © 08/20 ECHO Incorporated...

  • Page 23: Operation

    Always be alert for changes in operation of unit. ◆ Always shut engine off before transporting unit to new ◆ location. Always secure the unit during transportation to prevent ◆ turnover, fuel spillage, and damage to the unit. X7501200700 © 08/20 ECHO Incorporated...

  • Page 24: Fuel

    NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used.
  • Page 25 AVOID inhaling oil mists or vapors. ◆ ECHO branded 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals. Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury will result.
  • Page 26 • Empty the fuel tank prior to storing the unit. Return unused fuel to an approved fuel storage container. Stored two-stroke fuel can separate. ALWAYS shake fuel container thoroughly before each use. Used oil and gasoline, and soiled towels are hazardous waste materials. Disposal laws vary by locality. X7501200700 © 08/20 ECHO Incorporated...

  • Page 27: Starting Cold Engine

    PB-9010 H/T OPERATION Starting Cold Engine PB-9010 H only: • Rotate spring loaded throttle arm downward to a comfortable operating position. PB-9010 H/T: • Recoil starter: Use short pulls - only 1/2- 2/3 of rope length for starting. Do not allow the rope to snap back in. Always hold the unit firmly.
  • Page 28 COLD START position, and repeat steps 3- 6. Allow engine to warm up for several minutes before use. Throttle Lever After engine warm-up, move throttle lever gradually to increase engine RPM to desired operating speed. X7501200700 © 08/20 ECHO Incorporated...

  • Page 29: Starting Warm Engine

    PB-9010 H 4 or 5 times. PB-9010T Recoil Starter Pull recoil starter handle (D) and engine should start. Do not use choke (B). Note: If engine does not start after 5 pulls, use cold start procedures. X7501200700 © 08/20 ECHO Incorporated...

  • Page 30: Stopping Engine

    Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed away from your face and body. X7501200700 © 08/20 ECHO Incorporated...
  • Page 31 To reduce sound levels, limit the number of pieces of equipment used at any one time. Allow the engine to warm up at a fast idle for a few minutes. X7501200700 © 08/20 ECHO Incorporated...
  • Page 32 Always stop unit using stop engine procedure. Note: Never use a higher speed setting than necessary to perform a task. Remember, the higher the engine speed, the louder the blower noise. X7501200700 © 08/20 ECHO Incorporated...
  • Page 33 Remove clips from back cushion. Remove back cushion (A) from frame. Install cold weather insert (B) on frame over air intake. Install back cushion (A) to frame over cold weather insert. Note: Blower performance may be reduced slightly. X7501200700 © 08/20 ECHO Incorporated...
  • Page 34 OPERATION PB-9010 H/T Adjust harness Pull straps (C) downward to adjust shoulder harness. Adjust harness limiter strap (D) for comfortable operation. X7501200700 © 08/20 ECHO Incorporated...

  • Page 35: Maintenance

    Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required. Level 3 = See your dealer. Click HERE or go to http://www.echo-usa.com/products/maintenance-kit HERE https://www.shindaiwa-usa.com/you-can.aspx For information about maintenance kits.

  • Page 36: Maintenance Intervals

    IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. MAINTENANCE PROCEDURE NOTES: 1. Replacement is recommended based on the finding of damage or wear during inspection. X7501200700 © 08/20 ECHO Incorporated...

  • Page 37: Air Filter

    Assemble components in reverse order. Fuel Filter Level 1. Parts Required: TUNE UP KIT. Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury can result. X7501200700 © 08/20 ECHO Incorporated...

  • Page 38: Spark Plug

    Fines up to $37,500 may be enforced for using an un-certified replacement part. Spark Plug Level 2. Parts Required: TUNE-UP KIT Use only NGK CMR7H spark plug otherwise severe engine damage can occur. X7501200700 © 08/20 ECHO Incorporated...
  • Page 39 DO NOT sand blast to clean. Remaining sand will damage engine. 0.65 mm (0.026 in.) Adjust spark plug gap by bending outer electrode. Tighten spark plug to 102-153 kgf • cm (86-133 in • lbf). X7501200700 © 08/20 ECHO Incorporated...

  • Page 40: Cooling System

    This build up insulates the engine and prevents the heat from leaving. Removal of cooling passage blockages or cleaning of cooling fins is considered “Normal Maintenance.” Any failure attributed to lack of maintenance is not warranted. X7501200700 © 08/20 ECHO Incorporated...

  • Page 41: Exhaust System

    Connect spark plug lead. Exhaust System Spark Arrestor Screen Level 2. Parts Required: Spark Arrestor Screen Carbon deposits in muffler will cause a drop in engine output and overheating. Spark arrestor screen must be checked periodically. X7501200700 © 08/20 ECHO Incorporated...
  • Page 42 Exhaust Port Cleaning Level 2. Parts Required: As needed: Muffler Gasket Remove spark plug lead from spark plug, and remove engine cover. Place piston at top dead center. Remove muffler (A) and muffler gasket (B). X7501200700 © 08/20 ECHO Incorporated...

  • Page 43: Carburetor Adjustment

    1,100 ft. (335 m) above sea level. To maintain proper engine operation and emission compliance above 1,100 ft. (335 m) ASL the carburetor may need to be adjusted by an authorized ECHO service dealer. X7501200700 © 08/20 ECHO Incorporated...
  • Page 44 If a tachometer is available, idle speed screw (A) should be set to the specifications found on “Specifications” Page of this manual. Turn idle screw (A) clockwise to increase idle speed; counter clockwise to decrease idle speed. X7501200700 © 08/20 ECHO Incorporated...

  • Page 45: Throttle Cable Adjustment (Pb-9010 T, Eb910Rt Only)

    4 - 6 mm (3/16-1/4 in.). After adjustment, squeeze and release Throttle Trigger several 3/16 - 1/4 in. times to verify Carburetor (4 - 6 mm) Throttle Shaft has full range of movement from idle to wide open throttle positions. X7501200700 © 08/20 ECHO Incorporated...

  • Page 46: Troubleshooting

    Interlock switch No spark Engine Incorrect gap - Adjust to does not Covered with 0.65 mm start Spark at carbon - (0.026 in.) plug Fouled with Clean or replace fuel - Plug plug defective X7501200700 © 08/20 ECHO Incorporated...

  • Page 47: Storage

    Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark. Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following: X7501200700 © 08/20 ECHO Incorporated...
  • Page 48 10. Install the spark plug. Connect the spark plug lead to the spark plug. 11. Remove blower pipe assembly from unit. X7501200700 © 08/20 ECHO Incorporated...

  • Page 49: Specifications

    Wide Open Throttle Speed 7,800 RPM Maximum Air Speed with 94.5 m/sec (211 mph) pipes Air Volume 30.3 m /min. (1071 ft. /min.) Sound Level at 15.25 m 79.3 dB(A) (50 ft.) dB(A) scale per ANSI B175.2 X7501200700 © 08/20 ECHO Incorporated...

  • Page 50: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 51 PB-9010 H/T PRODUCT REGISTRATION X7501200700 © 08/20 ECHO Incorporated...
  • Page 52 (H)P53315001001 - P53315999999 (T)P53415001001 - P53415999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
