Summary of Contents for TransTank GlidePath

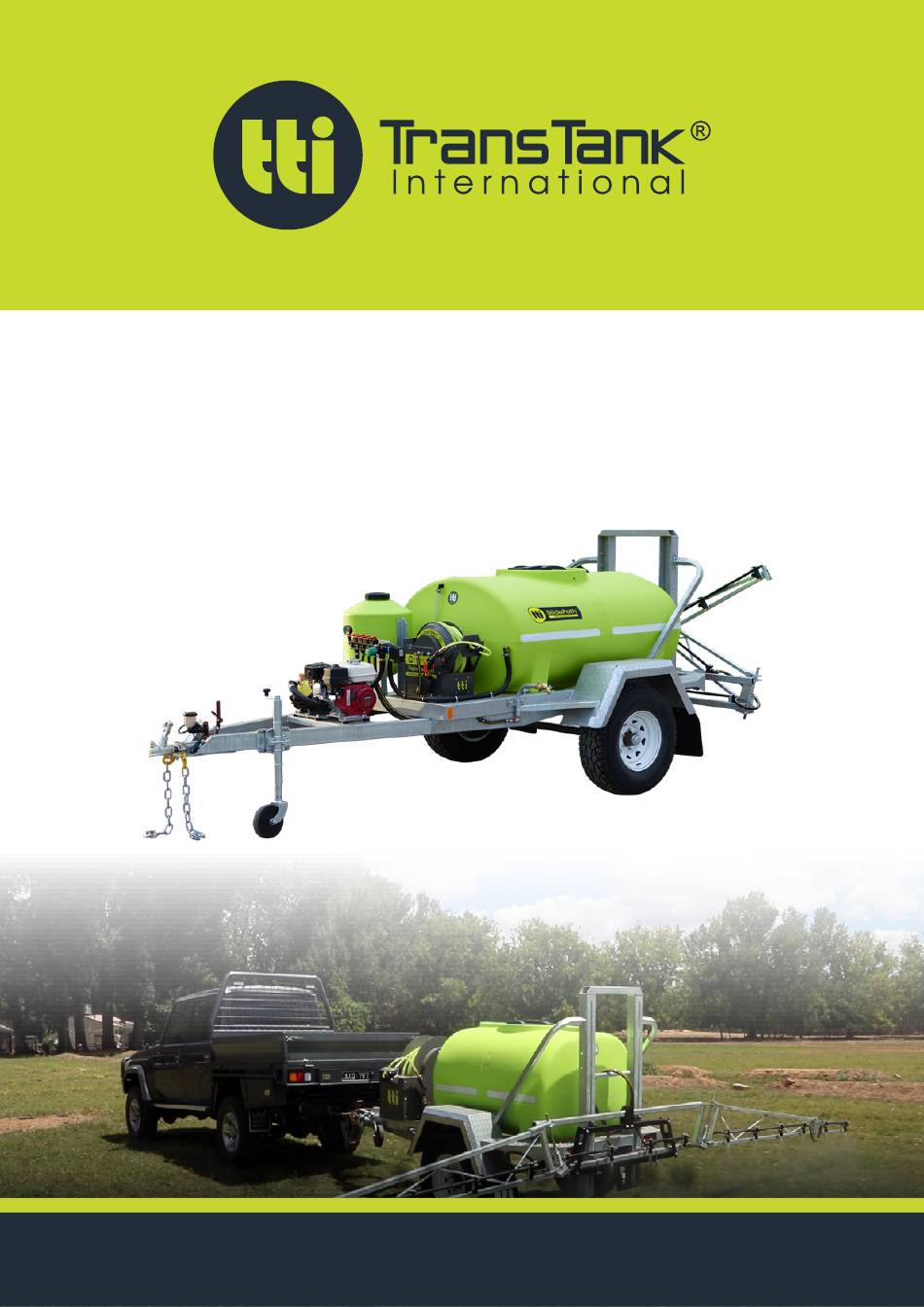

- Page 1 GlidePath ™ Operator’s HandBook w w w . t t i . c o m . a u Manufacturer of “The Safest Tanks in Motion”...
-
Page 2: Table Of Contents
Specifications Description Machine Limitations Driving Stability Spray Boom Calibration Calibration Procedure GlidePath Operating Instructions Before First Use Filling the GlidePath Tank Operating Instructions Clean-up and Decontamination Cleaning Procedure Cleaning Procedure using Flush Tank Maintenance Periodic Checks Maintenance Schedule Maintenance Tasks... - Page 3 The GlidePath unit is supplied complete, tested and ready to hitch to your vehicle or tractor. TTi warrants that the GlidePath has been designed and built for its intended purpose as a pesticide/herbicide spray unit.
-
Page 4: Safety
• Australian Standard for Respiratory protection devices AS1715 7. Ensure the capacity of the tow vehicle is suitable for the loaded mass of the GlidePath. Refer to the vehicle’s operator manual for safe working loads, correct securing points and relevant safety instructions. -
Page 5: General Information
Dispose of any unwanted chemicals and tank rinse residue in accordance with current environmental and workplace health and safety regulations. 15. The GlidePath has safety labels affixed to various locations on the unit. These labels should be kept clean and legible, and replaced if damaged. -
Page 6: Description
Pump The GlidePath is fitted with a Bertolini 75L/min pump driven directly by a Honda GX200 petrol engine. If the optional spray boom or spray gun is not in operation when the pump is running, the fluid bypasses back into the tank. - Page 7 Foam Marker Kit An optional Foam Marker Kit is available for the GlidePath and includes a 20L container with a spray nozzle mounted on each end of the boom. With the container filled with a rich soapy water solution, the electrically actuated solenoid valve operates at factory-set intervals to discharge a short burst of foam onto the ground.
-
Page 8: Machine Limitations
Flush Tank The 20-litre flush tank is mounted in front of the GlidePath tank. A 3-way control valve draws water from the flush tank through the lines and optional hose reel. The main tank can be then flushed with clean water by removing the suction line from the sump. -
Page 9: Calibration Procedure
™ Product HandBook PPE appropriate to the chemicals being used must be worn at all times when calibrating the GlidePath. As a minimum, the PPE should include coveralls, gloves and boots. A face shield and PVC apron are recommended. Calibration Procedure Check the label on the chemical container for the application rate and recommended spray nozzle type, refer to Figure 2, which shows the TeeJet AIXR nozzle application chart. - Page 10 GlidePath ™ Product HandBook Figure 2 – AIXR Application Chart w w w.tti.com. au 1800 816 277...
-
Page 11: Glidepath Operating Instructions
Product HandBook GlidePath Operating Instructions Before First Use Your GlidePath Spray Trailer is delivered assembled and ready to be connected to your tow vehicle or tractor. Before use, it needs to be set up using the following instructions: • Complete the warranty registration online at www.tti.com.au/warranty-registration, or use the Warranty Registration Card at the back of this handbook. -
Page 12: Filling The Glidepath Tank
Figure 4 – Optional Foam Marker Kit Electrical Cables and Controller • It is recommended that at first use, the GlidePath is filled with water for calibration purposes and for the operator to become familiar with the characteristics of the unit. Refer to the Calibration Procedure to set up the unit for first use;... -
Page 13: Operating Instructions
Measure the correct quantities of chemicals using clean measuring containers specifically for this purpose only, then add the chemicals to the tank. • Rinse out the measuring containers and any empty containers and pour all rinsing liquid into the GlidePath tank. CAUTION! Do not overfill the tank. This may result in chemical spillage. - Page 14 GlidePath ™ Product HandBook • At the pump, check that the pressure regulator is set to the minimum position by turning the knob anti- clockwise, refer to Figure 5. Figure 5 – Pressure Regulator Options w w w.tti.com. au 1800 816 277...
- Page 15 For spraying operations, refer to: • Hose Spray Operation • Spray Boom Operation If the GlidePath is not going to be used within the next few hours, shut the system down by turning the engine’s fuel tap to OFF. w w w.tti.com. au...
- Page 16 • With the hose pressure released, the hose is ready to stow back on the GlidePath’s hose reel, refer to Figure 7. For the optional 30m reel, turn the handle at the side of the hose reel to wind it onto the spool, guiding the hose as necessary to ensure even distribution across the width of the reel.
- Page 17 GlidePath ™ Product HandBook Figure 7 – Optional 30m Hose Reel Figure 8 – Optional 50m SuperReel Spray Boom Operation WARNING! Before commencing spraying, plan the work effectively to minimise potential contamination of adjacent areas. The Spray Boom options supplied do not require any adjustments prior to operation once calibrated for the task.
- Page 18 Figure 9 – Remote Control Solenoid Operated ON-OFF Switch Unit Foam Marker Kit Operation The Foam Marker Kit, available as an option for the GlidePath, is operated as follows: • Connect the electrical cable to a suitable supply on the vehicle, refer to Figure 4.
-
Page 19: Clean-Up And Decontamination
– to avoid damage to crops from any harmful pesticide spray residues. Decontamination also prevents sprayer corrosion and abrasion. Cleaning the GlidePath should be undertaken at a carefully chosen site, away from any risk of spillages draining into watercourses or into environmentally sensitive areas. The following describes the normal cleaning procedure, followed by the cleaning procedure where the optional flush tank is fitted to the GlidePath unit. -
Page 20: Cleaning Procedure Using Flush Tank
Dispose of all rinsing water in compliance with environmental and work safety requirements. Cleaning Procedure using Flush Tank Cleaning of the GlidePath unit fitted with the optional flush tank is conducted in a similar manner to the cleaning procedure described above, but noting the following: •... -
Page 21: Maintenance
Product HandBook If the GlidePath is to be removed from the tractor, disconnect it in the opposite order to mounting, as described in the Before First Use section above. Ensure the unit is securely chocked once removed from the tractor. - Page 22 GlidePath ™ Product HandBook Weekly tasks The following tasks are to be undertaken each week or 10 operating hours, whichever occurs first. Task Date Signed All Daily tasks Remove and clean the engine’s air filter Check engine oil level, top up as required...
- Page 23 GlidePath ™ Product HandBook Six Monthly tasks The following tasks are to be undertaken every six months or 100 operating hours, whichever occurs first. Task Date Signed All Daily, Weekly, Monthly and 3-Monthly tasks Change engine oil (and filter, if fitted)
-
Page 24: Maintenance Tasks
™ Product HandBook Maintenance Tasks The following tasks must be undertaken on a periodic basis to ensure your GlidePath Spray Trailer’s ongoing reliability. CAUTION! In dusty, dirty or smoky environments, cleaning, inspection and servicing of the unit on a regular basis is essential. The cleaning, inspection and servicing must be undertaken more frequently in harsh conditions to avoid damage or destruction of equipment. -
Page 25: Trouble Shooting
GlidePath ™ Product HandBook Trouble Shooting If a fault develops with your GlidePath unit, the following trouble shooting tables provides guidance to identify and rectify the problem. Pump Problem Possible cause Remedy Pump will not prime Air leak on suction line... -
Page 26: Risk Assessment
GlidePath ™ Product HandBook Risk Assessment Task Hazard Risk Control Measure/Mitigation Check weather Manual handling; slips, • Wear PPE as per chemical requirements conditions trips or falls SDS – coveralls, gloves, safety footwear, glasses & respirator • Follow safe manual handling techniques: don’t lift on your own if >20kg, bend knees... -
Page 27: Warranty
GlidePath ™ Product HandBook Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty which is found to be defective in material and/or workmanship within one (1) year after date of sale to the original retail purchaser. - Page 28 Scan to view our PDF Handbook online www.tti.com.au 1800 816 277 sa l e s@ tt i.c om.au P O B ox 1 37, N at ha li a , V I C , 3 63 8 M ur ray Va l l ey H w y, N ath a l i a , V I C 363 8 Quality Checked By: Proudly Built By: Signature...
