Summary of Contents for FM Systems VSA-10

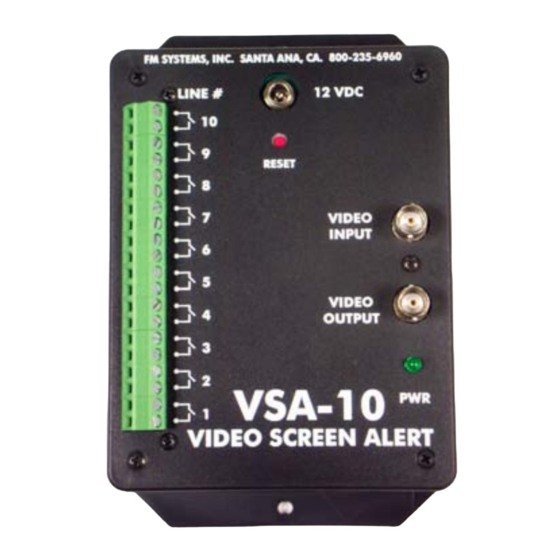

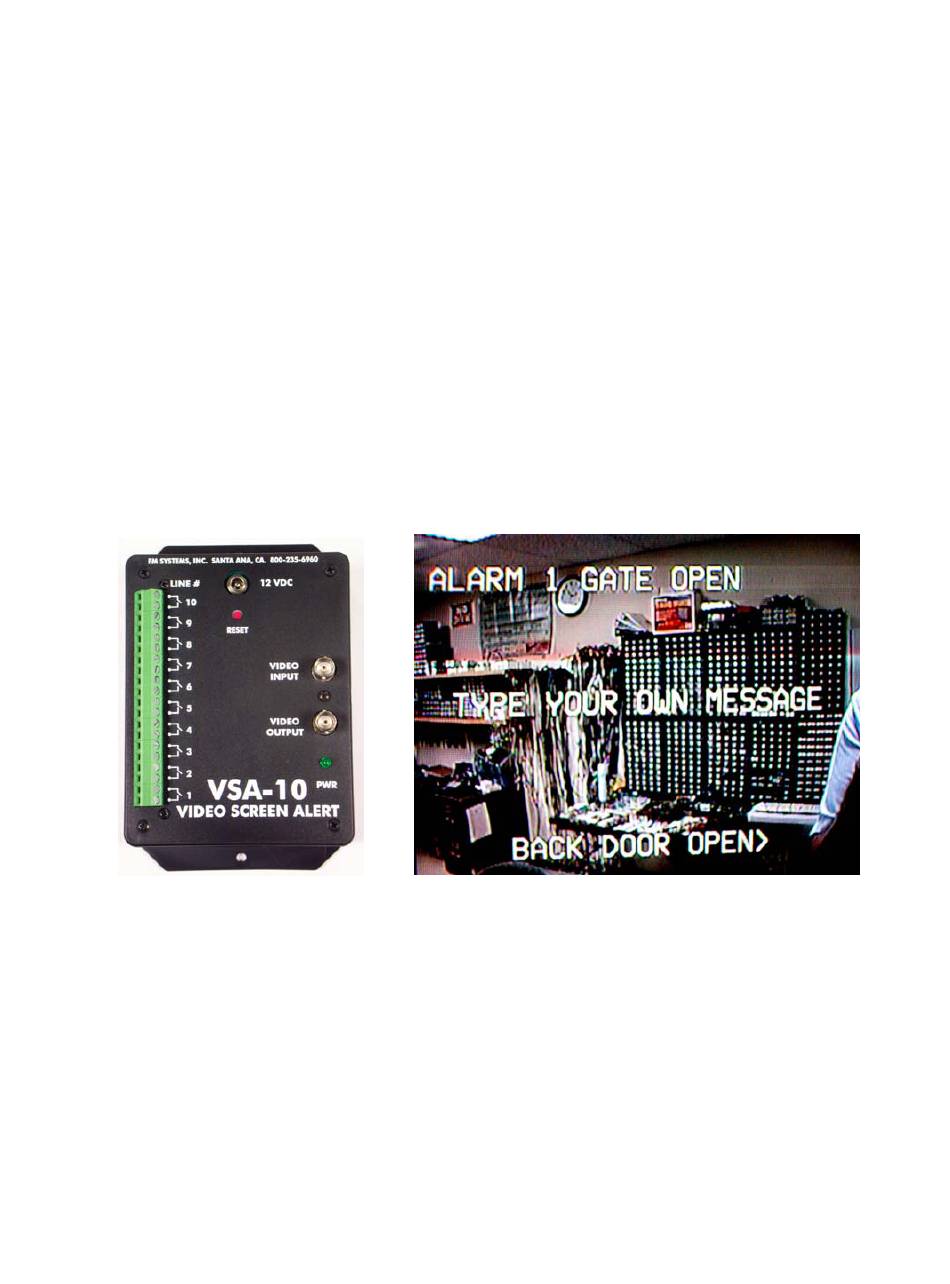

- Page 1 VSA-10 VIDEO SCREEN ALERT ON SCREEN DISPLAY INSTRUCTION BOOK IB6463-01 5-25-2013...
- Page 2 VSA-10 VIDEO SCREEN ALERT TABLE OF CONTENTS PAGE 1. RECEIVING INSPECTION 2. INTRODUCTION 3. HOW AND WHERE TO MOUNT THE VIDEO SCREEN ALERT 3 4. HOW TO CABLE THE VIDEO SCREEN ALERT 5. POWER SUPPLY INSTALLATION 6. HOW TO PROGRAM CUSTOM TEXT 3-4-5 7.
- Page 3 RECEIVING INSPECTION Remove from shipping container and inspect for any shipping damage to the VSA-10. Included will be a VSA-10, 24VDC external power module, a computer keyboard, this instruction book. Caution: Read this instruction manual before operating the equipment. INTRODUCTION...
- Page 4 Select a location to mount the unit along the video signal path near a power outlet for the power supply. If you want the text video overlay to appear on an individual camera view then the VSA-10 will be placed on the camera cable run between the camera and the video recorder.
- Page 5 Next attach the computer keyboard by plugging it into the socket on the side of the VSA-10. The keyboard should only be attached to the unit when programming new text and removed when not programming text. To begin programming custom text into the non-volatile video memory you must recycle the power supply while depressing and holding down the reset button on the front cover near the power input plug.
- Page 6 All alpha-numeric keys and many symbol keys are available for use on the keyboard. Not all keys are available for use on the keyboard. Note: After programming your custom text disconnect the keyboard and store away in a safe place. DO NOT LEAVE THE KEYBOARD CONNECTED TO THE UNIT WHEN NOT IN USE.
- Page 7 11. LIST OF FUNCTIONAL KEYS 1234567890-= !@#$%^&*()_+ qwertyuiop[]\ QWERTYUIOP{}| asdfghjkl;’ ASDFGHJKL:” zxcvbnm,./ ZXCVBNM<>? “Pause Break” key = Masking Rectangle “HOME” key = Cross-Hair Center “PAGE UP” key = Cross-Hair Continuous Horizontal Line “PAGE DOWN” key = Cross-Hair Continuous Vertical Line “UP ARROW”...
