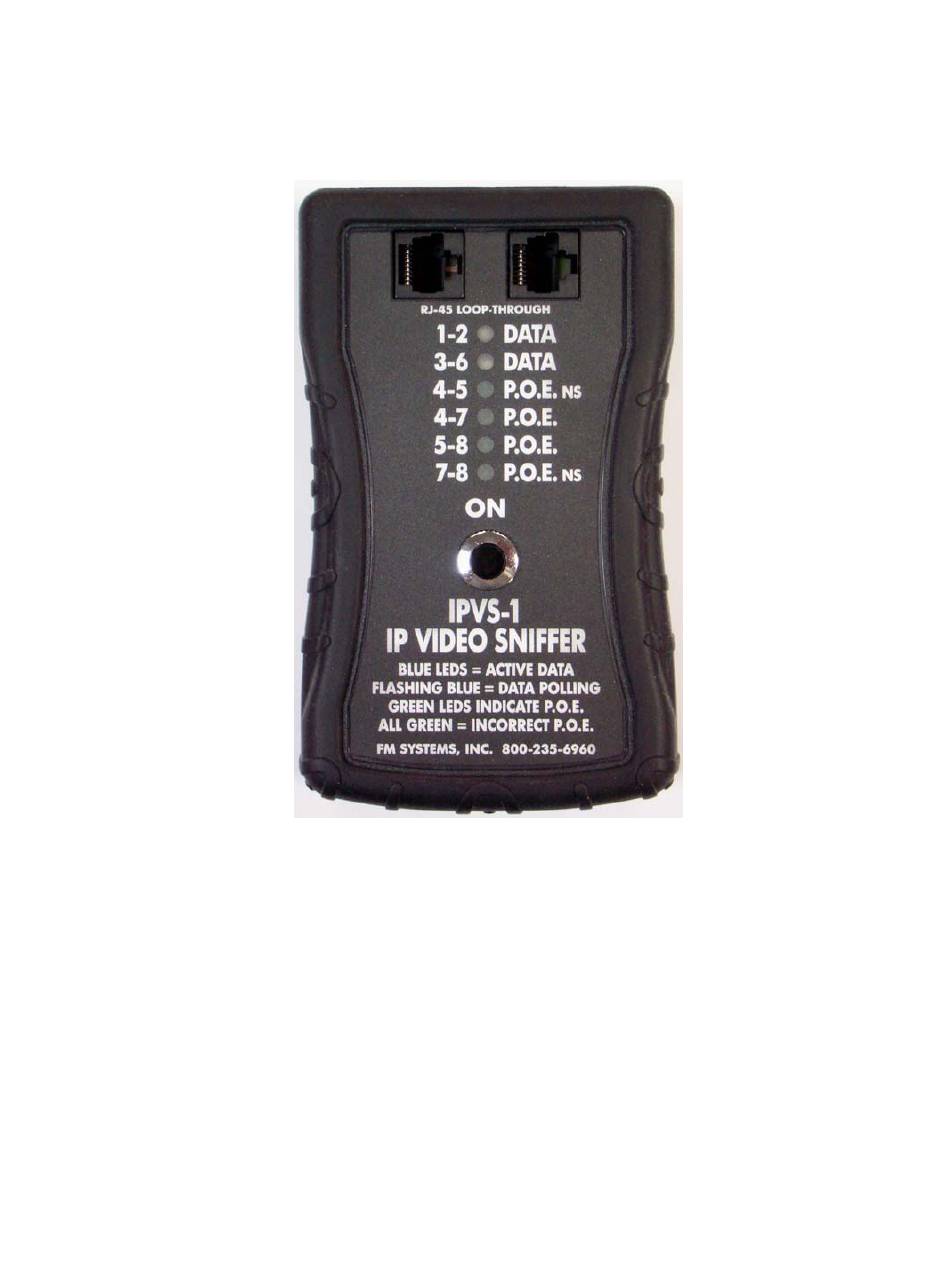

- Page 1 IPVS-1 IP VIDEO SNIFFER INSTRUCTION BOOK IB6441-01...
- Page 2 IPVS-1 IP VIDEO SNIFFER DESCRIPTION DISPLAY INDICATORS INPUT SIGNALS AND CONNECTORS CARE AND MAINTENANCE BATTERIES ENCLOSURE AUXILIARY EQUIPMENT IPVS-1isb PAGE 1 OF 3...

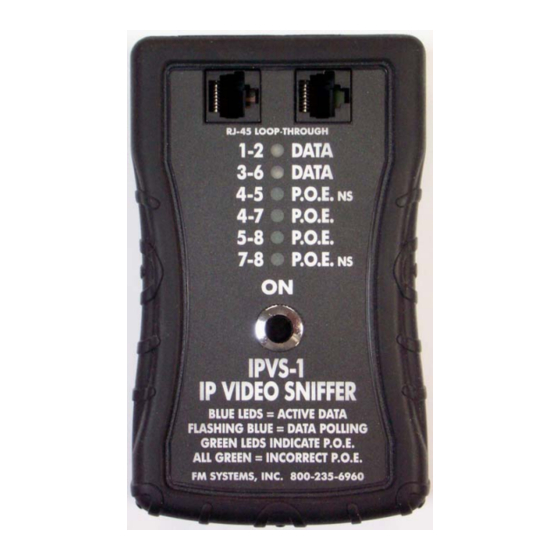

- Page 3 DESCRIPTION: The IP VIDEO SNIFFER is a hand-held meter used to check new installations and trouble shoot existing IP video installations. It instantly displays the communication status of both transmit and receive data lines and also indicates the status of Power Over Ethernet (P.O.E.) lines. The meter can be used with any 10Base-T or 100Base-T Ethernet IP video system using the two RJ- 45/8 loop-through connectors.
- Page 4 If the IPVS-1 fails to operate even after battery replacement, or does not read a known video signal correctly, call the factory for a Return Authorization Number and return it to the factory for repair.
