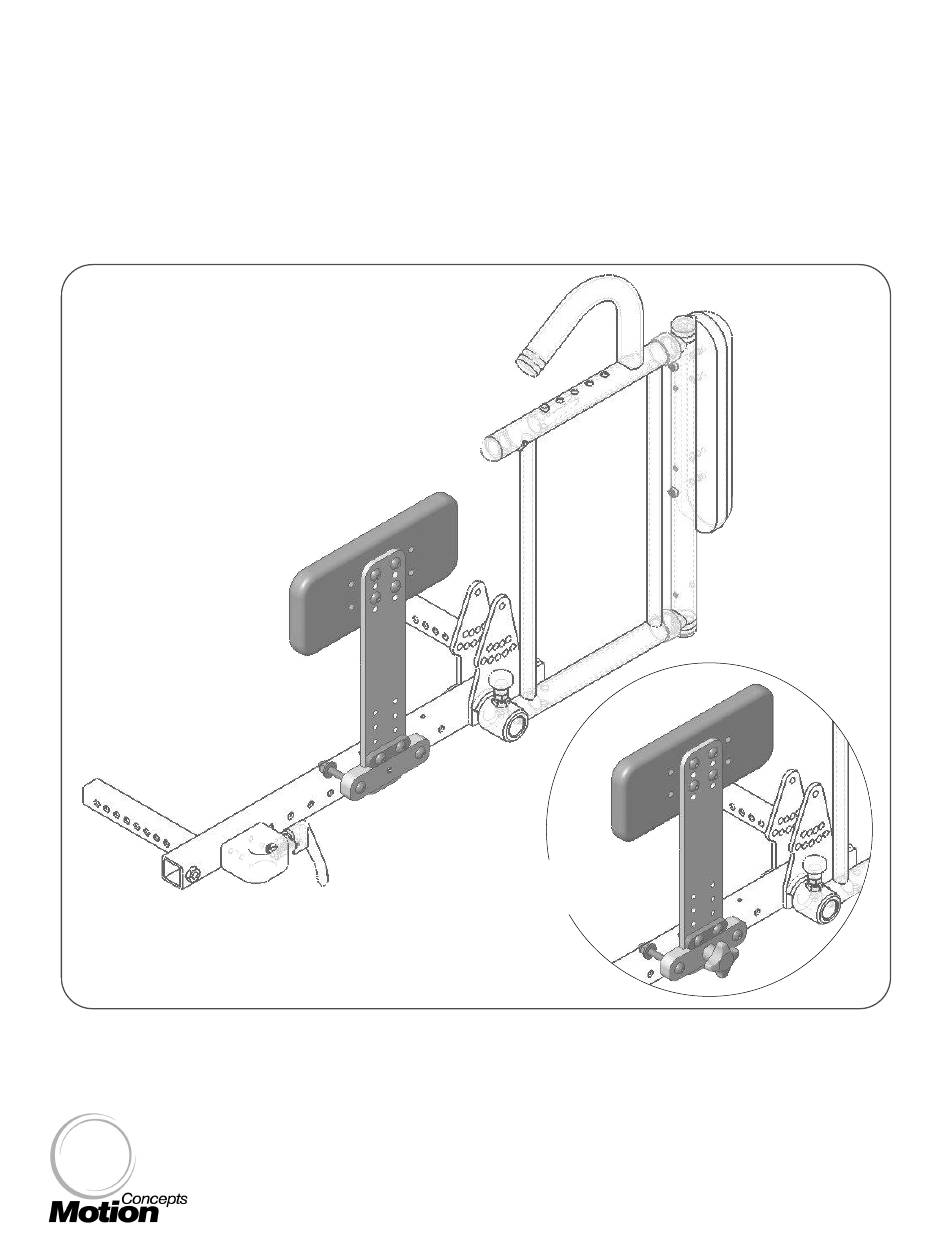

- Page 1 Lateral Hip Support Fixed Removable Hardware) with Lateral Hip Support- Fixed Assembly Lateral Hip Support- Removable Assembly (Note: assemblies diagrams are shown for left side only) & S NSTALLATION ANUAL TRD0255-01...
- Page 2 - 2 -...
-
Page 3: Overview Drawing
- 3 - 1.0 Overview Drawing Lateral Hip Support Assembly... -
Page 4: Installation And Adjustment
With the client seated in the chair, determine (approximate) the most desirable fore & aft mounting location for the Lateral Hip Support and select the nearest (existing) mounting holes the seat side frame. (note: the mounting bracket for the Hip Support is typically installed around the center of the seat side frame; Further height and depth adjustments are available via the upright bar and the hip pad). - Page 5 4. Secure the Lateral Hip Support Assembly into place on the seating system: i) for fixed hip supports: tighten the set-screw in the mounting bracket until it is snug up against the upright plate (refer to Figure 1.0).
- Page 6 84 Citation Drive, Units 1-7, Concord, Ontario, Canada L4K 3C1 Toll Free Tel: 1.866.748.7943 Fax: 905.695.0 700 Ensminger Rd. Suite 112, Tonawanda, New York, USA 14150 Toll Free Tel: 1.888.433.6818 Toll Free Fax: 1.888.433.6834...
