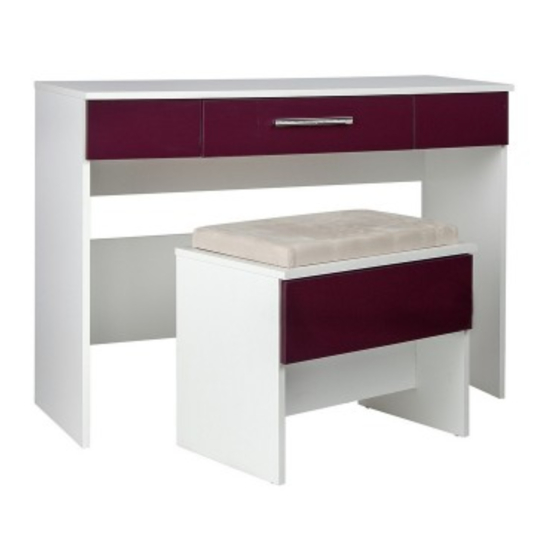

Sparkle - Dressing Table and Stool
Assembly Instructions -
Dimensions
Width - 100cm
Depth - 39.6cm
Height - 73.6cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
406/9803
397/8689
424/1470
MADE IN
BRITAIN
Issue 1 - 05/06/15
Advertisement
Related Manuals for SPARKLE 406/9803
Summary of Contents for SPARKLE 406/9803
- Page 1 Sparkle - Dressing Table and Stool Assembly Instructions - 406/9803 Please keep for future reference 397/8689 424/1470 Dimensions Width - 100cm Depth - 39.6cm MADE IN Height - 73.6cm BRITAIN Important - Please read these instructions fully before starting assembly...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 30kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Dressing Table Divider Left Fascia (DF3826) (DF3824) (24.2 x 12.5cm) (12.5 x 35.6cm) Rail Right Fascia...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 The Dressing Table will be built 1st Prepare the drawer front Screw 2 metal dowels into the drawer front Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Tap 2 wooden dowels into the left side Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Finished front edge Screw 4 metal dowels into the left side Note: Tighten the metal dowels up fully against...
-
Page 8: Modesty Panels
Assembly Instructions Step 10 Prepare the 2 modesty panels Tap 4 wooden dowels into each of the modesty panels Insert 4 large locking nuts into each of the Finished modesty panels edge Step 11 Join the 2 modesty panels to the left side Note: Support this modesty Push the 2 modesty until the right side has been... - Page 9 Assembly Instructions Step 12 Fit the right side Push the right side onto the 2 modesty panels Use a screwdriver to tighten the 2 large locking nuts fitted to each modesty Step 13 Prepare the rail Insert 2 large locking nuts into the rail Tap 2 wooden dowels...
- Page 10 Assembly Instructions Step 14 Prepare the left divider Place a runner 1 of the dividers , as shown. Slide back the Finished top of runner and use the front edge 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw...
- Page 11 Assembly Instructions Step 15 Prepare the right divider Place a runner the divider as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner Finished back the other way and front edge fit the 2nd screw into...
- Page 12 Assembly Instructions Step 16 Important: The runners must be on the inside Join the rail to the surface of the dividers. dividers Push the 2 dividers onto the rail Finished front edge Finished Use a screwdriver to front edge tighten the 2 large locking nuts fitted to the rail...
- Page 13 Assembly Instructions Step 19 Fit the sides to the Lower the left side and right side down onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to the left side and right side Step 20 Fit the fascia panels Position the holes on the back surface of the left...
- Page 14 Assembly Instructions Step 21 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Carefully stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 22 Fit the drawer Slide both the runners forward and locate the...
- Page 15 Assembly Instructions Step 23 Prepare the stool drawer front Screw 2 metal dowels into the stool drawer front Step 24 Prepare the stool drawer sides Insert a small locking into the hole shown on the stool left drawer side and stool right drawer side Note: Arrow on locking nut must point towards...
- Page 16 Assembly Instructions Step 26 Fit the stool drawer base Slide the stool drawer base down the grooves in the stool drawer sides and down into the groove in the stool drawer front Step 27 Fit the stool drawer back Fit the stool drawer back down onto the stool drawer base Make sure that the stool...
- Page 17 Assembly Instructions Step 29 Prepare the stool rails Insert 4 large locking nuts into each of the stool rails Step 30 Prepare the stool left side Place a runner onto the stool left side Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner...
- Page 18 Assembly Instructions Step 31 Prepare the stool right side Place a runner onto the stool right side . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 19 Assembly Instructions Step 32 Fit a stool rail to the stool left side Push a stool rail onto the stool left side Use a screwdriver to tighten the 2 large locking nuts fitted to the stool rail Step 33 Prepare the stool base Insert 4 large locking nuts...
- Page 20 Assembly Instructions Step 35 Fit the other stool rail Push the other stool rail onto the stool left side Use a screwdriver to tighten the 2 large locking nuts fitted to the stool rail Step 36 Fit the stool right side Push the stool right side onto the stool base and the 2 stool rails...
- Page 21 Assembly Instructions Step 38 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the stool sides and . Stand the stool up for the next step. Step 39 Prepare the stool top Screw 4 metal dowels into the stool top Step 40 Fit the stool seat pad...
- Page 22 Assembly Instructions Step 41 Fit the stool top Lower the stool top down onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the stool left side stool right side Step 42 Fit the stool drawer Slide both the runners forward and locate the drawer sides...
- Page 23 Assembly Instructions Step 43 Example Attach the Attach the Fit the overbalance Screw strap to the wall strap to the unit protector Washer Wall fixing Strap To prevent possible Strap (not supplied) overbalancing we Washer recommend that the dressing table is secured Screw to a suitable wall by use (not supplied)
- Page 24 ALR3200...
