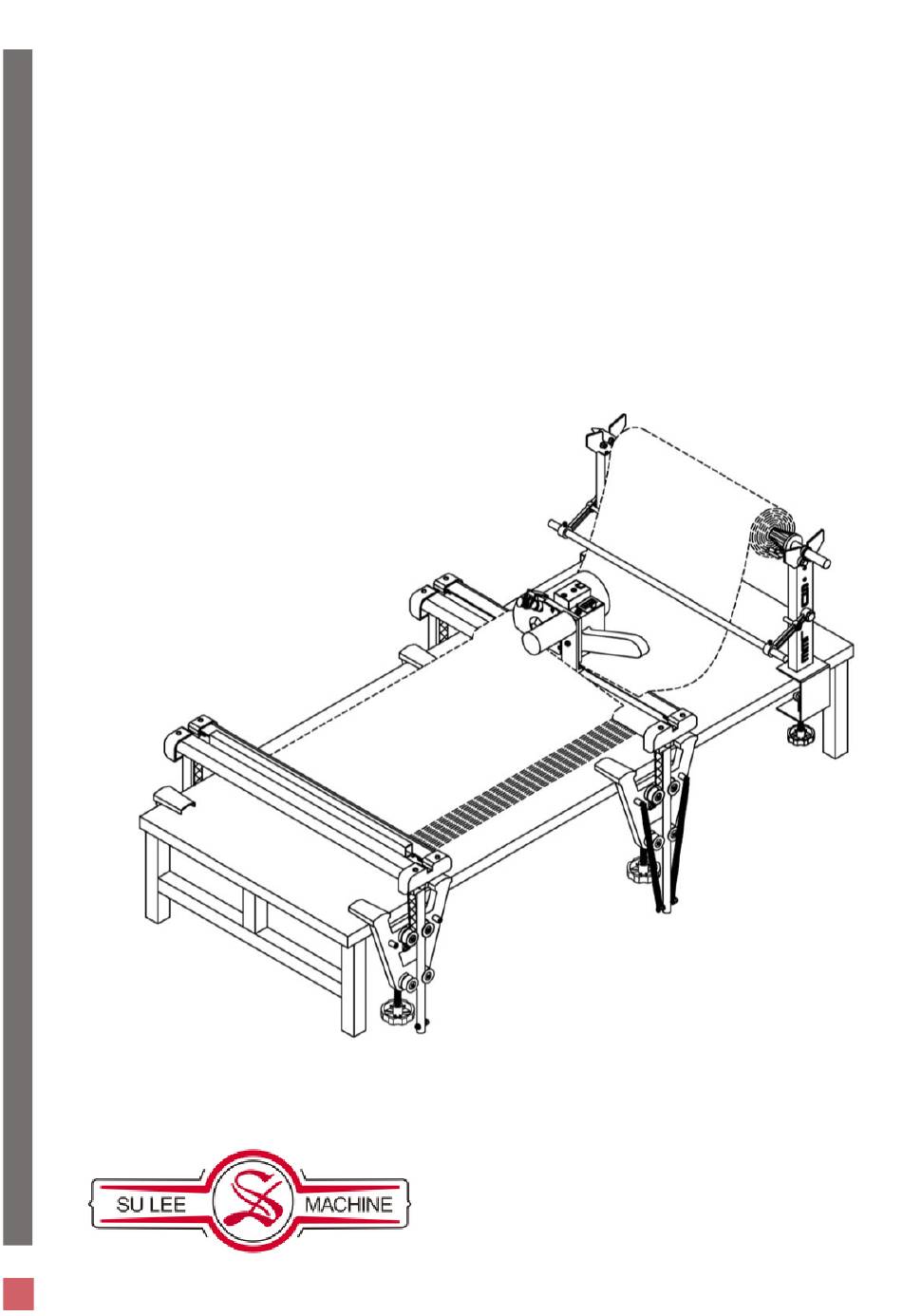

- Page 1 MODEL: ST-260/ST-360 SU LEE MACHINE INDUSTRIES INSTRUCTION AND PARTS MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE MANUAL AND FOLLOW SAFETY INSTRUCTIONS BEFORE OPERATING THE MACHINE. Keep the area of the machine clean and free from material waste. Do not disassemble the machine yourself. Take the machine to a qualified serviceman for repairs. -
Page 3: How To Operate The Machine
HOW TO OPERATE THE MACHINE 1. After complete installation of the machine and roll of cloth, grind the knife by pressing down the grinding stone for one second consecutively two times. Then, press the counter button to reset the counter. 2. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Align the Left Clamp Set (263946N-L) and Right Clamp Set (263946N-R) on the cutting table and secure both clamp sets by turning Big Screw (2645) shown in Figure 2.1. 2. Insert the Right Bar Lifter (264749N) into the Left Clamp Set wheels and the Left Bar Lifter (264750N) into the Right Clamp Set wheels from top to bottom. - Page 5 2652 523C1-101 2035 2655N-B1-2 2651-L 264750N 2651-R PWM822 SWM8 265359 NTM8 PRM0510 264750N 263946N-L 2660 2655N-B2-2 2655N 2648N 264749N 264749N 263946N-R SM0510 263946N-L 2644-A 263946N-L 2645 MODEL:ER-109 CLOTH PRESS (CHOICE EQUIPMENT) Figure 2.1 2648N SM0510 2640 2662 Figure 2.2 - 4 -...
-
Page 6: Machine Maintenance
滑油. 磨刀石的調整: 當刀片磨損時,將磨刀石螺絲放鬆,調整磨刀石位置,使砂輪與刀片的邊緣保持正確的接觸面, 在 將螺絲旋緊即可. 砂輪的更換請看圖解所示. 刀片的更換: 1.將前護片 2633 及刀片護蓋 2633C 取下. 2.使用內六角扳手 2667 插入刀片 孔內,使刀片卡鎖在馬達座 2609 上,不會轉動,再使用鎖刀扳手 2666 將鎖刀螺帽 2630N 依 反時針方向轉開. 3.取下刀片. 4.裝刀片時請確定刀片上印有“SU LEE ST-260”字樣的一面, 即正面朝向外面,人可看到. 5.每次更換刀片後,須將磨刀石 2626 重新調整至適當位置. 碳刷的更換: 1.碳刷磨損太多時,可能損壞馬達,當碳刷磨損到長度剩下 5~6MM 即可更換. 2.只須將碳刷蓋 S105 轉開即可取出舊碳刷,再將新碳刷置入,將碳刷蓋旋上即可. 3.通常更 換碳刷時,請將左右兩個同時更換. 4.裝入時,請確認碳刷有接觸在金屬整流子上,勿用手碰碳 刷. - Page 7 Reset key Press(short duration):ON/OFF Press(lang duration):Clear 2626 2607 S105 2667 2633 2666 2617 2633C PRM0306 2631 2630N PRM0306 -110 -110 360138 260138 -220 -220 SPECIFICATIONS: Knife Size :108mm(4 inches) Knife Shape :Round Cutting Capacity :10mm DOUBLE Voltage :Single Phase 100V~120V INSULATE or 220V~240V Cycle...
- Page 8 PRM0306 SWM5 NTMC6 SM0520 RM0508 3601N-AD 2634 3601N-SP NTM508 RM0625 2633C SM0630 2630N RM0408 SWM5 3601N-C1 2638 NTM508 SM0620 FOR ST-260 2631 2619N 2633 2609 PRM0306 -110 2602 -220 2606 2620 PWM5 2608 SWM5 PM0416 RM0535 -110 2601 -220 -110...
- Page 9 265359-7' 2655N-B1-2 2658-7' PRM0510 2657 2655N-B2-2 2662-7' FOR ST-360 2655N-A 2655N 2660 2649 PWM822 2648N SWM8 HM0825 NTM8 SWM8 2647-A PWM8 2647-BL 264750N 264749N 2650 263946N-R NTM508 2648N 2649 2650-A SWM6 RM0615 SM0510 2647-BR 2646 SM0510 2639N 2640 RM0630 2644-A 2641 NTM508 263946N-L...
- Page 10 MODEL:ER-109 2661-7' 2658-7' PRM0510 2662-7' 2655N 2648N HM0825 2660 2647-A SWM8 2649 PWM822 PWM8 SWM8 NTM8 2647-BL 264749N 264750N 2650 263946N-L NTM508 2648N 2649 2650-A SWM6 RM0615 2647-BR 2646 SM0510 2639N 2640 RM0630 2641 NTM508 263946N-L PWM6 2649 SWM6 NTM610 2645 - 9 -...
- Page 11 PART NO. PART NAME 零件名稱 PART NO. PART NAME 零件名稱 110V 馬達組 軌道護蓋 260110-110 110V Motor Assembly 2655N Rail Guard 220V 馬達組 短彈簧 260110-220 220V Motor Assembly 2655N-B2-2 Rail Short Spring 110V 切刀主機 長彈簧 260138-110 110V Cutter Head 2655N-B1-2 Rail Long Spring 220V 切刀主機...
- Page 12 T : +886-2-2892-7700 F : +886-2-2894-0855 E : sulee1@ms11.hinet.net W : www.sulee.com.tw A : No. 190 Huang Gang Road, Beitou District, Taipei, Taiwan 112 Copyright © 2018. SU LEE MACHINE INDUSTRIES CO., LTD. ALL RIGHTS RESERVED...
