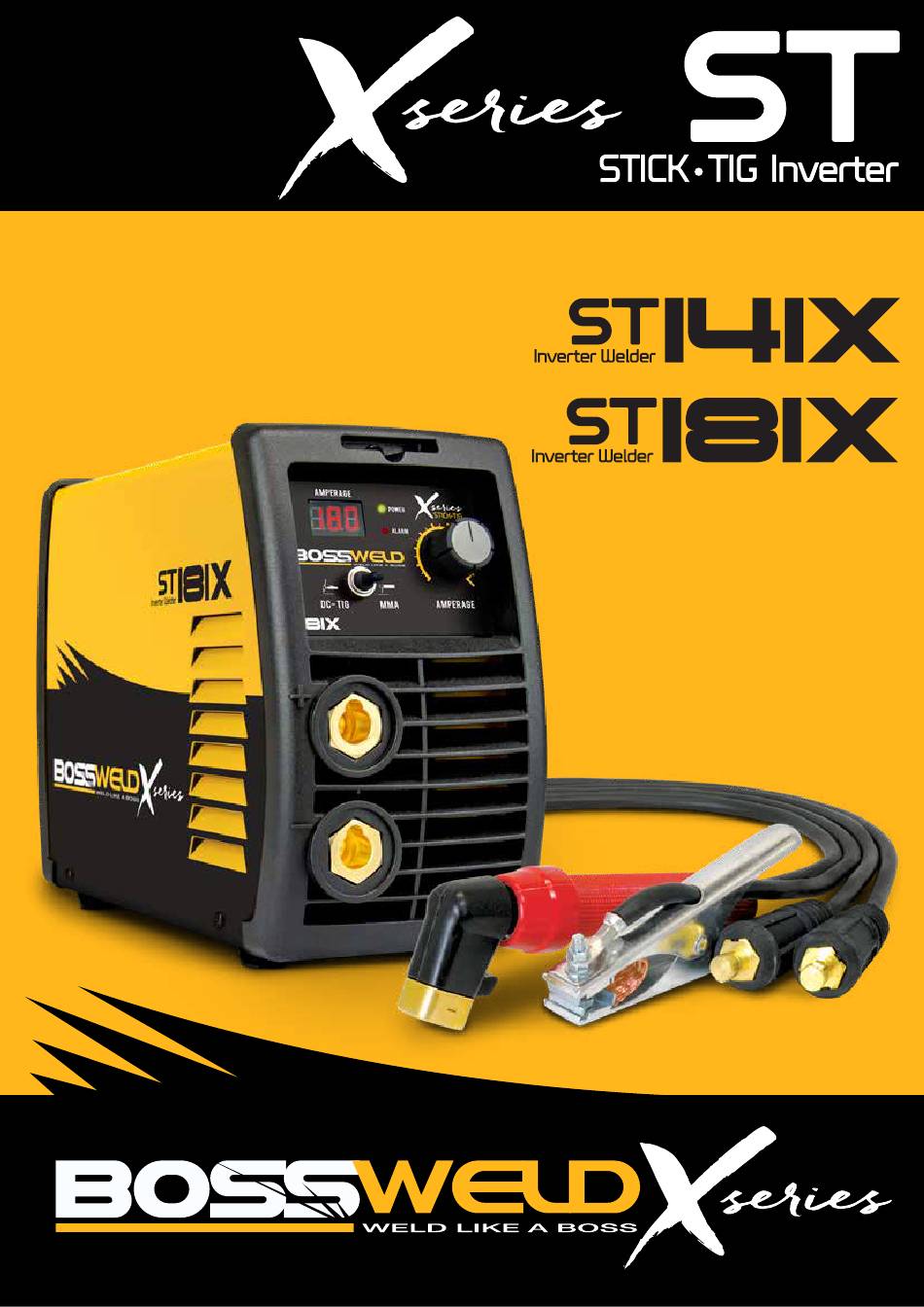

- Page 1 DC INVERTER MANUAL...

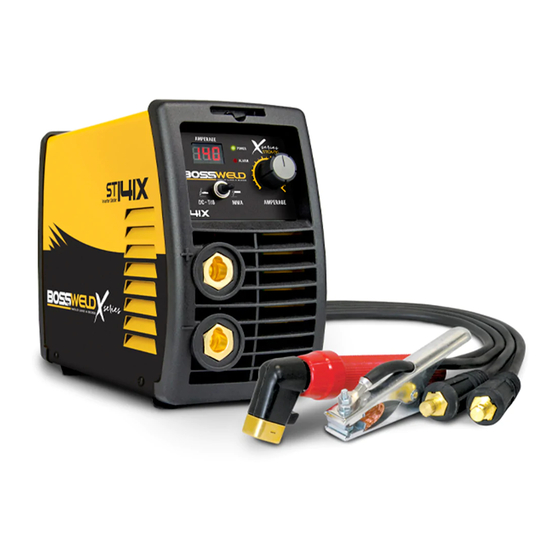

- Page 2 The BOSSWELD ST 141X / ST 181X are the latest in IGBT MMA Stick Electrode Welder technology, this very lightweight welding machine, is easy to use, generating a very smooth and stable output, ideal for welding jobs around the home, farm, workshop or on site.
-
Page 3: Table Of Contents
CONTENTS PAGE WARRANTY BOX CONTENTS WARNINGS MACHINE CARE / SAFETY INSTRUCTIONS WORK AREA SAFETY MAINTENANCE & DISPOSAL FRONT & REAR PANEL LAYOUT STICK / MMA WELDING SETUP 11-12 GENERAL MMA WELDING 13-14 TIG WELDING SETUP 15-16 LIFT ARC START TIG TORCH SPARES GENERAL TIG WELDING 19-20 TROUBLE SHOOTING... -
Page 4: Warranty
7. Use on Incorrect voltage or non authorised electrical connections and plugs 8. Use of non standard parts 9. Repair, case opening, tampering with, modifications to any part of the item by non authorised BOSSWELD repairers. This warranty covers the machine only and does not include Torches, Leads, Earth Clamps, Electrode holders, Plasma Torches, Tig Torches and any of the parts on those items unless there is a manufacturing fault. -
Page 5: Box Contents
BOSSWELD ST 141X / ST 181X Inverter DC MMA Arc Welder Box Contents BOSSWELD ST 141X or ST 181X Inverter DC MMA Arc Welder Electrode Holder Lead Welding Earth Lead Carry Strap Owners Manual (not shown) -
Page 6: Warnings
WARNING The device and packaging material are not toys! Children must not be allowed to play with the machine and its accessories. Plastic parts and packaging are choking risks for children. • Open the packaging and remove the welder carefully. •... -
Page 7: Machine Care / Safety Instructions
MACHINE CARE / SAFETY Keep the welding cables, earth clamp and electrode holder in good condition. Failure to do this can result in poor welding quality, which could be dangerous in structural situations. Prior to use, check for breakage of parts and any other conditions that may affect operation of the welder. Any part of the welder that is damaged should be carefully checked to determine whether it will perform its intended function whilst being safe for the operator. -
Page 8: Work Area Safety
WORK AREA Ensure a clear, well lit work area with unrestricted movement for the operator. The work area should be well ventilated, as welding emits fumes which can be dangerous. Always maintain easy access to the ON/OFF switch of the welder, and the electrical mains supply. Do not expose the welder to rain and do not operate in damp or wet locations Where welding must be undertaken in environments with increased risk of electric shock, confined spaces or in the presence of flammable or explosive materials, it is important that the environment be evaluated in advance... -
Page 9: Maintenance & Disposal
MAINTENANCE WARNING Before starting any cleaning, or maintenance procedures on the welding machine, make sure that it is switched OFF and disconnected from the mains supply. There are no user serviceable parts inside the welder. Refer to a qualified service personnel if any internal maintenance is required. -
Page 10: Front & Rear Panel Layout
5. Current Adjustment Knob 6. Positive Output Connection Socket 7. Negative Output Connection Socket REAR PANEL 8. Mains Power Switch 10Amp - ST 141X Mains Power Switch 15Amp - ST 181X 9. Cooling Fan 10. 240V AC Mains Power Cord... -
Page 11: Stick / Mma Welding Setup
MACHINE SET UP STICK / MMA Note: The below image shows setup for DCEP / Negative Polarity (Most Common application) 2. Connect Electrode holder to the terminal 2. Connect earth Clamp to the terminal Plug the machine 10Amp (EVO 141) or 15Amp Connect earth clamp firmly to work-piece (ST 181X) input power lead into the wall socket, ensuring that the clamp makes good contact... - Page 12 STARTING THE ARC (SCRATCH) The welding arc is obtained when the welding current is forced across a gap between the electrode tip and the workpiece. A welder must be able to strike and establish the correct arc easily and quickly. The scratching method is easier for beginners.
-
Page 13: General Mma Welding
TIPS • Keep the welding current as low as possible for the job at hand to maintain the best duty cycle from your welding machine, prevent the flux from burning and make slag removal easier. • To break the circuit withdraw the electrode from the work piece. Be careful with the end of the electrode, as it will be HOT. - Page 14 MANUAL METAL ARC PROCESS (MMA WELDING) When an arc is struck between the metal rod (electrode) and the workpiece, both the rod and workpiece surface melt to form a weld pool. Simultaneous melting of the flux coating on the rod will form gas and slag which protects the weld pool from the surrounding atmosphere.
-
Page 15: Tig Welding Setup
MACHINE SET UP TIG WELD 4. Connect the Argon Gas Regulator 7.Select TIG to the Gas bottle and connect the Gas Hose from the torch to the Input socket on the Regulator. Ensure the Gas regulator is in the off position. 2. - Page 16 We recommend that you close the cylinder valve when the machine is not in use. BOSSWELD authorised representatives or agents of BOSSWELD will not be liable or responsible for the loss of any gas.
-
Page 17: Lift Arc Start
LIFT ARC START With a small movement rotate the Gas Cup Lay the outside edge of the Gas Cup on the forward so that the Tungsten Electrode touch- work piece with the Tungsten Electrode es the work piece. 1- 2mm from the work piece. Now rotate the Gas Cup in the reverse Press the button on the TIG torch direction to lift the Tungsten electrode from the... -
Page 18: Tig Torch Spares
BOSSWELD 17 SERIES 150AMP TIG TORCH COMPLETE BACK CAP INSULATOR COLLET TORCH BODY PART NO. DESCRIPTION 95.17FV.4.1.DA50 Tig Torch 17 Valve, 4mt, 1 pc, Dinse 50 COLLET BODY GAS LENS COLLET BODY PART NO. DESCRIPTION 9957Y04 Back Cap Short ALUMINA CUP... -
Page 19: General Tig Welding
TUNGSTEN SELECTION / PREPARATION & GRINDING ELECTRODES Electrodes for DC welding are normally pure tungsten with 1 to 4% thoria to improve arc ignition. Alternative additives are lanthanum oxide and cerium oxide which are claimed to give superior performance (arc starting and lower electrode consumption). - Page 20 TIG WELDING - CONTINUED This risk can be minimised using the ‘lift arc’ technique where the short-circuit is formed at a very low current level. The most common way of starting the TIG arc is to use HF (High Frequency). HF consists of FLUX COATING high voltage sparks of several thousand volts which last for a few microseconds.
-
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Suggested Remedy Power indicator is not lit, 1. Check that the welder is plugged into the 240V mains outlet and is switched on. fan does not work and no 2. Check that the mains fuse or breaker has not operated. output current 3. - Page 22 CODE DESCRIPTION 700010 Bossweld 16”” Black & Gold Welding Glove Bossweld 16inch Welding Gloves Bossweld 16 inch welding gloves available in black and gold cow split leather. CODE DESCRIPTION 500086 Bossweld Professional Chipping Hammer 400 Grams Bossweld Professional Chipping Hammer...
- Page 23 CODE DESCRIPTION 600311 Bossweld Welder Trolley Universal Bossweld Universal Welders Trolley Multi purpose welder trolley that suits most Bossweld welding machines. Features • 45kg capacity • 3 storage levels • Sturdy formed steel construction • Cylinder holder accepts D and E size gas cylinders and comes with 2 safety chains •...
- Page 24 OTHER PRODUCTS IN OUR RANGE • ELECTRODES • MIG WIRE • TIG RODS • GAS EQUIPMENT • WELDING HELMETS • WELDING SAFETY • WELDING MACHINES • MIG TORCHES • TORCH SPARE PARTS • TIG TORCHES • WELDING ACCESSORIES • WELDING CABLE...
