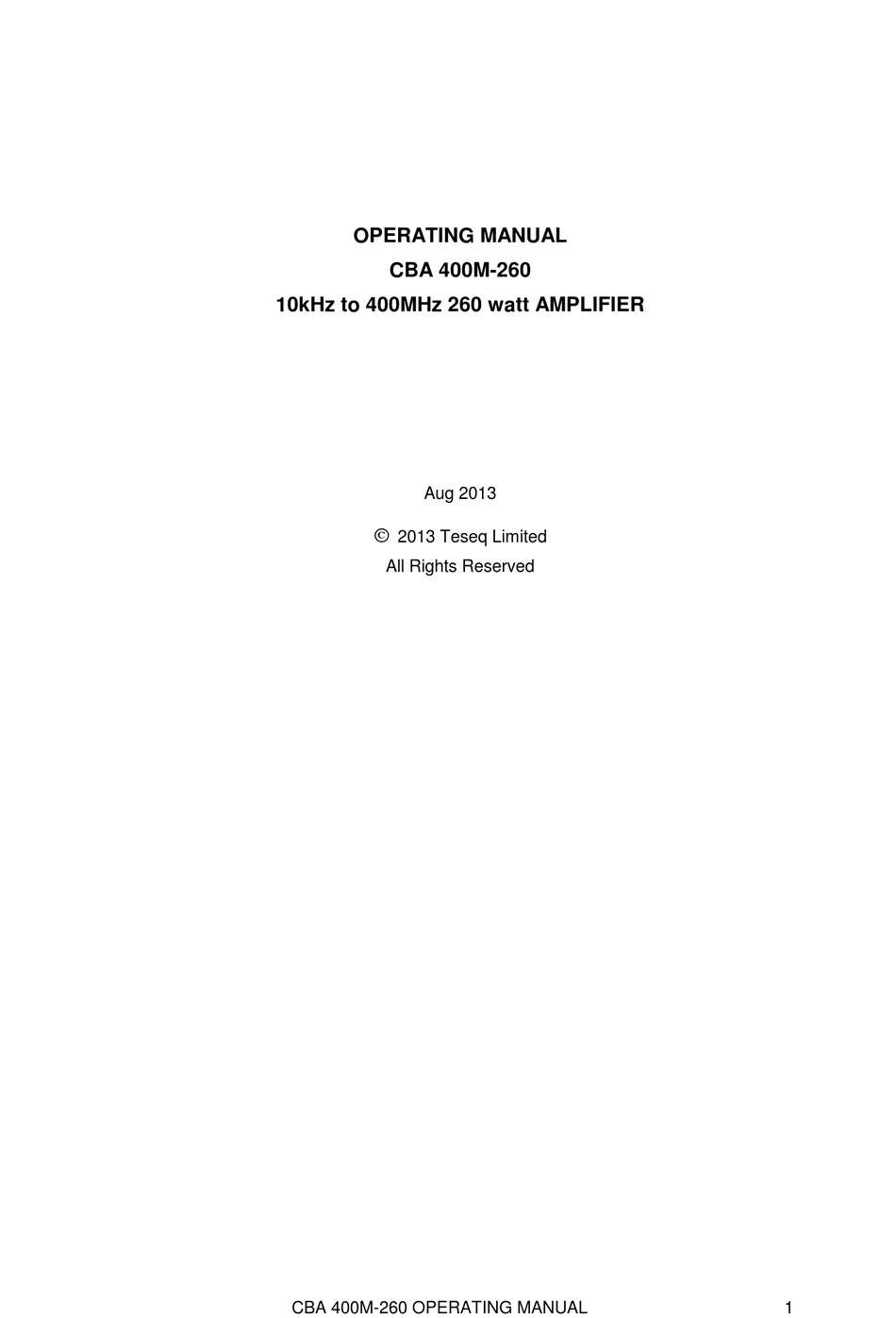

- Page 1 OPERATING MANUAL CBA 400M-260 10kHz to 400MHz 260 watt AMPLIFIER Aug 2013 2013 Teseq Limited All Rights Reserved CBA 400M-260 OPERATING MANUAL...
- Page 2 WARRANTY HARDWARE: Teseq Limited (The Company) warrants its amplifiers to be free from defects in workmanship and materials, under normal use and service, for three years from the date of purchase from The Company or its Authorised Agent. If a product does not operate as warranted during the warranty period, The Company shall, at its option, repair the defective product or part, deliver an equivalent product or part to replace the defective item, or refund the purchase price paid for the defective product.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION ........................4 SECTION 1 INTRODUCTION......................5 CBA 400M-260 INTRODUCTION ....................5 SECTION 2 UNPACKING AND INSTALLATION ................6 UNPACKING ........................... 6 INSTALLATION ..........................6 SECTION 3 OPERATION ......................7 FRONT PANEL ..........................7 REAR PANEL ..........................8 SECTION 4 SPECIFICATION ...................... -
Page 4: Safety Information
Make sure that only fuses of the required rated current and of the specified type are used for replacement. The use of makeshift fuses and the short-circuiting of fuse holders is prohibited. CBA 400M-260 OPERATING MANUAL... -
Page 5: Introduction
INTRODUCTION CBA 400M-260 INTRODUCTION The CBA 400M-260 is an amplifier capable of supplying 260 watts of RF power into a 50 ohm load over the frequency range 10kHz to 400MHz, during the course of EMC tests on electrical equipment. The amplifier is designed with sufficient gain such that it may be used with normal output levels of signal sources. -
Page 6: Unpacking And Installation
If any signs of damage are found, no attempt should be made to install the instrument, which should be returned to Teseq EMC Systems or their agent. If the shipping carton has been damaged, retain the shipping carton and packing material for the carrier's inspection. Check that the equipment is complete as in the packing list above. -
Page 7: Operation
The centre conductor of the RF output represents a severe burn hazard to personnel. AIR INLET The amplifier depends upon a free air supply for cooling. Ensure that the front air inlet is not restricted. CBA 400M-260 OPERATING MANUAL... -
Page 8: Rear Panel
85V ac. The fuse-holder is integral with this mains connector. Use fuse type T 15A H 250V. INPUT/OUTPUT CONNECTORS (depending on model) The RF input and output connectors may optionally be placed on the rear panel. CBA 400M-260 OPERATING MANUAL... -
Page 9: Specification
1 The third order intercept point is a nominal value, as its calculation depends upon the power level at which distortion measurements are made. 2 Output VSWR tolerance is specified for excitation within the permitted levels and frequency range. CBA 400M-260 OPERATING MANUAL...
