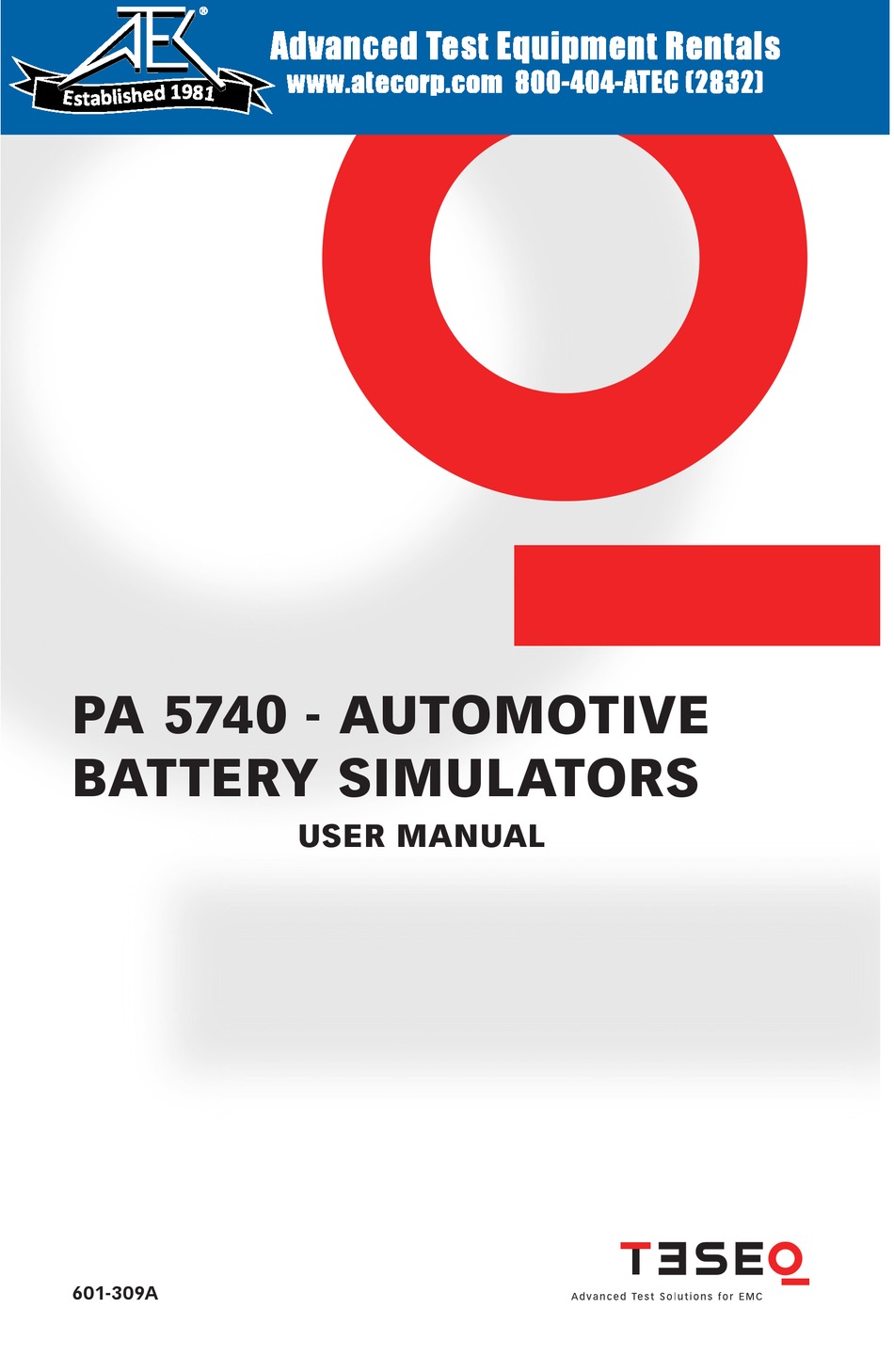

1
PA 5740 - Automotive
bAttery simulAtors
user mAnuAl
601-309A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA 5740 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teseq PA 5740

  • Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) PA 5740 - Automotive bAttery simulAtors user mAnuAl 601-309A...
  • Page 2 PA 5740 - Automotive bAttery simulAtors user mAnuAl PA 5740 - Automotive battery simulators...
  • Page 3: Table Of Contents

    Contents The PA 5740 Automotive battery simulator Introduction Features Safety instructions Danger classification Pictograms on Test System Excess voltage category Application area Safety of operation Operating personnel Persons responsible for safety measures Accident prevention regulations Infringement of safety regulations 2.10 Proper use...
  • Page 4 The current limit LED The errors LEDs Applications Compliant with ISO 7637 (and similar) for transient immunity Voltage variations for starting profiles Fast rise time for challenging voltage dip applications Voltage ripple and sine wave noise simulations Example application with NSG 5500 and NSG 5600 Maintenance Cleaning the equipment Moving and storing the amplifier...
  • Page 5: The Pa 5740 Automotive Battery Simulator

    1.1 Introduction The PA 5740 range of battery simulators is high performance power amplifi er providing a stable and rugged power source for laboratory applications. The amplifi er has been designed specifi cally to simulate battery supplies. Such as 12, 24 and 42 V vehicle electrical systems.
  • Page 6: Features

    There are three selectable ranges for compensation/bandwidth for the PA 5740. Bandwidths are high, allowing fast slew rates as required by numerous standards. The current limit is programmable from 10 to 100% of the output current capability.
  • Page 7: Safety Instructions

    2 sAFety instuCtions Be sure to observe the following safety precautions before you install the test system and put it into operation! Also follow all safety instructions in the manuals of the connected peripheral devices. NOTE! Always keep operating instructions for future use! Store the operating instructions so that they are always accessible to all operating personnel.
  • Page 8: Pictograms On Test System

    (pictograms) and signal words to the specific danger. Pictogramm Definition Possibly dangerous situation that can result in injuries and serious damage to the equipment. Situation that can result in damage to the equipment. PA 5740 - Automotive battery simulators...
  • Page 9: Excess Voltage Category

    2.3 Excess voltage category The test equipment PA 5740, as described in this manual, is related to the excess voltage category II according IEC 60664. 2.4 Application area These instructions apply to the entire system. Other safety regulations for com- ponents used or devices additionally installed in the test system are not voided by these instructions and are to be followed.
  • Page 10: Operating Personnel

    The test system should only be operated by qualified personnel. Making set- tings, maintenance work and repairs on an opened device can only be carried out by the appropriately trained personnel. Teseq and its representatives will only guarantee for maintenance and repair when it has been carried out by its own service personnel.
  • Page 11: Installation/Set-Up

    3.2.1 Standard accessories One power cable 3.2.2 Documentation The following manuals are supplied: This PA 5740 Automotive battery simulators hardware guide 3.3 Set-up CAUTION! Risk of damage by condensation! When the equipment is brought from cold to warm environment, a dangerous conditions can result from condensation.
  • Page 12: Operating Position

    The power cord of the equipment is located on the back of the equipment. The power input is secured with a delayed action fuse (for details, refer to chapter 5.3 Protection). The power plug and outlet must have grounding contacts. PA 5740 - Automotive battery simulators...
  • Page 13: Pa 5740 Front Panel Connectors

    NSG series. To benefit from all advantages of the PA 5740 it is best controlled by your NSG 5000 series. But of course if the specifications described in chapter 3.4.1.2 CONTROL input specifications are considered, the PA 5740 can be controlled by any other analog function generator as well.
  • Page 14 1-10 A. CAUTION! Risk of destruction by wrong voltage! If the PA 5740 is controlled by any alternative function generator it care has to be taken that the voltage at the Ilim+ pin must be at least +1 V.
  • Page 15: The Output Connectors

    3.4.2 The output connectors The output connectors of the PA 5740 series (front) The output connectors of the PA 5740 series (back) 3.4.2.1 The power output connectors The “POSITIVE/NEGATIVE POWER” connectors are used to connect the output to the DUT or to the NSG 5000 series.
  • Page 16: Operation

    Risk of destruction of the DUT or couplers! Monitor the DUT to ensure no ringing or excessive over- shoot is present. In case there is a question you should use the CAPACI- TIVE mode. PA 5740 - Automotive battery simulators...
  • Page 17: The Gain Button

    4.2 The system stop button This button toggles between the available gain options of the amplifier: GAIN HIGH (x7) Indicates a gain of seven. 1 V in will result in 7 V output voltage. GAIN LOW (x1) Indicates a gain of one. 1 V in will result in 1 V output voltage.
  • Page 18 Operation temperature. If the operation temperature returns to the safe range, the output will switch back on automatically. NOTE! LED test. During system power up the LEDs will be tested for approximately one second. PA 5740 - Automotive battery simulators...
  • Page 19: Applications

    The PA 5740 series is often used for starting profile simulation (pulse 4 and variants). In addition, several standards require synchronized starting profiles. Utilizing the NSG 5000 series for control, the PA 5740 (or the PA 5840) is the best solution for all known starting profiles with up to four synchronized starting profiles.
  • Page 20: Fast Rise Time For Challenging Voltage Dip Applications

    5.3 Fast rise time for challenging voltage dip applications Certain standards, such as Ford ES-XW7T-1A278-AC specify ~10 μs rise and fall times for the battery simulator. The PA 5740 is designed to fully meet the relevant standards and is often used for dips and drops applications where <10 μs rise times are specified.
  • Page 21: Example Application With Nsg 5500 And Nsg 5600

    5.5 Example application with NSG 5500 and NSG 5600...
  • Page 22: Maintenance

    The equipment must be stored in upright (working) position. Make sure the equip- ment is protected against humidity, dust and dirt. Observe the environmental conditions specified in chapter 7.1 Environmental conditions. PA 5740 - Automotive battery simulators...
  • Page 23: Protection

    6.3 Protection The PA 5740 Automotive battery simulators are protected with a slow-blow fuse. Dependent on the supply voltage a fuse with a different ampere rating is equipped: Type No of phases Supply voltage U Primary current I PA 5740-75 / 100 V 100 V 12.5 A...
  • Page 24 Carefully loosen the drawer from the input connector assembly using a screwdriver and turning it slightly in both directions as shown in the pictures below. Pull out the drawer from the input connector assembly. PA 5740 - Automotive battery simulators...
  • Page 25 Remove the defect fuse. Remove the defect fuse. CAUTION! Risk of destruction by wrong fuses! Use the following fuse types 5 x 20 mm, 6 A, time-lag...
  • Page 26 Push the drawer back in until it is fixed to the input connector assembly again. Now reconnect the PA 5740 to the mains. PA 5740 - Automotive battery simulators...
  • Page 27: Specifications

    Air pressure: 860 to 1060 hPa Protection class: IP20 7.2 Technical capabilities General PA 5740 Forward voltage gain (switchable) Bandwidth (-3 dB) DC to 40 kHz (standard) to 150 kHz (high freq) Overtemperature shutdown Thermal sensors trip at 80°C (warning) and 90°C (output shut off)
  • Page 28 1 x Connector 9-pole male D U prog prog Front panel Connector for output power 2 x 4 mm banana female Connector for output power 2 x 2 mm banana female sense Power switch 2 position OFF - ON PA 5740 - Automotive battery simulators...
  • Page 29 Rear panel Electrical fuse 6,3 A, 10 or 12,5 A Connector for line supply 1-phase socket Connector for output power 2 x 4 mm banana female Connector for output power 2 x 2 mm banana female sense Standard compliance Safety IEC 1010-1 EN 50082-1, EN 55011...
  • Page 30: Pictures

    7.3 Pictures 7.3.1 Front view 7.3.2 Rear view PA 5740 - Automotive battery simulators...
  • Page 31: Declaration Of Conformity (Ce)

    8 DeClArAtion oF ConFormity (Ce)
  • Page 32: Addresses

    T + 886 2 2917 8080 F + 886 2 2917 2626 F + 44 845 074 0656 uksales @ teseq.com taiwansales @ teseq.com © December 2010 Teseq ® Teseq Inc. Specifications subject to change T + 1 732 417 0501 without notice.
