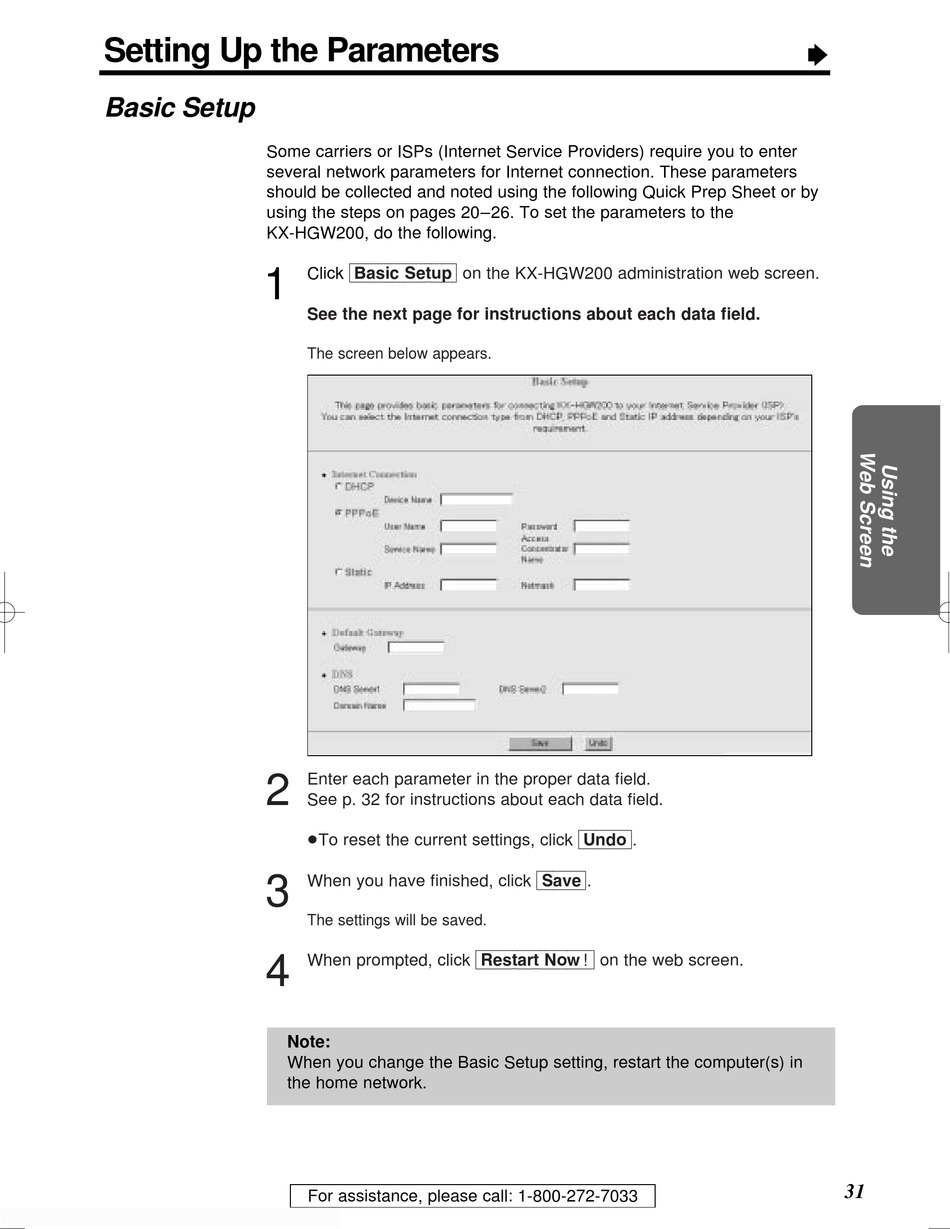

Setting Up The Parameters; Basic Setup - Panasonic KX-HGW200 Operating Instructions Manual

Setting Up the Parameters

Basic Setup

Some carriers or ISPs (Internet Service Providers) require you to enter
several network parameters for Internet connection. These parameters
should be collected and noted using the following Quick Prep Sheet or by
using the steps on pages 20–26. To set the parameters to the
KX-HGW200, do the following.
1
2
3
4
[Basic\Setup] on the KX-HGW200 administration web screen.
Click
See the next page for instructions about each data field.
The screen below appears.
Enter each parameter in the proper data field.
See p. 32 for instructions about each data field.
≥To reset the current settings, click [Undo].
When you have finished, click [Save].
The settings will be saved.
When prompted, click [Restart\Now ! \] on the web screen.
Note:
When you change the Basic Setup setting, restart the computer(s) in
the home network.
For assistance, please call: 1-800-272-7033
"
31
