THRUNITE TS2 Quick Start Manual

Guiding You Through The Night
TS2
说明书
（CHS）简体中文
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
广东省深圳市宝安区西乡宝源路168号
名优采购中心A栋640室
Guiding You Through The Night
TS2
User Manual
（EN）English
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
Room 640, Tower A,
NO.168 Baoyuan Road, Xixiang,
Baoan, Shenzhen 518102, China
TS2 21700 三合一生存灯
规格参数
灯珠类型
TS2 LED Bulb
配件
21700 可充电锂离子电池*1、 生存灯灯罩*1、硅胶电池套*1、一拖三充电线*1、磁吸挂钩*1
档位亮度
续航时间
电池参数：
· 容量：5000mAh；
· 尺寸：直径21.7mm，高度77.2mm；
· 充电电流1A，最大2A，充电周期500次；
· 电池用于其他产品供电时最大放电电流10A；
· 充电放电一体，可以为三种接口用电设备供电。
电池电量指示：
· 长按电池按键3秒检查电池电量，每个指示灯分别代表25%的电量。
· 当电池电量低且最后一个指示灯闪烁时，请尽快充电。
操作说明
LED灯安装：
使用前必须将 LED 灯罩与电池 USB-C 口对接，然后套上塑胶壳套，磁吸挂钩可以吸附于
塑胶壳套尾部。
LED灯开关：
单击开关点亮/关闭
模式切换：
· LED 灯打开后，长按侧面开关循环切换低-中-高模式。
· 在任何模式下双击进入 SOS ，单击关闭 LED 灯。
· 无记忆功能，关闭后再次点亮为低亮档
电池充电：
· 将 USB-C 端充电线插入电池端口，另一端连接电源，即可充电。
· 电池充电中指示灯闪烁，充满时4个指示灯常亮。
电池使用注意事项
安全使用说明
· 使用不当可能导致电池严重发热，甚至起火，爆炸！
· 为了避免给您人身，财产造成伤害，请严格遵守以下要求保存和使用本产品。
· 本产品不是玩具，请放置于儿童无法触及的位置，禁止给儿童使用或玩耍，以免发生
意外。
· 请务必选择符合当地安全标准的数据线为本电池充电，以防触电或导致电池损坏。
· 请勿重压，敲击本产品并避免使本产品发生严重跌落或者强烈震动，如发生这些情
况，或有液体渗入或溅入本产品内部，可能导致电池、电路损伤或短路，请立即停止使
用并妥善处理。
· 本产品发生膨胀、变形、漏液，容量明显下降等情况，请立即停止使用并妥善处理。
· 严禁拆解、挤压、穿刺，短路本产品或投入水、火中（包括靠近炉灶、暖气等热源）
或暴露于温度高于60°C的环境中。

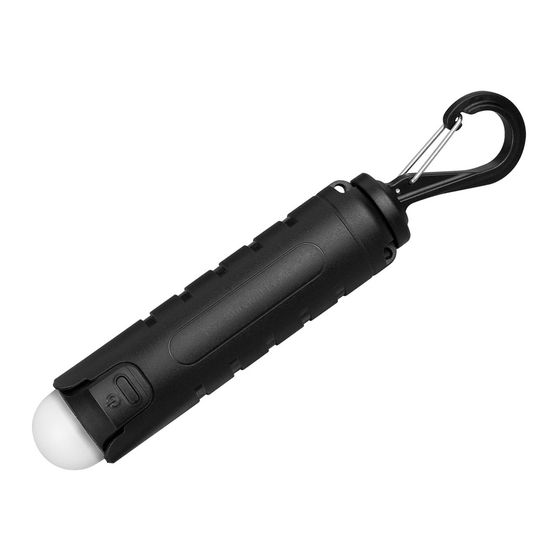

TS2 3-in-1 21700 Survival Light
Specifications
LED
TS2 LED Bulb
Accessories
21700 USB-C Rechargeable Lithium Battery*1, TS2 LED Bulb, Silicone Battery Cover*1, 3-in-1 Charging Cable*1, Magnetic Hook*1
Output 118 lumens
Run time
Battery Parameter:
It Integrates recharge and discharge functions which is
appropriate for Type-C, Micro-USB and Lightning ports.
· Capacity: 5000mAh
· Dimension: 21.7mm*77.2mm
· Recharging Current: 1A (Maximum Value:2A )
· Charge Cycle: 500 times
· Discharge Current: 10A(Maximum)
Power Level Display:
· Long press a button on battery for 3 seconds to check battery
power levels.
· Every indicator means 25% power.
· When the remaining power of the battery is low and the last green
light blinks. Please recharge it as soon as possible.
Operation
LED Light Bulb Installment:
· Insert LED light bulb to battery USB-C port.
· Put on the Silicone Battery Cover with the items above.
· Put Magnetic Hook on the Silicone Battery Cover tail.
LED Light Switch:
Press the side switch to turn the light on/off.
Change Modes:
· When the light is on, long press the side switch to cycle through low, medium and high.
· Double clicks to SOS from any modes then single click to turn off the light.
· No memory function, single click to low mode after turning off the light.
Battery Recharging:
· When the battery is inserted, use the USB-C charging cable to connect an external
power source to the flashlight to begin the charging process.
· During the charging process, the green indicators will blink to display the power level.
When the battery is fully charged, all 4 green indicators will be constant-on.
Safety Warnings
Improper use may cause battery failure, severe heat generation, fire or explosion! Avoid
to harm to your health and property, please following these strict requirements below:
· This product is not a toy. Please put it in a place where children cannot touch it.
· Please use the local standard cable to charge the battery. To prevent electric shock or
battery broken.
· Do Not Press or knock the battery to prevent strong vibrations. If it happens or liquid
leak into battery, it may cause the battery, circuit damage or short circuit. Please, stop
using the battery immediately.
· If the battery swollen, deformed, leakage or the extreme capacity reduction, stop using
immediately.
· Do Not disassemble, squeeze, pierce or short-circuit the battery. Do Not throw the
battery into water, fire(including but not limited stove, heater and other thermos-source).
· Do Not place the battery in an over 60℃ area.
机械参数
工作电压 材质
2.7V-4.2V
塑胶
ANSI/NEMA FL1参数
照明模式
高档 中档
118流明 40流明
11小时 30小时
电池充电指示操作：
充电
绿灯闪
Technical Parameters
Working Voltage Material
2.7V-4.2V Plastic
ANSI/NEMA FL1 Parameters
General Mode
High Medium
40 lumens
11 hrs 30 hrs
Recharging Operation:
Charging Green
Light Blinking
尺寸
31mm*103mm
低档
5流明
180小时
电池放电指示操作：
充满
长按3秒 放电中
绿灯常亮 松开显示电量 绿灯
电池放电功能：
USB-C 端连接电池后，另外一端接上 USB 设备，即可对设备进行充电。
指示灯显示电池电量，当只剩一个指示灯闪烁时，表示电池电量低。
产品使用注意事项：
· 初次使用时，建议充满电后使用。
· 产品 USB-C 口对接充电线时，注意水平对准插入。
· 请勿用湿手操作产品。
· 请勿将没有包装的电池放于口袋中。
· 充电时，应确保有人在场，外出或长时间离开时请拔除电源。
· 严禁将产品和电池放入水中或火中。
· 请远离儿童，防止误食。
保修条款
1. 2年免费包换：THRUNITE产品自出售之日起2年内，用户在正常使用情况
下，出现产品质量问题，则享受2年免费包换。
2. 30天无条件退款，邮费自理。
3. 终身有限保修：在超过2年免费包换时间外，THRUNITE公司将提供有偿保
修，费用以实际更换材料费用为准，不另收取人工费用。
Dimension
31mm*103mm
Low
5 lumens
180 hrs
Discharging Operation:
Full Charged Green
Long Press button Discharging:
Light Constant-on
on battery 3 Seconds Green Light
to display power levels
USB Output:
· When the battery is inserted, use the USB-C charging cable to connect a
USB device to the flashlight to begin the output process.
· During the output process, the green indicators will turn on constantly to
display the power level. The last green indicator will start to blink when the
power level is low.
Precautions for Battery Usage:
· The product is not fully charged. It recommends users to fully charge the
battery before the first time using.
· Please, insert cable with battery USB-C port horizontally.
· Do Not use the products with wet hands.
· Do Not incinerate, disassemble or declare the battery in fire.
· If the battery won't be used for a long time, please place the battery in a dry
and cool area to extend the battery life. Avoiding battery long-term storage in
a fully charged or no-power state.
· Do Not put battery without any package in your pocket.
· Keep the product away from children, prevent children from swallowing it.
Warranty:
1. 2-years free replacement: We will offer free replacement within 2 years of
purchase if problems develop with normal use.
2. 30-days refund by Amazon: You may return most new, unopened items sold
and fulfilled by Amazon within 30 days of delivery for a full refund.
3. Lifetime limited maintenance: As to those exceed 2 years of the purchase
date, we will still provide with maintenance service, but the cost of parts will be
charged and freight should be paid by customers.
重量
105g
SOS
118流明
20小时
放完电
指示灯不亮
Weight
105g
SOS
118 lumens
20 hrs
Out of Battery:
Green Light
