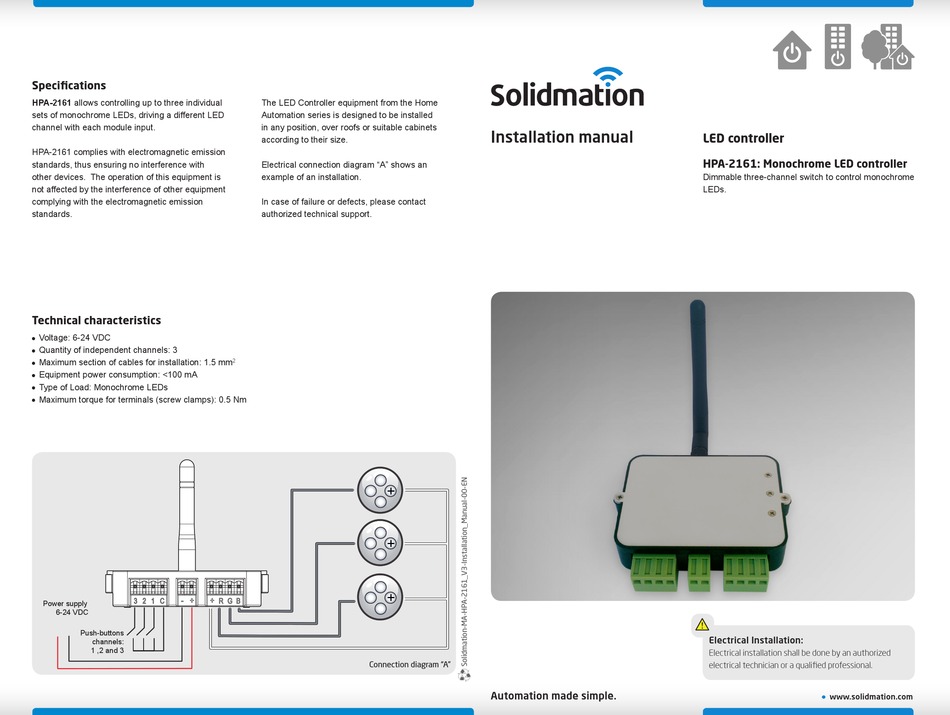

SOLIDMATION HPA-2161 Installation Manual

Specifications
HPA-2161 allows controlling up to three individual
sets of monochrome LEDs, driving a different LED
channel with each module input.
HPA-2161 complies with electromagnetic emission
standards, thus ensuring no interference with
other devices. The operation of this equipment is
not affected by the interference of other equipment
complying with the electromagnetic emission
standards.
Technical characteristics
Voltage: 6-24 VDC
l
Quantity of independent channels: 3
l
Maximum section of cables for installation: 1.5 mm
l
Equipment power consumption: <100 mA
l
Type of Load: Monochrome LEDs
l
Maximum torque for terminals (screw clamps): 0.5 Nm
l
Power supply
6-24 VDC
Push-buttons
channels:
1 ,2 and 3
The LED Controller equipment from the Home
Automation series is designed to be installed
in any position, over roofs or suitable cabinets
according to their size.
Electrical connection diagram "A" shows an
example of an installation.
In case of failure or defects, please contact
authorized technical support.
2
+
+
+
Connection diagram "A"
Installation manual
Automation made simple.
LED controller

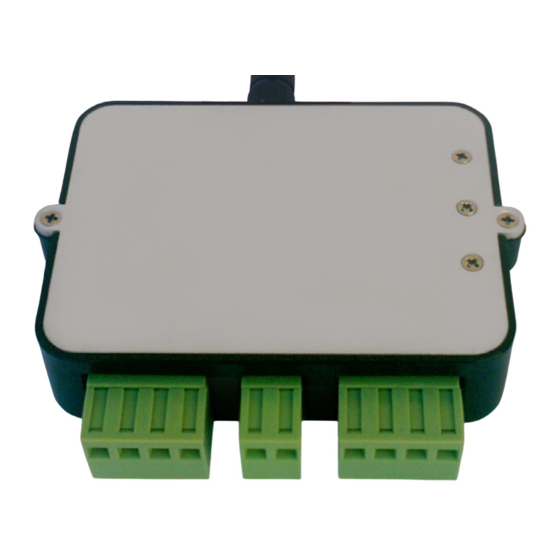

HPA-2161: Monochrome LED controller
Dimmable three-channel switch to control monochrome
LEDs.
Electrical Installation:
Electrical installation shall be done by an authorized
electrical technician or a qualified professional.
www.solidmation.com
