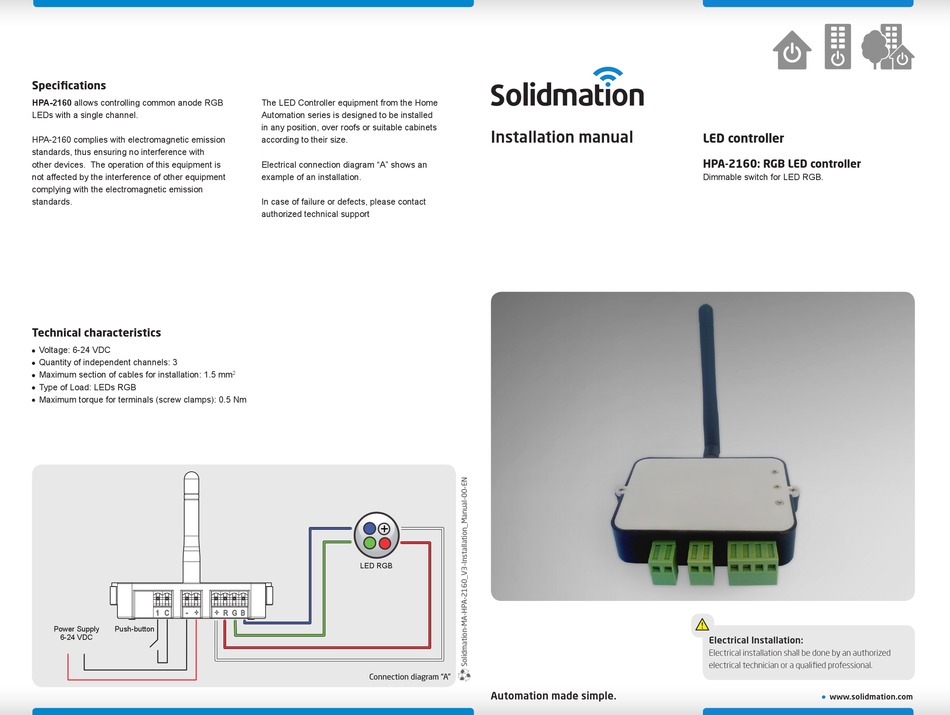

SOLIDMATION HPA-2160 Installation Manual

Specifications

HPA-2160 allows controlling common anode RGB
LEDs with a single channel.
HPA-2160 complies with electromagnetic emission
standards, thus ensuring no interference with
other devices. The operation of this equipment is
not affected by the interference of other equipment
complying with the electromagnetic emission
standards.

Technical characteristics

Voltage: 6-24 VDC
l
Quantity of independent channels: 3
l
Maximum section of cables for installation: 1.5 mm
l
Type of Load: LEDs RGB
l
Maximum torque for terminals (screw clamps): 0.5 Nm
l
Power Supply Push-button
6-24 VDC
The LED Controller equipment from the Home
Automation series is designed to be installed
in any position, over roofs or suitable cabinets
according to their size.
Electrical connection diagram "A" shows an
example of an installation.
In case of failure or defects, please contact
authorized technical support
2
+
LED RGB
Connection diagram "A"
Installation manual
Automation made simple.
LED controller
HPA-2160: RGB LED controller
Dimmable switch for LED RGB.
Electrical Installation:
Electrical installation shall be done by an authorized
electrical technician or a qualified professional.
www.solidmation.com
