Smart Switch 7 (ZW175)
Quickstart
This is a secure On/Off Power Switch for Europe. To run this device please connect it to your mains power
supply. This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in
order to fully use the security feature. This product can be included and operated in any Z-Wave network with
other Z-Wave certified devices from other manufacturers and/or other applications.
SmartStart Learn Mode:
1. SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present
on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart
product will be added automatically within 10 minutes of being switched on in the network vicinity.
2. Indicator Light will become flash white light for 1s indicating the product has been powered, and then become
flash blue light indicating SmartStart Learn Mode starts.
3.It will become constantly bright yellow light after being assigned a NodeID.
4. If Adding succeeds, it will bright blue light for 2s and become Load Indicator Mode.
5. If Adding fails, it will bright red light for 2s and turn back to breathing blue light and then start SmartStart Learn
Mode again.
Note: The label of QR Code on the product and package are used for SmartStart Inclusion.
The Z-Wave DSK Code is at bottom of the package. Please do not remove or damage them.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aeotec Smart Switch 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeon Labs Aeotec Smart Switch 7

Summary of Contents for Aeon Labs Aeotec Smart Switch 7

  • Page 1 Smart Switch 7 (ZW175) Quickstart This is a secure On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature.

  • Page 2: Important Safety Information

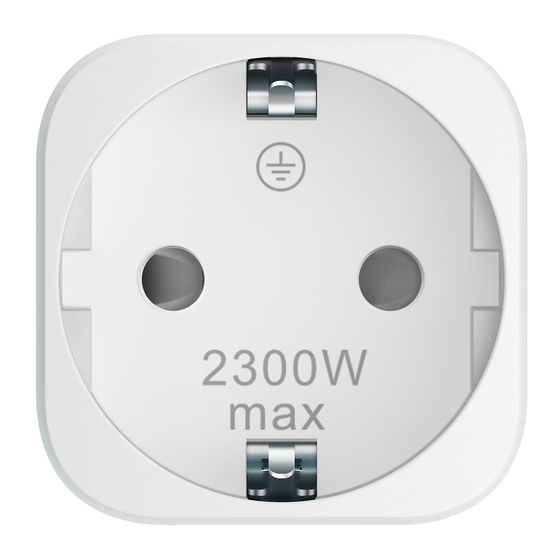

    For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info. Product Description The Aeotec Smart Switch 7 is an elegant appearance, small size, easy to use, Smart Plug. This supports power metering function, with high measurement accuracy, and more accurate knowledge of the power consumption of...

  • Page 3: Product Usage

    Safety Warning for Mains Powered Devices ATTENTION: only authorized technicians under consideration of the country-specific installation guidelines/norms may do works with mains power. Prior to the assembly of the product, the voltage network has to be switched off and ensured against re-switching. Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network.

  • Page 4: Quick Troubleshooting

    Good = green light for 2s. General = yellow light for 2s. Poor = red light for 2s. Press and hold Reset overload alarm and over Red LED flashes for 10 to 15 current Alarm seconds. Press and hold Stay in Z-Wave network, but factory Red LED Flashes faster.
  • Page 5 Setting Description Disable over-load protection 1 - 2415 Threshold power is 1-2145W Parameter 8: Alarm Response Enabled by (Alarm Settings), and determines what the switch does in the case an alarm is triggered.When receives any alarm enabled by Alarm Settings, Indicator Light will keep blinking based on Parameter 0x12 (18). It will prohibit user from manually or RF control the switch state until the alarm is disable.
  • Page 6 Parameter 18: LED blinking frequency When receiving the enable Alarm, it will flash according to the blink frequency configured by this parameter until the Alarm is disable. Brightness level and color is based on current indicator. If the value of brightness level and color is 0, it will flash based on last visible color.
  • Page 7 Setting Description 0 - 2147483647 Value1=Enable Hour, Value2=Enable Minute, Value3=Disable Hour, Value4=Disabale Minute Parameter 91: Threshold Power (W) for inducing automatic report. Threshold Power (W) for inducing automatic report. Size: 2 Byte, Default Value: 0 Setting Description Disable 1-2300W 1 - 2300 Parameter 92: Threshold Power Consumption (kWh) for inducing automatic report.

  • Page 8: Technical Data

    Setting Description 1431655765 Factory Reset: Restore the product to factory settings and remove from the network. Initialization: Initialize all configuration parameters to default values. Technical Data 42 x 42 x 70 mm Dimensions Weight 56 gr Hardware Platform ZM5101 1220000016415 IP Class IP 20 Voltage...

  • Page 9: Controlled Command Classes

     Basic  Clock  Configuration  Device Reset Locally  Firmware Update Md V4  Manufacturer Specific V2  Meter V4  Notification V4  Powerlevel  Protection V2  Scene Activation  Scene Actuator Conf  Security  Security 2 ...
