Heavy Duty Smart Switch Gen5 user guide.
Modified on: Mon, 24 Apr, 2017 at 11:31 AM
Aeotec by Aeon Labs Heavy Duty Smart Switch Gen5.
Heavy Duty Smart Switch Gen5
using Z-Wave Plus
(http://aeotec.com/z-wave-plus)
technology.
To see whether Heavy Duty Smart Switch Gen5 is known to be compatible with your Z-Wave system or not, please
reference our
Z-Wave gateway comparison
Heavy Duty Smart Switch Gen5
technical-specifications-)
Familiarize yourself with your Heavy Duty Smart Switch Gen5.

Package Contents:

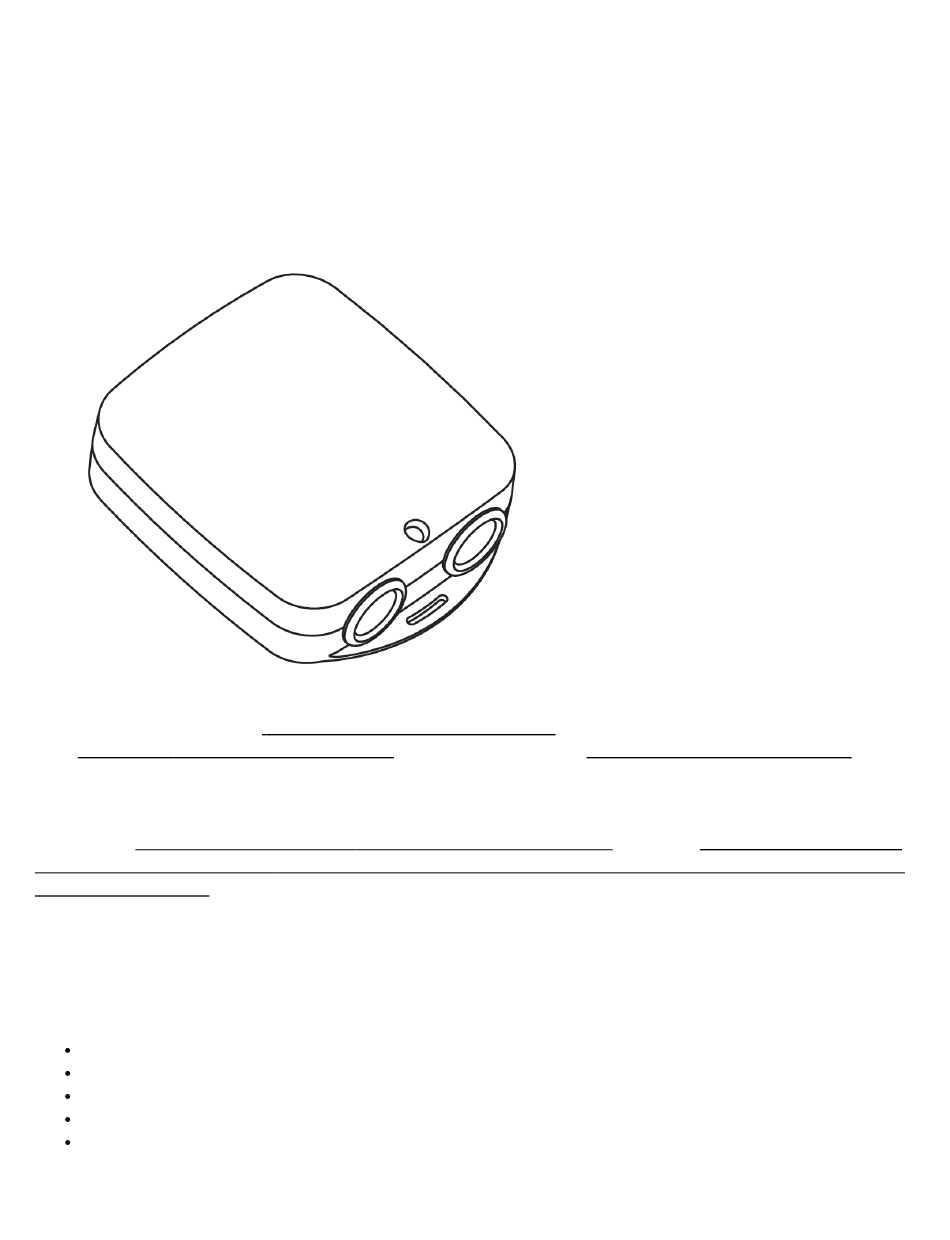

Heavy Duty Smart Switch Gen5
8AWG Wire terminal (x8)
10AWG Wire terminal (x8)
Screws (x2)
Instruction Manual
https://aeotec.freshdesk.com/support/solutions/articles/6000161813-heavy-duty-smart-switch-gen5-user-guide-
Heavy Duty Smart Switch Gen5 user guide. : Aeotec by Aeon Labs
(http://aeotec.com/z-wave-plug-in-switch)
(http://aeotec.com/z-wave-gateways)
(https://aeotec.freshdesk.com/solution/articles/6000167191-heavy-duty-smart-switch-gen5-
can be viewed at that link.
has been crafted to power connected lighting
. It is powered by Aeotec's Gen5
(http://aeotec.com/z-wave-gen5)
listing. The technical specifications of
