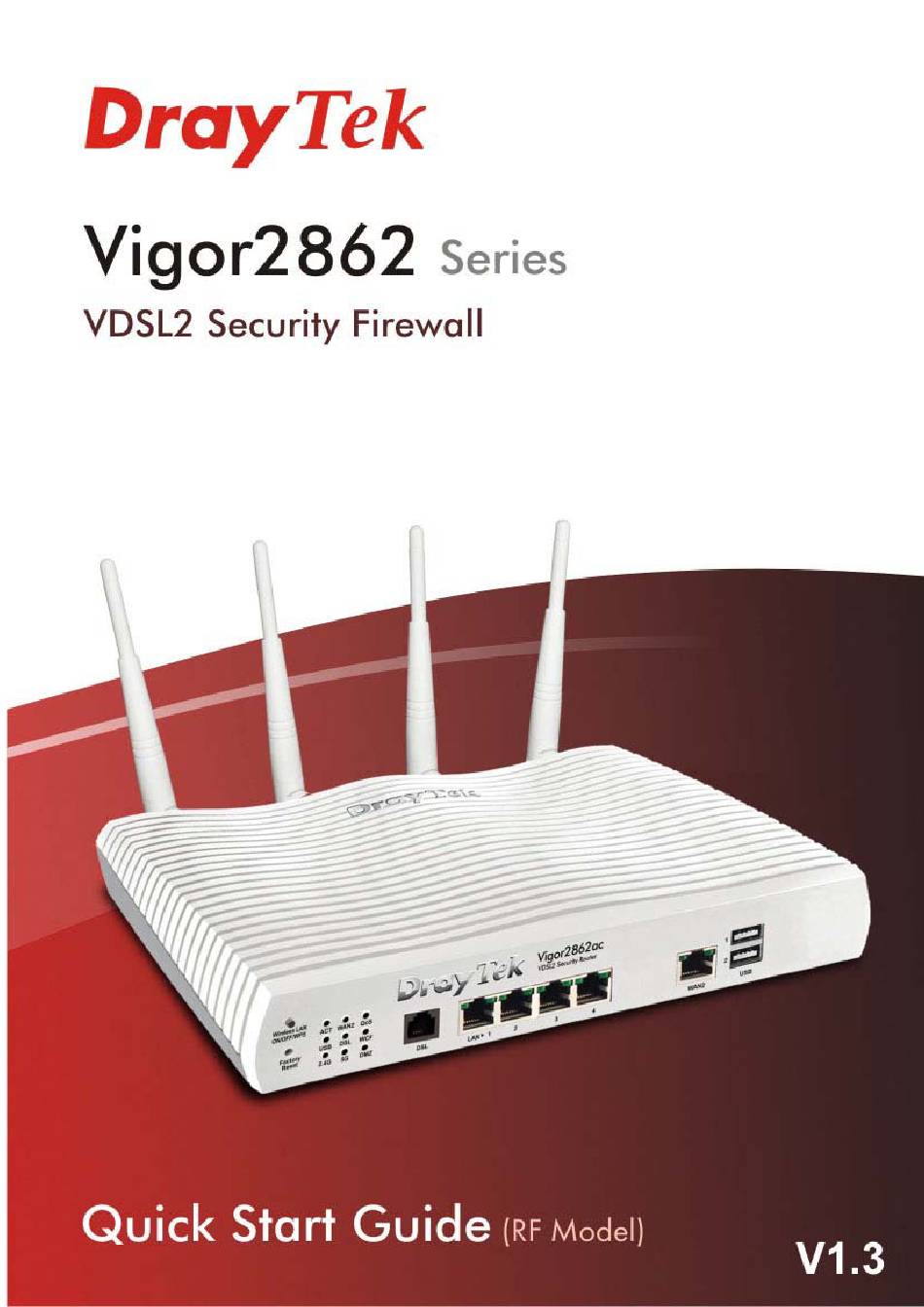

- Page 2 Vigor2862 Series VDSL2 Security Firewall Quick Start Guide (for RF Model) Version: 1.3 Firmware Version: V3.8.8 (For future update, please visit DrayTek web site) Date: March 6, 2018...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
- Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2862 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://www.draytek.com.tw/ftp/Vigor2862/Document/CE/ Manufacturer: DrayTek Corp. Address: No.
- Page 5 The antenna/transmitter should be kept at least 20 cm away from human body. DrayTek Vigor2862 series VDSL2/ADSL2+ routers are compliant with 47 C.F.R. Part 68. More update, please visit www.draytek.com.
- Page 6 Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and...
-
Page 7: Table Of Contents
1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 3.1 Vigor2862L ..........................3 3.2 Vigor2862n / Vigor2862ac / Vigor2862Bn / Vigor2862Ln / Vigor2862Lac........... 5 3.3 Vigor2862Vac ..........................9 3.4 Notes for Antenna Installation (for “L” model) ................11 3.5 Notes for Y Cable Application.................... -
Page 8: Introduction
Vigor2862 series is a VDSL2 router with multi-subnet for secure and efficient workgroup management. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the performance of VPN greatly and offers several protocols (such as IPSec/PPTP/L2TP) with up to 32 VPN tunnels. -
Page 9: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router & Quick Start Guide Antenna + Socket (L models) RJ-45 to RJ-45 Cable RJ-11 to RJ-45 Cable (Annex B) -
Page 10: Panel Explanation
Status Explanation ACT (Activity) The router is powered off. Blinking The router is powered on and running normally. WAN2 Internet connection is ready. Internet connection is not ready. Blinking The data is transmitting. The QoS function is active. The QoS function is inactive. LTE device is connected and ready for use. - Page 11 Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. The port is disconnected. WAN2 Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps The port “P5 / WAN2”...
-

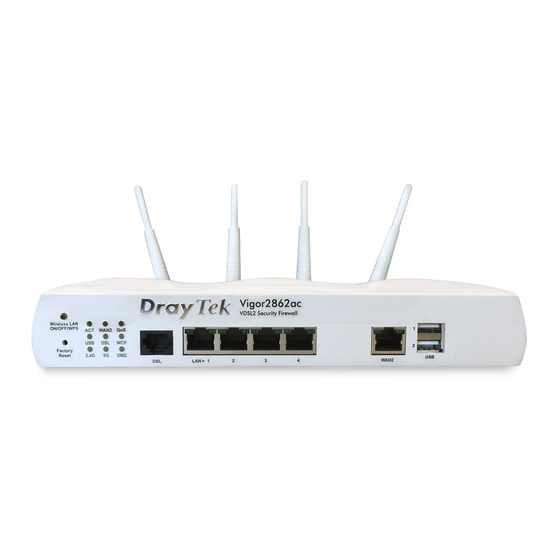

Page 12: Vigor2862N / Vigor2862Ac / Vigor2862Bn / Vigor2862Ln / Vigor2862Lac
Status Explanation ACT (Activity) The router is powered off. Blinking The router is powered on and running normally. WAN2 Internet connection is ready. Internet connection is not ready. Blinking The data is transmitting. The QoS function is active. The QoS function is inactive. LTE device is connected and ready for use. - Page 13 DSL / DSL 1/2 The router is ready to access Internet through DSL link. Blinking Slowly: The DSL connection is ready. Quickly: The connection is training. The Web Content Filter is active. (It is enabled from Firewall >> General Setup). WCF is disabled.
- Page 14 Switch on Rear Side (Available for Vigor2862Ln/Lac) Interface Description Wireless LAN For Vigor2862n /Vigor2862Bn: ON/OFF/WPS Press the button and release it within 2 seconds. When the wireless function is ready, the green LED will be on. Press the button and release it within 2 seconds to turn off the WLAN function.
- Page 15 twice. 2.4G (Off) and 5G (Off) – pressed and released the button three times. When WPS function is enabled by web user interface, press this button for more than 2 seconds to wait for client’s device making network connection through WPS. Factory Reset Restore the default settings.
-
Page 16: Vigor2862Vac
Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. WAN2 Internet connection is ready. Internet connection is not ready. Blinking The data is transmitting. - Page 17 Interface Description Wireless LAN Wireless band will be switched /changed according to the ON/OFF/WPS button pressed and released. For example, 2.4G (On) and 5G (On) – in default. 2.4G (Off) and 5G (On) – pressed and released the button once.
-
Page 18: Notes For Antenna Installation (For "L" Model)
“ ” “ ” Magnetic antenna must be installed on the extension base before connecting to Vigor router. Extension Base There are two mounting holes for installing antennas with extension base on Vigor router. Please install them as shown below. Major Signal Transmitted Hole SIM Card... - Page 19 While installing the SIM card into the card slot, note that back plate of the SIM card slot must be removed first and the direction of card notch must be on the left side. There are two types of antennas provided for Vigor2862Ln/Vigor2862Lac, which must be installed in different locations carefully and correctly.
-
Page 20: Notes For Y Cable Application
Y cable is prepared for the one who applies bonding VDSL service (two lines or one line) to ISP for enhancing the transmission rate and enlarging the bandwidth. However, the following conditions shall be considered first while installing the DSL line(s) on to Vigor router. DSL1/2 Condition 1: When the connector of... -
Page 21: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. (For the hardware connection, we take “ac” model as an example.) Connect the DSL interface to the land line jack with a DSL line cable, or Connect the cable Modem/DSL Modem/Media Converter to the WAN port of router with Ethernet cable (RJ-45). -
Page 22: Wall-Mounted Installation
Vigor router has keyhole type mounting slots on the underside. A template is provided on the Vigor router packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction. -
Page 23: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly. Note You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same... - Page 24 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. If your router can be under an environment with high speed NAT, the configuration provide here can help you to deploy and use the router quickly. The first screen of Quick Start Wizard is entering login password.
- Page 25 On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3 or WAN4. Then click Next for next step.
- Page 26 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. After finished the above settings, simply click Next.
- Page 27 Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
- Page 28 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
-
Page 29: Customer Service
If the router cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
