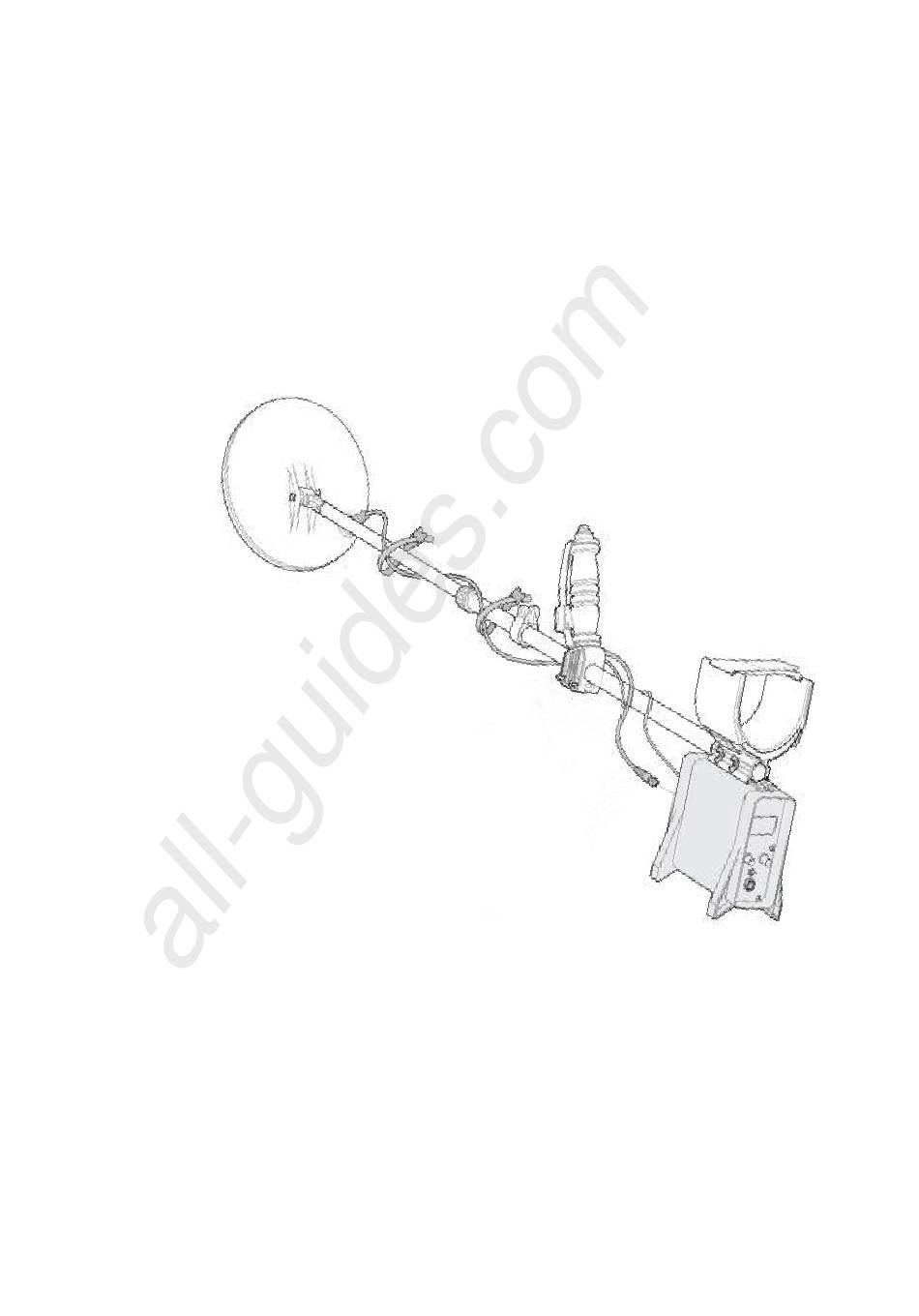

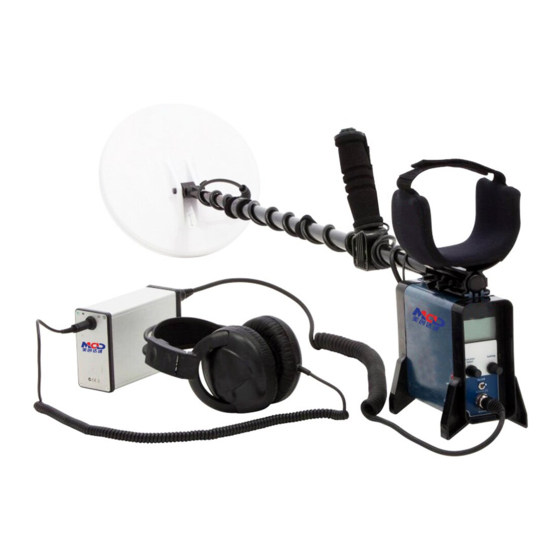

- Page 1 All manuals and user guides at all-guides.com Underground Gold Detector Instruction Manual Model：MCD-5000B Before using the product,Please read manual carefully.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Catalog Catalog… … … … … … … … … … … … … … … … … … … … 1 Product Instruction… … … … … … … … … … … … … … … 2 Main Feature …... -
Page 3: Product Instruction
Thank you for purchasing the product!With an amazing range of features and functions the MCD-5000B is not only superior to its predecessor.the high performance MCD-5000B is capable of finding more gold than ever before. From sub-gram nuggets to the elusive 'retirement nugget' and everything in between, with the MCD-5000B, you can find it.In addition, The most prominent characteristics is... -
Page 4: Assembly
All manuals and user guides at all-guides.com Assembly Step ： A 1. Plug the two rubber was hers into the holes on either side of the lo wer shaft. 2. Ensure that the spring loaded pin of the lower shaft is pointing downwards.Slide the lower shaft into the bracket on the top of th e coil. - Page 5 All manuals and user guides at all-guides.com Step ： C Attaching the Handle to the Upper Shaft: Slide the handle onto the upper shaft so that it angles away fro m you,as shown below. Attaching the Armrest to the Upper Shaft: 1.
- Page 6 All manuals and user guides at all-guides.com Step: E Connecting the Control Box to the Upper Shaft: 1.Place the detector on a flat surface,with the handle facing upwards. 2.Position the armrest on top of the control box. 3.Clip the control box onto the armrest,ensuring the battery plug faces away from the coil.
- Page 7 All manuals and user guides at all-guides.com Step: G Connecting the Battery Pack: 1.Place the battery into the battery harness pouch. 2.Connect the headphones and the power cable to the appropriate sockets in the battery. Fitting the Battery Harness: 1. Thread your arms through the harness ,so the battery pack sits on your back.
-
Page 8: Control Panel Instruction
1. Assembling machine well,Press the On/Off switch down and release to turn detector on. 2. And then come out MCD-5000B Menu Structure by LCD.Many functions are accessed through the LCD Menu. Note,In LCD Menu Structure.We added Work Mode(GND Balance and Discri Mode).You can set as your requirement.Ensure all setting are saved after finishing... -
Page 9: Detection Tips
Detecting Tips: Follow these hints and techniques to help you to utilise the power of you MCD Series detector,to ensure th at every trip is a success. Identifying Target Signals *Metallic targets will usually give a “solid ” sounding signal when th e coil is swept across the object from any direction.A metallic target... - Page 10 Ground Balance around th e target,without going across it,Then switch to Fixed and try Pinpointing. *Dig all target signals,even in previously detected areas.The MCD Series have superior ground balancing and depth so it is pos sible to find new targets in well-worked areas where other detectors have been unable to cope with the high degree of mineralisation an/or salt.
-
Page 11: After-Sale Service
Note:The MCD Series are ‘motion ’detectors.This means th e coil mu st be mo ving the target,or the target mov ing over the coil,in order fro m the detector to ‘see ’it. -
Page 12: Special Declaration
All manuals and user guides at all-guides.com companies, unless obtaining the written agreement of the company. Special Declaration: We reserve rights that our product manual update and modify.If any change,Without prior notice. Old battery must be to deal with in according with local law or rules . Technical Parameters ：...
